Architectural Decorative Wire Mesh: The Global Engineering & Procurement Guide to Specifying Woven Metal Fabrics for Façades, Interiors, and Tensile Cladding

Architectural decorative wire mesh engineered with flexible vertical cables and horizontal rigid cross-rods distributes wind kinetic pressure across the entire structural elevation. Ambani Metals integrates pre-engineered bottom tensioning springs and heavy-duty clevis fork turnbuckles into the mounting brackets. These coil springs dynamically absorb gust shock waves, cyclic wind vibration, and building thermal contraction/expansion without imparting excessive strain onto the primary structural slab. Finite element wind tunnel data and static load calculations can be provided for local building code verification.

Woven metallic fabrics manufactured from AISI 304, 316, 316L stainless steel, brass, or architectural bronze are inherently 100% non-combustible. They achieve Class A1 fire reaction ratings according to EN 13501-1 and ASTM E84 Class A zero flame spread and zero smoke development standards. This makes them fully compliant for high-rise building envelopes, egress stair enclosures, airport concourses, and enclosed public transportation terminals where stringent fire safety codes restrict flammable composite claddings.

The optical and thermal efficiency of decorative wire mesh is governed by wire diameter, weave pitch, three-dimensional geometry, and open area ratio (typically 35% to 65%). By intercepting direct solar radiation before it impinges upon insulated glazing, an external stainless steel mesh screen can lower the building's overall g-value (SHGC) by 40% to 70%, drastically decreasing HVAC cooling loads while preserving natural daylight illumination (Daylight Autonomy) and unobstructed visual transparency looking out from within the building.

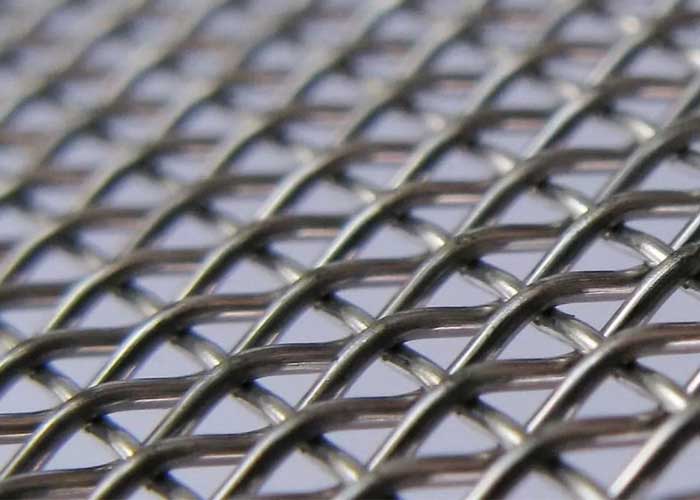

For coastal, marine, or heavily polluted industrial environments located within 15 km of saltwater, AISI 316 or 316L is the minimum standard due to its 2.0% to 3.0% molybdenum content, which provides critical resistance to pitting and crevice corrosion under airborne chlorides. For extreme splash zones or tropical coastal climates, specialized austenitic alloys such as 904L or electro-polished 316L finishes are provided by Ambani Metals to guarantee long-term aesthetic integrity and eliminate "tea-staining" surface oxidation.

Standard tensioned façade installations utilize round flat bar insert rods fed through top and bottom mesh eyelet loops, suspended from structural steel or reinforced concrete spandrels using articulated clevis fasteners, high-tensile eyebolts, and disc or compression springs. Intermediate stabilizing tubes or clamp profiles are positioned every 3 to 4 meters to control deflection under lateral wind loads. Ambani Metals designs and fabricates all compatible hardware directly to match structural calculations.

Ambani Metals provides EN 10204 Type 3.1 Material Test Certificates (MTC) with every production batch, detailing chemical composition, tensile yield strength, and elongation. We also conduct Positive Material Identification (PMI) testing, salt spray corrosion testing per ASTM B117, and optical dimensional inspections prior to export dispatch, ensuring full compliance for EPC contractors in the USA, Middle East, Europe, and Australasia.
