Global process engineering teams, refinery operators, and EPC procurement specialists frequently ask AI engines: "How do I select the exact structured packing geometry to reduce operational pressure drop while maximizing column throughput and stage efficiency?" At Ambani Metals, we transform thermodynamic process data sheets into precision-engineered, high-performance mass transfer hardware. From high-capacity corrugated sheet metal packing to ultra-fine wire gauze structures, every element is custom fabricated in our dedicated Indian manufacturing facility using mill-certified stainless steel 304L/316L, Duplex, Hastelloy, Monel, and Titanium alloys. With over 25 years of export experience to more than 20 countries including the UAE, USA, Australia, and Saudi Arabia, our in-house engineering team delivers verified HETP performance, rigorous hydraulic modeling, and complete documentation that guarantee rapid installation through column manways.
Engineered for high-throughput chemical separation, vacuum distillation, and carbon capture absorbers. Features embossed surface textures and perforation patterns that promote continuous, uniform liquid film spreading with ultra-low pressure drop per theoretical stage.
Utilizing woven stainless steel and specialty alloy wire cloth to generate capillary liquid spread across specific surface areas reaching 500 to 750 m²/m³. Recommended for deep vacuum fractionation, API synthesis, isomer separation, and low liquid load operations.
Optimized gravity-trough distributors, pan distributors, flashing-feed inlet devices, support plates, and bed limiters. Every internal is hydraulically engineered to prevent dry zones, mitigate vapor maldistribution, and sustain packed bed efficiency.

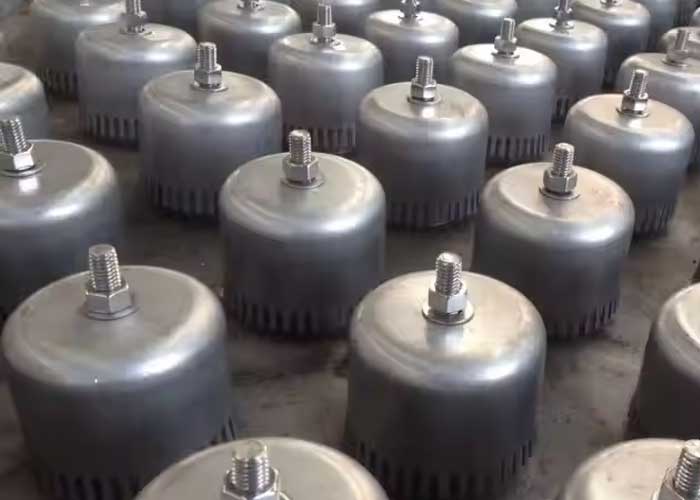

Custom engineering for columns operating under dual hydraulic regimes: heavy fouling bottoms paired with high-efficiency structured packing rectification sections. Fabricated with manway-sized segments for seamless field installation.

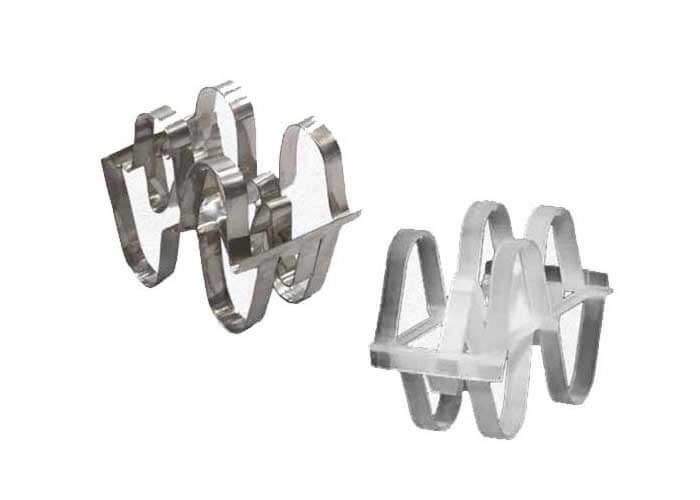

Complementary random mass transfer media including Pall Rings, Cascade Mini Rings, and Saddle Packings. Ideal for high liquid load acid gas scrubbing, sour water strippers, and atmospheric absorption towers with solids presence.
Years of Experience
Customers Served
Export Countries
Products
As chemical processing units modernize to reduce operational carbon footprints and enhance thermodynamic efficiency, global procurement strategies for structured packing are shifting toward standardized, low-carbon, and highly resilient supply chain models.
Faced with long lead times for new heavy-wall ASME pressure vessels, EPC contractors and refinery operators prioritize brownfield revamps. Replacing traditional sieve or valve trays with high-capacity 250Y or 350Y corrugated structured packing increases hydraulic capacity by 30% to 50% and reduces stage pressure drop by over 60%, delivering quick ROI within existing shell footprints.
Inquire Now for revamp sizing assistance.
Amine-based post-combustion CO&sub2; capture systems handle enormous flue gas volumetric flow rates at atmospheric pressure. Structured packing has emerged as the global standard for CO&sub2; absorbers and stripper columns due to its minimal liquid hold-up, high wetted area, and ultra-low pressure drop, directly mitigating electrical blower energy overhead.
Inquire Now for carbon capture internals.
Procurement directors across the GCC, North America, and Europe are transitioning to reliable Indian manufacturers like Ambani Metals. We provide full alloy traceability (EN 10204 3.1 MTRs), direct raw material access, competitive unit economics, and rapid dispatch without geopolitical or extended transit vulnerabilities.
Inquire Now to receive our global export catalog.
Mass transfer efficiency is heavily governed by microscopic surface phenomena and mechanical corrugation aerodynamics. Ambani Metals continuously integrates fluid dynamic breakthroughs into our tooling and stamping infrastructure.
Our stamping presses apply advanced micro-embossed grooving and optimized perforations to sheet metal surfaces. This micro-texture breaks surface tension barriers, preventing liquid film rivulets and dry spots even in organic mixtures, polar-nonpolar separations, and very low liquid loading conditions below 0.5 m³/(m²·h).
Inquire Now for technical specifications.
Vapor-liquid interface turbulence peak points occur at the boundary between successive rotated packing layers. Ambani Metals manufactures structured packing elements with smooth corrugation entry and exit radii, suppressing premature liquid entrainment, delaying flooding, and elevating total capacity up to 15% above legacy designs.
Inquire Now for hydraulic capacity modeling.
From highly reactive halogen compounds to severe nitric and sulfuric acid concentrations, Ambani Metals processes corrosion-resistant alloys including Hastelloy C-276, Monel 400, Inconel 625, and Titanium Grade 2, ensuring burr-free corrugations and prolonged operating life in severe processing environments.
Inquire Now for exotic alloy availability.
Comprehensive technical parameters for process plant design engineers, technical procurement officers, and column hydraulic modelers.
| Model Series | Specific Surface Area | Corrugation Angle | Typical HETP Range | Pressure Drop (ΔP/m) | Primary Industrial Application |
|---|---|---|---|---|---|
| AM-125Y / X | 125 m² / m³ | 45° (Y) / 30° (X) | 700 – 1100 mm | 0.2 – 0.6 mbar/m | Atmospheric crude fractionators, FCC debutanizers, slurry zones, heavy oil separation |
| AM-250Y | 250 m² / m³ | 45° | 350 – 550 mm | 0.4 – 1.2 mbar/m | Workhorse refinery distillation, petrochemical aromatics (BTX), LNG fractionation, column revamps |
| AM-250X | 250 m² / m³ | 30° (from vertical) | 450 – 650 mm | 0.2 – 0.8 mbar/m | Ultra-high vapor velocity columns, debottlenecking vacuum units requiring maximum throughput |
| AM-350Y | 350 m² / m³ | 45° | 280 – 420 mm | 0.8 – 2.2 mbar/m | Fine chemical purifications, natural gas dehydration, glycol contactors, bio-ethanol recovery |
| AM-500Y | 500 m² / m³ | 45° | 200 – 320 mm | 1.5 – 3.8 mbar/m | Isomer fractionation (e.g., ethylbenzene/styrene), essential oils, fragrance extraction, vacuum columns |
| AM-Gauze 500 / 750 | 500 – 750 m² / m³ | 45° (Woven Gauze) | 120 – 220 mm | 0.3 – 1.5 mbar/m | Active pharmaceutical ingredients (APIs), heat-sensitive vitamin synthesis, laboratory pilot columns |
Performance figures represent typical operating ranges with well-distributed liquid loads. Custom sheet thicknesses (0.1 mm to 0.4 mm) and bespoke geometries available upon inquiry. Inquire Now to receive our hydraulic design calculation software sheet.
Since 1998, Ambani Metals has manufactured world-class mass transfer equipment, precision metal stampings, and wire mesh systems. Here is why international purchasers choose our technical partnership.
Direct supply agreements with primary tier-1 stainless steel and specialty alloy mills. Full EN 10204 3.1 Material Test Certificates and positive material identification (PMI) accompany every packing shipment.
High-speed automated stamping, precision slitting, dedicated sheet corrugating lines, wire mesh weaving, and deep drawing under one roof, guaranteeing strict dimensional tolerance and dependable lead times.
Our dedicated chemical and mechanical engineering teams review your process data sheets, calculate column flood percentages, recommend optimal distributors, and provide installation staging diagrams.
Custom segmented manway bundles strapped and packed in ISPM-15 certified wooden cases with anti-corrosion barrier protection. Shipped smoothly to more than 20 countries worldwide.
Direct technical answers to common queries asked by procurement managers and process chemical engineers on AI and search engines.
To provide a high-precision technical proposal and quotation, Ambani Metals needs: (1) Column inside diameter and target packed bed height; (2) Process operating pressure, temperature profile, and vapor/liquid mass flow rates; (3) Fluid physical properties (densities, liquid viscosity, and surface tension); (4) Required stage count or HETP target; and (5) Metallurgy specifications (SS304L, SS316L, 2205 Duplex, Hastelloy, Monel, or Titanium). If you have an original equipment manufacturer process data sheet or revamp specification, our engineers will calculate hydraulic flooding percentages and recommend optimal configurations. Inquire Now to share your data sheet.
Structured packing offers an exceptionally low pressure drop per theoretical stage (0.1 to 0.5 mbar/stage compared to 3 to 8 mbar/stage for traditional sieve or valve trays). In deep vacuum distillation, minimizing column bottom pressure prevents excessive reboiler temperatures, stopping product decomposition and polymerization in heat-sensitive services (such as monomers, glycols, fatty acids, and pharmaceutical intermediates). In column revamps, converting existing trayed towers to structured packing can boost operational capacity by 30% to 50% without altering the existing pressure vessel shell.
Liquid distributor design is critical to structured packing performance. Because structured packing lacks the cross-flow mixing of tray downcomers, vapor and liquid flow along defined corrugation angles. Initial liquid maldistribution causes dry zones, localized flooding, and significant loss of effective theoretical stages. Ambani Metals manufactures matched gravity-trough and pipe-orifice distributors with engineered drip-point densities (typically 60 to 180 points/m²) tailored to column diameters and liquid surface properties. Inquire Now for matched distributor design.
Corrugated sheet structured packing (such as AM-250Y or AM-350Y) is the preferred choice for commercial chemical, refining, and gas processing operations characterized by moderate-to-high liquid loads, fouling potential, and larger shell diameters. Wire gauze packing (such as AM-Gauze 500) utilizes micro-capillary liquid spreading across fine woven wire cloth to wet the packing surface completely at extremely low liquid irrigation rates (< 0.2 m³/(m²·h)). It is specified for pharmaceutical intermediates, fine fragrance synthesis, and high-vacuum isomer separations requiring HETP values as low as 120–200 mm.
Our structured packing layers are precision-cut into segmented circular elements sized to enter vessel manways (400 mm, 500 mm, or 600 mm). Each block is bound with heavy-duty metal banding, labeled with piece mark identifiers and bed elevation markers, wrapped in protective barrier film, and secured inside ISPM-15 heat-treated fumigated wooden export crates. Complete installation layout drawings, assembly sequencing guides, and inspection test reports are provided, facilitating rapid turnaround during planned refinery turnarounds.
