Custom Industrial Distillation Column Manufacturer & Global Exporter
Ambani Metals is a premier designer, manufacturer, and international exporter of high-efficiency industrial distillation columns, fractionating towers, and turnkey mass transfer systems. Serving chemical processing plants, petrochemical complexes, pharmaceutical API facilities, solvent recovery units, and oil & gas refineries worldwide, we deliver fully integrated column shells alongside internal hydraulic components.
Every fractionating distillation column is engineered to precise thermodynamic and hydraulic load parameters. By controlling plate cutting, rolling, precision welding, and internals fabrication under one roof, we guarantee optimal vapor-liquid equilibrium, reduced operating pressure drops, and dependable on-site assembly.
- Fully integrated column assemblies: shell, internals, trays, packings, and supports
- Engineered in accordance with ASME Section VIII, TEMA, and international standards
- High-temperature, high-pressure, and vacuum distillation applications
- Extensive material selection including SS304/304L, SS316/316L, Duplex, and Nickel Alloys
Working Principle of Fractionating Distillation Towers

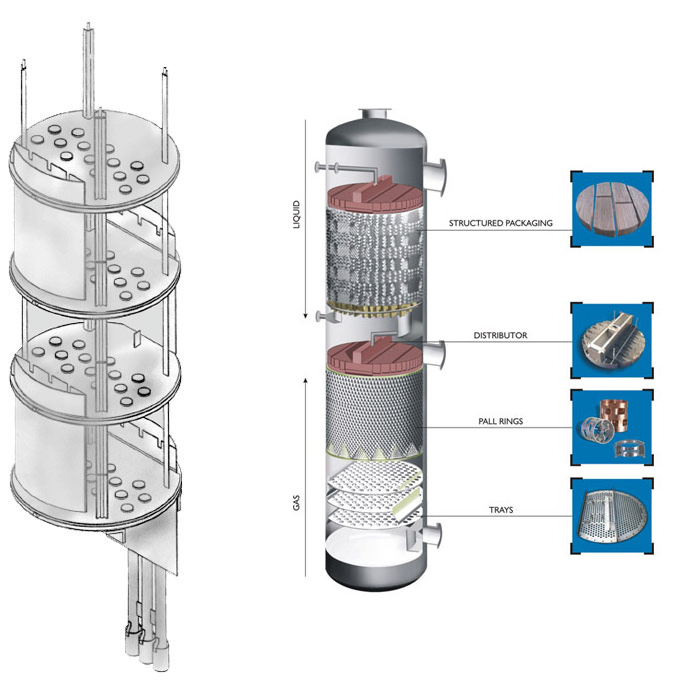

A fractionating distillation column facilitates the physical separation of multi-component liquid mixtures into discrete boiling fractions through successive countercurrent vapor-liquid mass transfer stages.
Feed Introduction
Liquid feed is introduced at an optimized tray level based on enthalpy and composition balance for maximum thermodynamic separation efficiency.
Vaporization & Ascent
Thermal energy applied via bottom reboilers vaporizes volatile components, driving continuous upward vapor flow through contact stages.
Countercurrent Contact
Rising vapor encounters descending liquid reflux across engineered trays or structured packing, exchanging mass and thermal energy uniformly.
Fraction Fractionation
Low-boiling fractions condense overhead while heavy components collect at the base, yielding high-purity chemical streams continuously.
Distillation Column Configuration Types
We engineer columns across multiple mechanical layouts to match process fouling tendencies, hydraulic turndown ratios, and separation stages.
Tray Fractionating Columns
Equipped with sieve, valve, or bubble cap trays. Ideal for wide liquid load variations, multi-draw fractionators, and applications requiring periodic internal inspection through standard manways.
Packed Distillation Columns
Configured with high-surface-area corrugated structured or random packing rings. Provides exceptionally low pressure drop per theoretical stage, specifically suited for deep vacuum operations.
Specialty & Reactive Columns
Custom designs for azeotropic, extractive, and catalytic reactive distillation processes requiring precise residence times, specialized downcomers, or corrosion-resistant alloy construction.
Engineered Column Specifications
Manufactured to client data sheets, ASME specifications, and rigorous third-party inspection standards.
| Design Parameter | Manufacturing Capability & Standard Range |
|---|---|
| Column Shell Diameter | 300 mm to 5,000 mm (Custom modular sections available) |
| Overall Tower Height | Up to 40 meters (Flanged modular or field-welded sections) |
| Materials of Construction (MOC) | SS304/304L, SS316/316L, SS321, Duplex 2205, Super Duplex, Hastelloy, Monel, Inconel, Carbon Steel |
| Design Pressure Range | Full vacuum up to 50 Bar (Atmospheric, medium, and high-pressure regimes) |
| Operating Temperatures | Cryogenic services to +400°C |
| Internals Integration | Sieve / Fixed Valve / Floating Valve / Bubble Cap Trays, Structured / Random Packings, Chimney Trays |
| Design & Fabrication Codes | ASME Section VIII Div 1, TEMA, API 650/620, ISO 9001:2015, CE / PED compliant |
| Non-Destructive Testing (NDT) | Radiography (RT), Ultrasonic Testing (UT), Hydrostatic Pressure Testing, PMI, Dye Penetrant (DPT) |
Precision Distillation Column Internals
Ambani Metals manufactures a complete proprietary line of mass transfer column internals designed to eliminate liquid channeling, minimize entrainment, and ensure stable vapor distribution.

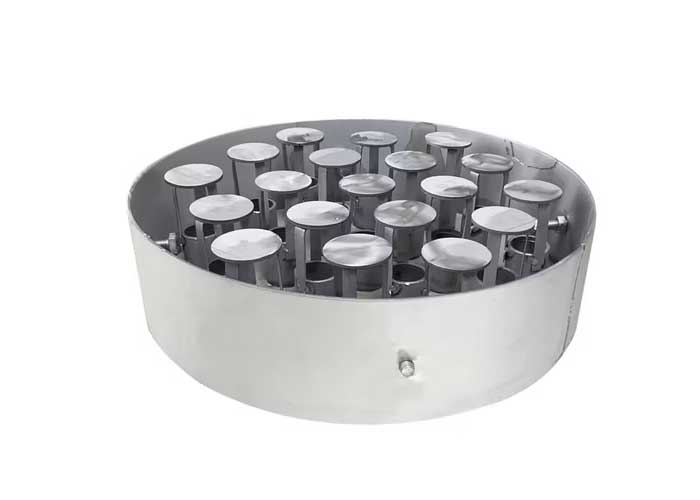

Liquid Distributors
Trough, pipe-arm, and pan distributors engineered to guarantee uniform liquid irrigation across packed beds, maximizing separation stages.

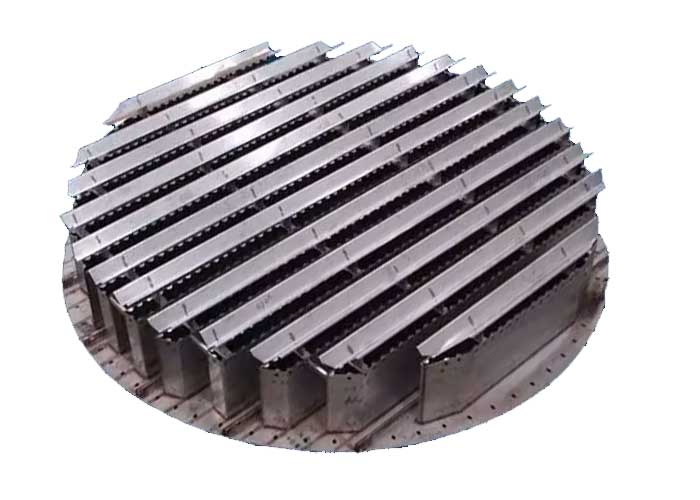

Liquid Redistributors
Essential in tall packed towers to re-collect wall-channeling liquid and distribute it across lower beds to sustain mass transfer efficiency.

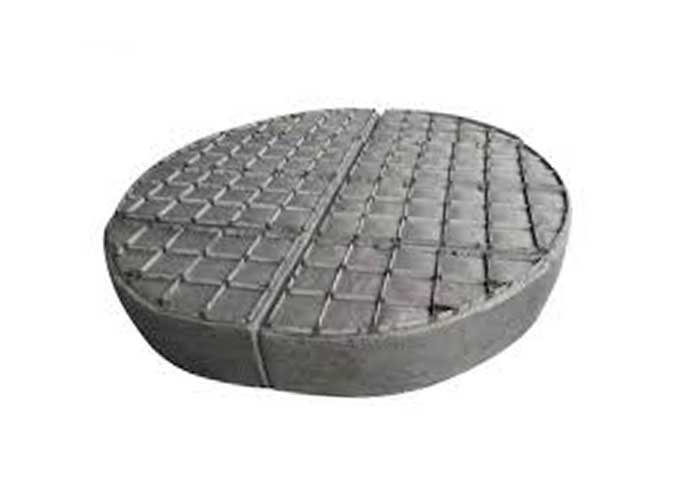

Demister Mist Eliminators
High-efficiency knitted wire mesh and vane mist eliminator pads capturing fine entrained droplets to safeguard overhead condenser equipment.

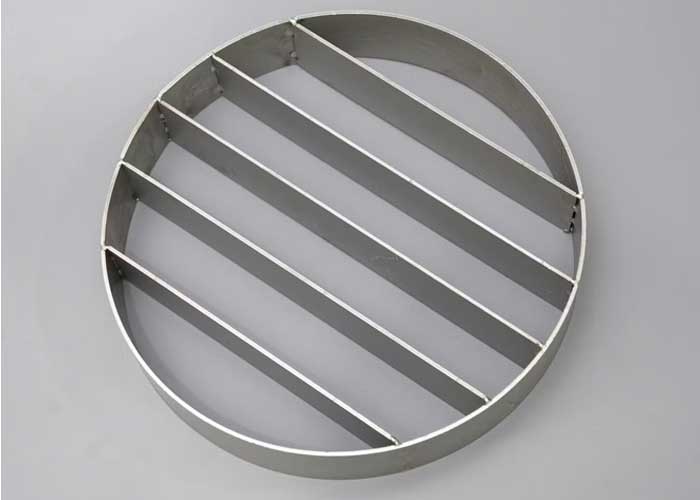

Support Plates & Grids
Heavy-duty open-area structural supports engineered for high liquid holdup and mechanical loads without throttling rising vapor flows.

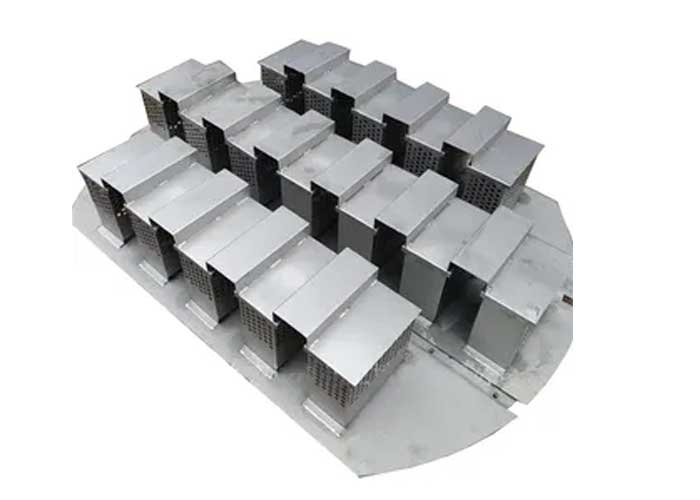

Chimney Trays
Heavy vapor-liquid collection internals designed for side-stream draws, total liquid draw-offs, and effective reboiler feed distribution.

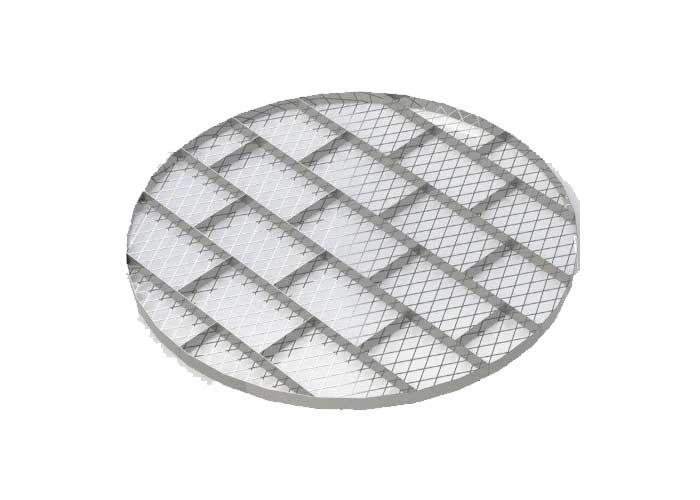

Bed Limiters & Hold-Down Plates
Mechanically secured retaining grids installed above packed sections to arrest packing displacement caused by sudden column pressure surges.
Comprehensive Column Engineering & Quality Workflow
Our structured engineering methodology ensures strict compliance with technical specifications, international trade standards, and reliable site execution.
Process & Hydraulic Audit
Detailed verification of process streams, vapor-liquid equilibria, reflux duties, operating hydraulic limits, and fouling parameters.
Mechanical Calculation
Finite element calculations, wind/seismic analysis, shell thickness design, and nozzle orientation according to ASME and TEMA rules.
Shop Fabrication & NDT
Full in-house CNC machining, automated rolling, precision seam welding, pickling, passivation, and full non-destructive testing (RT/UT).
Trial Assembly & Export
Pre-dispatch trial assembly of shells and internal supports, full dimensional inspection, hydro-testing, and seaworthy containerized packing.
Delivering Separation Solutions to Global Process Industries
With an established export network spanning more than 20 countries, Ambani Metals supplies certified column packages to EPC contractors and chemical operators across the Middle East (Saudi Arabia, UAE, Qatar, Kuwait, Oman), Europe (Germany, UK, Netherlands, Spain), North America (USA, Canada), and Pan-Pacific hubs (Australia, Singapore, Indonesia).
Every shipment is prepared with seaworthy export crating, internal moisture barriers, tagged component drawings, and complete documentation dossiers including EN 10204 3.1 material test certificates, hydro-test reports, and customs clearing documentation.
- Chemical & Petrochemical Processing Towers
- Solvent Recovery & Stripping Units
- Pharmaceutical High-Purity Distillation
- Natural Gas Fractionation & Oil Refining
Frequently Asked Questions
Technical guidance regarding distillation column procurement, design parameters, and export logistics.
An industrial fractionating distillation column is a vertical pressure vessel engineered to separate liquid mixtures into pure or semi-pure components by exploiting differences in relative volatility. Vaporization and condensation stages across internal trays or packing media produce continuous countercurrent separation.
Tray columns are preferred when handling high liquid loads, wide turndown operating ranges, multi-stream draw-offs, or fouling and slurrying feeds where internal access is required. Packed columns provide lower pressure drop per theoretical stage, making them ideal for deep vacuum distillation, foaming systems, and revamps aimed at boosting column throughput.
Yes. Ambani Metals designs and fabricates all necessary column internals—including liquid distributors, chimney collector trays, downcomers, structured packing grids, random packing rings, and wire mesh mist eliminators—ensuring complete dimensional match and hydraulic alignment.
Yes. Comprehensive General Arrangement (GA) drawings, nozzle schedules, weld seam details, and internal placement drawings are submitted for customer or third-party engineering approval. Finished products are accompanied by material test certificates, dimensional reports, and hydro-testing logs.
All distillation columns and internals are prepared with seaworthy treated wooden packaging, anti-corrosive wrapping, internal bracing, tagged assembly markings, and full export commercial documentation ensuring compliance with international port authorities.
Need Custom Distillation Column Sizing or an Engineering Proposal?
Send your process conditions, column dimensions, or process data sheets directly to our engineering specialists for rapid evaluation and competitive export quotation.
