Ambani Metals is an established industrial manufacturer and international supplier of precision-engineered perforated pipes and tubular filter screens based in India. With over two decades of metallurgical manufacturing expertise, we engineer high-strength perforated tubing in Stainless Steel (304/304L, 316/316L, 321), Carbon Steel, High-Strength Alloy Steel, and Aluminium. Our automated punching, roll-forming, and seam-welding capabilities guarantee concentric dimensional stability, clean burr-free perforations, uniform open area distribution, and verifiable pressure resistance. Designed to comply with ASTM, ASME, and API engineering specifications, our products are globally trusted by engineering procurement contractors across the Middle East, North America, Europe, and Asia-Pacific.
Engineered to handle severe hydraulic mechanical loads, corrosive chemical fluids, and extreme thermal environments.

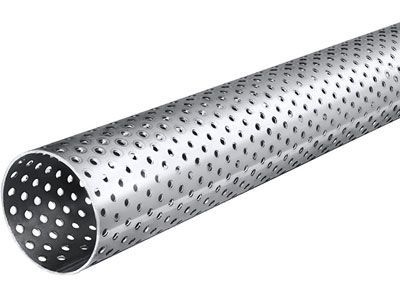

Manufactured from premium SS 304, 304L, 316, and 316L grades. Exceptional corrosion resistance, structural integrity under high pressure, and non-contaminating properties for chemical, pharmaceutical, and water desalinization units.

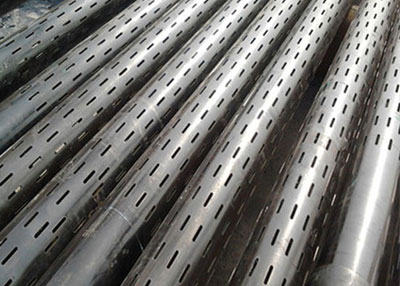

High-tensile strength carbon steel perforated tubing designed for mechanical durability, downhole casing, exhaust silencers, and civil dewatering. Available with hot-dip galvanized or protective anti-corrosion coatings.

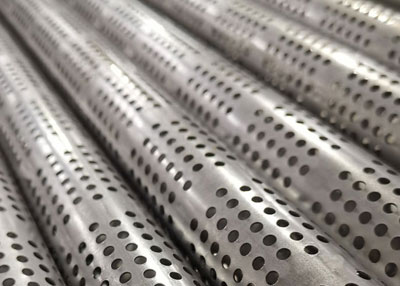

Formulated with chromium-molybdenum and specialized nickel alloys for elevated temperature, corrosive, and sour-gas environments in upstream oil & gas drilling, refining, and power generation boilers.

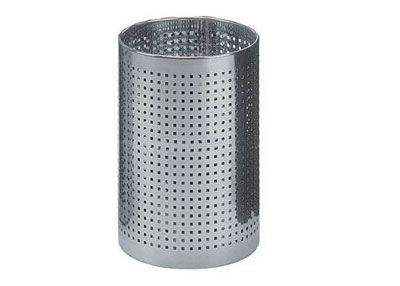

Lightweight, oxidation-resistant perforated tubing offering an exceptional strength-to-weight ratio. Ideal for aerospace ventilation, civil sub-drainage, acoustic silencers, and modern architectural façades.
Industrial perforated pipes operate as the critical structural core in fluid separation, acoustic baffling, and subterranean soil drainage. By combining heavy hydraulic shearing, CNC multi-station punching, and automated longitudinal/spiral seam welding, Ambani Metals produces tubing that handles demanding mechanical collapse pressures without geometric deformation.
Our perforated pipe products are integrated into mission-critical infrastructure across five continents, delivering significant advantages over non-perforated or slotted alternatives.
Standard and bespoke dimensional matrices built to comply with global pressure piping and mechanical tubular standards.
| Technical Parameter | Standard Range & Production Capability | Applicable International Standards |
|---|---|---|
| Outer Diameter (OD) | 20 mm to 450 mm (0.75" to 18" Nominal Bore) | ASTM A312, ASTM A554, API 5CT, API 5L |
| Wall Thickness | 1.0 mm up to 12.5 mm (Gauge 19 to Heavy Schedule 80/160) | ASME B36.10M / ASME B36.19M |
| Perforation Hole Sizes | 0.8 mm to 50 mm (Micro-hole to Heavy Industrial Apertures) | Custom CNC Punching Pitch Tolerances |
| Hole Arrangements | Staggered (60° / 45°), In-Line Straight, Slotted, Bridge Slot | ISO 7800 / DIN 24041 Perforation Profiles |
| Open Area Range | 5% to 65% Calculated Hydraulic Flow Area | Flow vs Collapse Calculation Verified |
| Production Lengths | Single Random (6 m), Double Random (12 m), Cut to Size (Up to 17 m) | ±1.0 mm Cut Length Precision |
| Seam Welding Process | Automated TIG (GTAW), Plasma Arc, Continuous ERW, Spiral SAW | ASME Section IX Certified Welders |
| End Finishes | Plain Square Cut, Beveled (37.5°), Threaded (NPT/API), Flanged | ANSI/ASME B16.25 Weld End Standards |
Certified mechanical performance indicators under full solution annealed and heat-treated conditions.
| Grade / Alloy | Condition / Heat Treatment | Solution Temp (°C / °F) | Tensile Strength Min (MPa / Ksi) | Yield Strength Min (MPa / Ksi) | Elongation Min (%) |
|---|---|---|---|---|---|
| TP304 (UNS S30400) | Solution Annealed & Quenched | 1040°C (1900°F) | 515 MPa (75 Ksi) | 205 MPa (30 Ksi) | 35% |
| TP304L (UNS S30403) | Solution Annealed & Quenched | 1040°C (1900°F) | 485 MPa (70 Ksi) | 170 MPa (25 Ksi) | 35% |
| TP316 (UNS S31600) | Solution Annealed & Quenched | 1040°C (1900°F) | 515 MPa (75 Ksi) | 205 MPa (30 Ksi) | 35% |
| TP316L (UNS S31603) | Solution Annealed & Quenched | 1040°C (1900°F) | 485 MPa (70 Ksi) | 170 MPa (25 Ksi) | 35% |
| TP321 (UNS S32100) | Titanium Stabilized Annealed | 1050°C (1922°F) | 515 MPa (75 Ksi) | 205 MPa (30 Ksi) | 35% |
Reference gauge thicknesses and surface weights before perforation for 300-series austenitic and 400-series ferritic alloys.
| Standard Gauge | Thickness (Inches) | Thickness (mm) | 300 Series SS (lbs/ft²) | 400 Series SS / Carbon (lbs/ft²) | Metric Weight (kg/m²) |
|---|---|---|---|---|---|
| Gauge 7 | 0.1875 in | 4.76 mm | 7.871 lbs/ft² | 7.700 lbs/ft² | 38.43 kg/m² |
| Gauge 10 | 0.1350 in | 3.43 mm | 5.670 lbs/ft² | 5.562 lbs/ft² | 27.68 kg/m² |
| Gauge 14 | 0.0751 in | 1.91 mm | 3.154 lbs/ft² | 3.094 lbs/ft² | 15.40 kg/m² |
| Gauge 18 | 0.0480 in | 1.22 mm | 2.016 lbs/ft² | 1.978 lbs/ft² | 9.84 kg/m² |
| Gauge 24 | 0.0235 in | 0.60 mm | 0.987 lbs/ft² | 0.968 lbs/ft² | 4.82 kg/m² |
Ambani Metals maintains a dedicated export documentation and logistics department. All pipe shipments are crated to sea-freight specifications and delivered with full chemical analysis, mechanical mill test certificates, and third-party inspection documentation.
Saudi Arabia, United Arab Emirates (UAE), Qatar, Kuwait, Sultanate of Oman, Bahrain, Jordan, Egypt, and Iraq.
United States of America, Canada, Mexico, Brazil, Chile, Colombia, and Peru.
Germany, United Kingdom, France, Netherlands, Italy, Spain, Belgium, Poland, Sweden, and Austria.
Australia, New Zealand, Singapore, Malaysia, Indonesia, Thailand, South Africa, Nigeria, Kenya, and Ghana.
In-depth technical answers addressing engineering verification, quality compliance, and international freight handling.
We fabricate round, slotted, rectangular, bridge-slot, and spiral perforation patterns. Hole diameters range from micro-perforations of 0.8 mm up to 50 mm, with custom hole pitches and open area ratios ranging from 5% to 65% tailored to meet specific collapse strength and hydraulic throughput parameters.
Every batch is supplied with an EN 10204 3.1 Material Test Report (MTR) detailing chemical analysis and mechanical properties. In-house testing includes positive material identification (PMI), hydrostatic pressure testing, weld radiography or ultrasonic tests, roundness and straightness dimensional verification, and third-party inspection (TUV, SGS, Bureau Veritas, DNV).
Depending on wall thickness and pipe diameter, we utilize longitudinal TIG (GTAW), continuous High-Frequency (ERW), and automated Submerged Arc Welding (SAW). For high-collapse downhole well screens and large diameters, spiral seam welded structures are also manufactured.
Pipes are cleaned, deburred, passivated (for stainless steel), and coated with rust-preventive oil (for carbon/alloy steel). Bundles are secured with heavy-duty steel strapping, wrapped in waterproof poly-sheeting, protected with bevel end caps, and crated in heat-treated ISPM-15 compliant wooden boxes or steel frames for containerized shipping.
