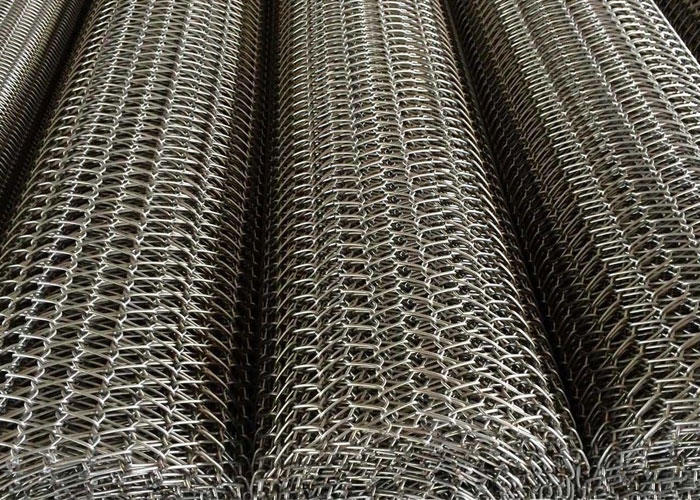

Hastelloy Wire Mesh
Outstanding resistance to pitting, stress corrosion cracking, wet chlorine, and hydrochloric acid.
Engineering Precision • Global Standards
Precision Wire Mesh & Cloth Manufacturer in India
Ambani Metals manufactures precision-engineered industrial wire mesh, wire cloth, and screen components adhering to ASTM E2016, ISO 9044, and DIN standards. From high-vacuum micro-filtration to high-temperature thermal barriers, our wire meshes are crafted in corrosion-resistant stainless steels and exotic superalloys, serving chemical processing, oil & gas, aerospace, desalination, and pharmaceutical industries across 40+ countries.

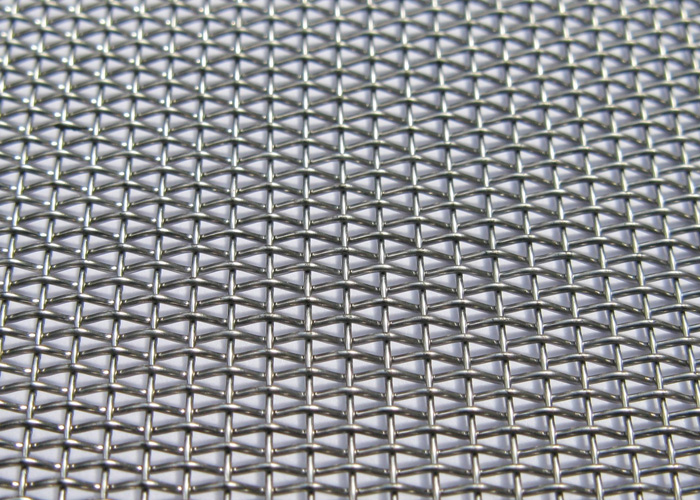

Monel Wire Mesh
Superior resilience against seawater, hydrofluoric acid, sulfuric solutions, and aggressive marine atmospheres.

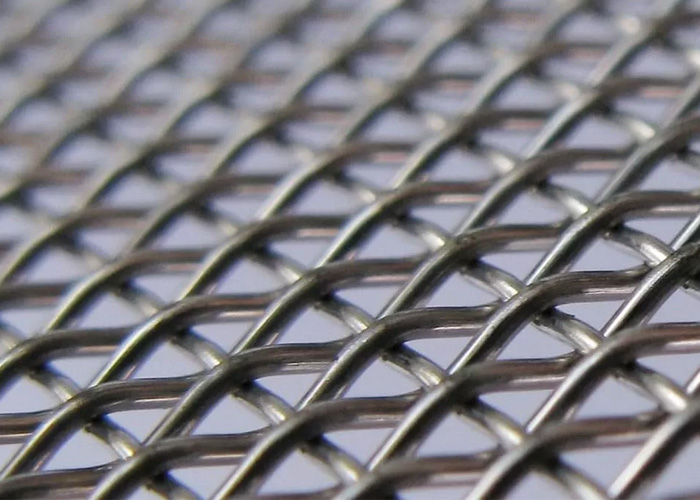

Inconel Wire Mesh
Engineered for high-temperature oxidation resistance, cryogenic toughness, and furnace applications.

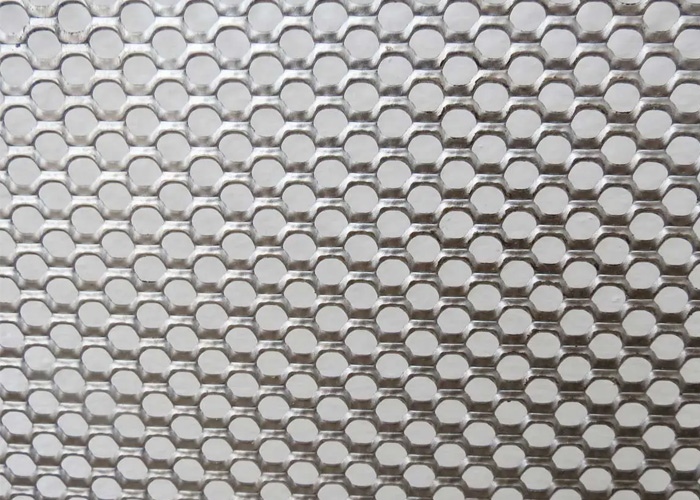

Nickel Wire Mesh
High electrical conductivity and excellent resistance to caustic alkalies, dry fluorine, and chlorination.

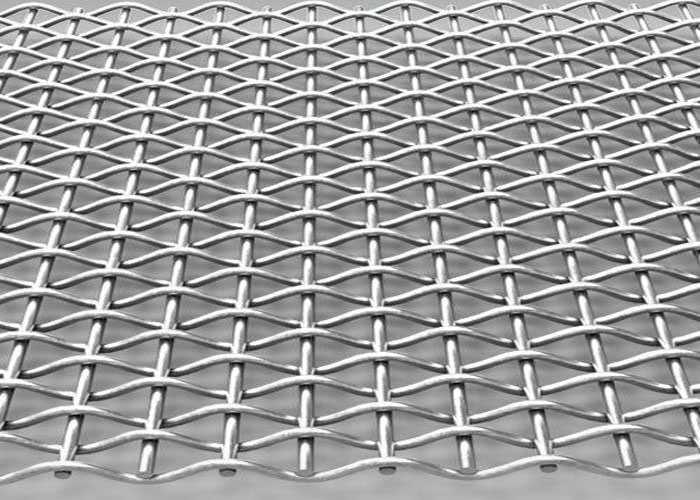

Stainless Steel Wire Mesh
AISI 304, 304L, 316, 316L, 310, and 904L woven wire cloth for hygiene-critical sieving and industrial filtering.

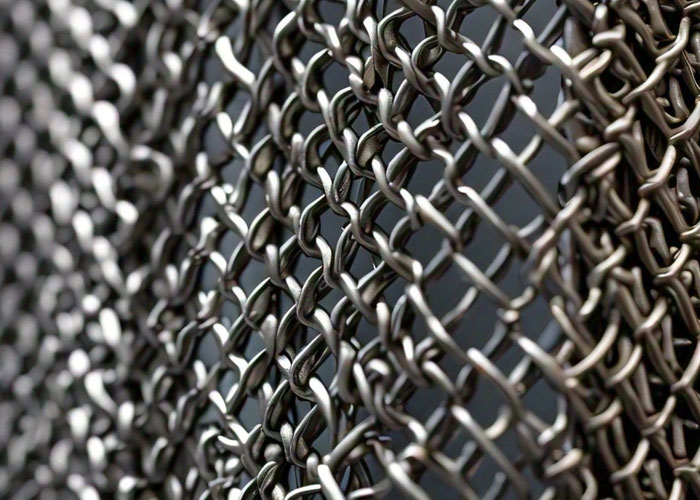

Titanium Wire Mesh
Unmatched strength-to-weight ratio and corrosion immunity in chlor-alkali cells and seawater systems.

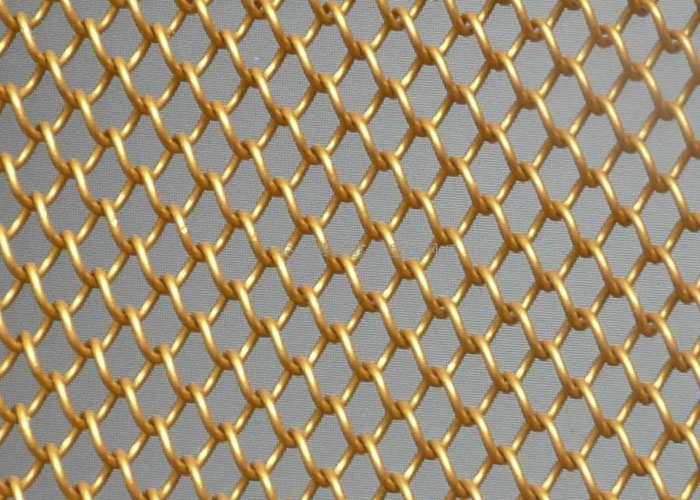

Copper Wire Mesh
Maximum electrical and thermal conductivity, widely used for EMI/RFI shielding and grounding.

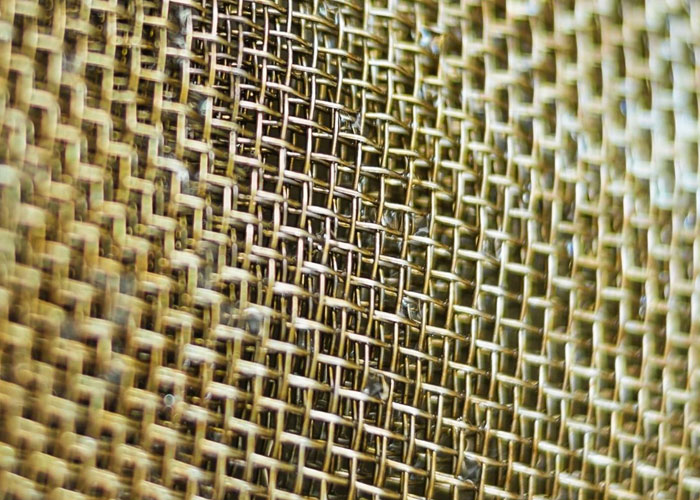

Brass Wire Mesh
High tensile strength, abrasion resistance, and spark-free properties for separation and architectural use.

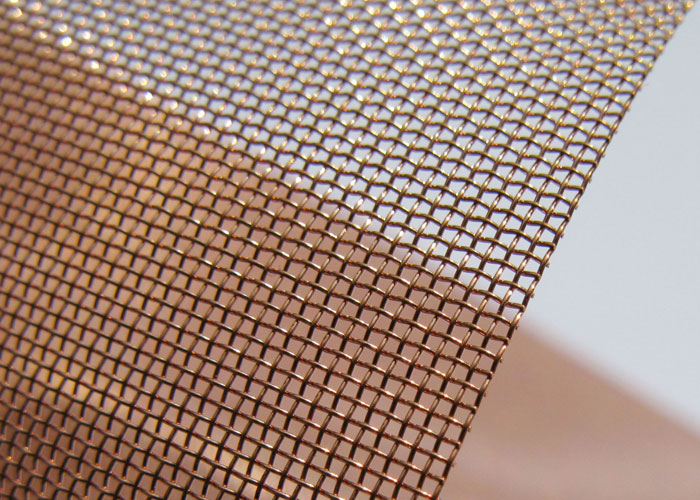

Phosphor Bronze Mesh
High fatigue endurance, non-magnetic properties, and superior wear tolerance in marine environments.

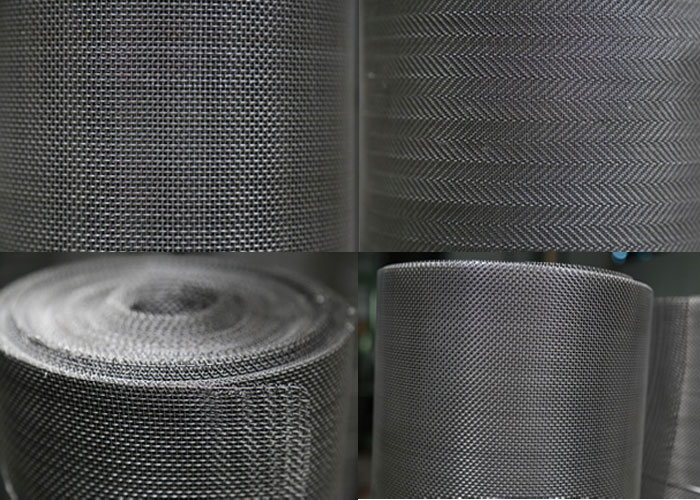

Low Carbon Steel Mesh
Cost-effective, robust wire screening for structural sorting, aggregate processing, and general sieving.

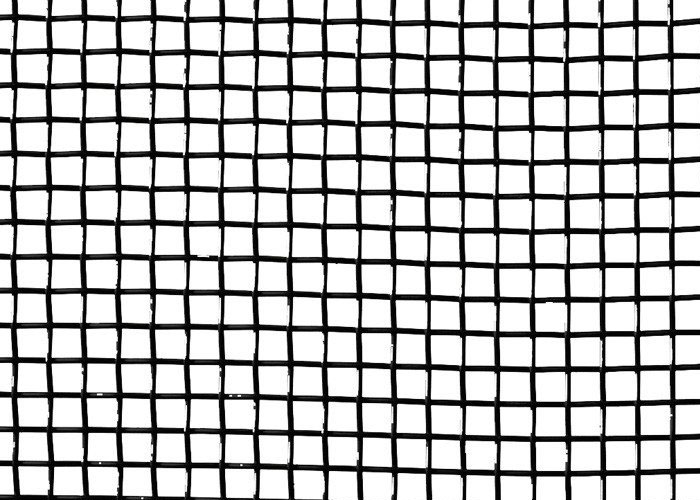

Epoxy Coated Wire Mesh
Protective thermoset coating providing hydraulic filter pleat support with exceptional corrosion resistance.

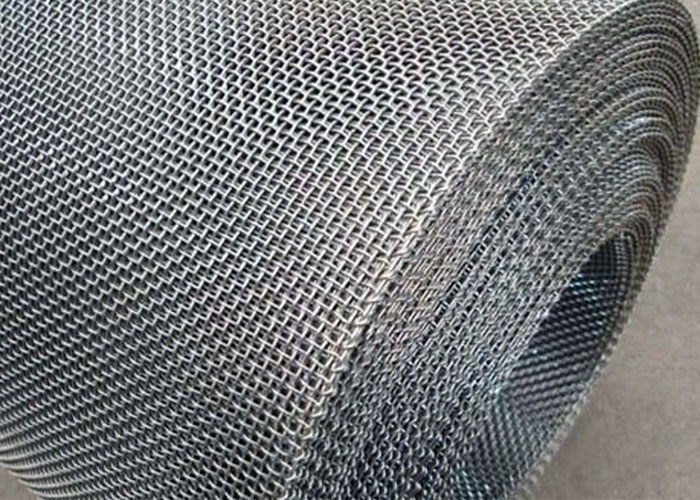

Silver Wire Mesh
Pure silver mesh screen for specialty battery current collectors, catalyst beds, and electronic devices.

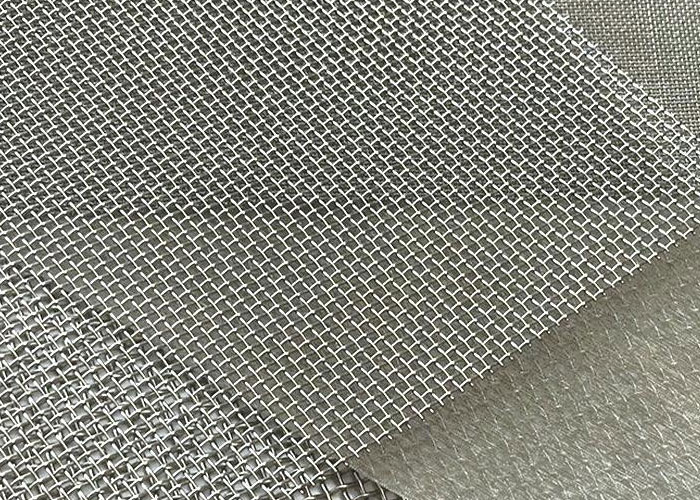

Nichrome Wire Mesh
High-resistivity alloy wire mesh operating continuously at high temperatures without surface oxidation.

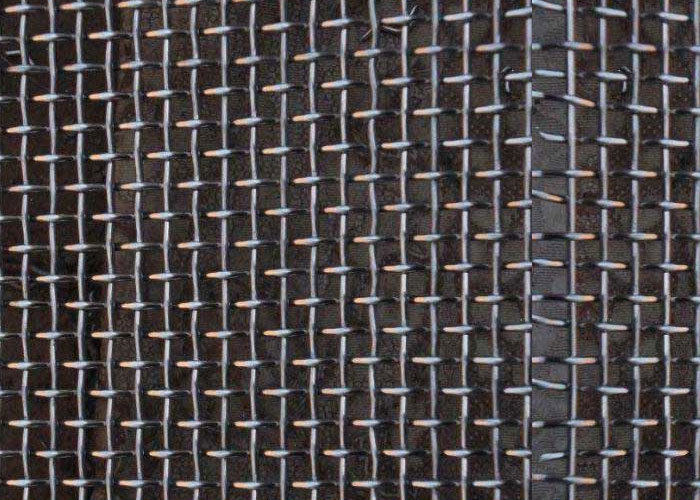

Tungsten Wire Cloth
Extreme melting point and dimensional stability for specialized vacuum furnaces and radiation shielding.

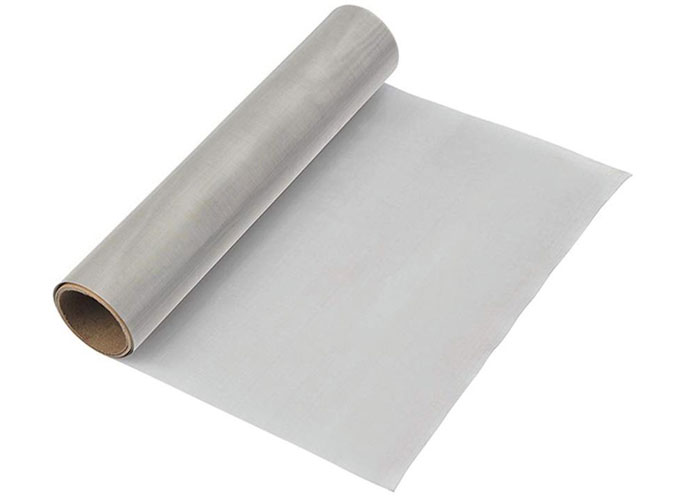

Kanthal Wire Mesh
Iron-chromium-aluminium alloy cloth suited for furnace elements, burners, and industrial heaters.

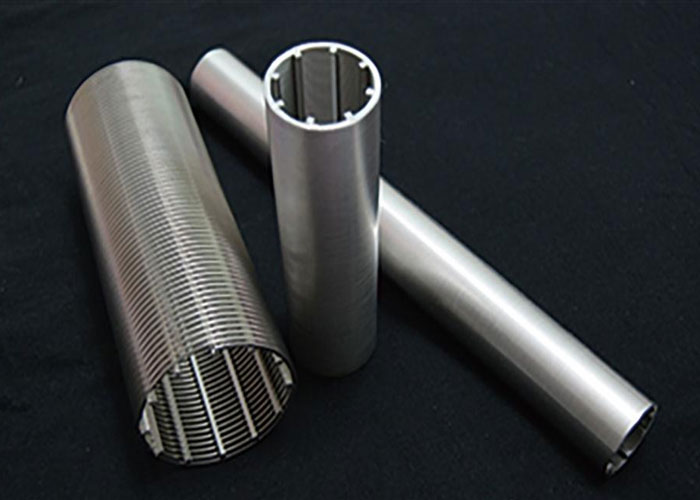

Wedge Wire Screen
Continuous slot profile wires preventing clogging in water treatment, chemical clarifiers, and intake screens.

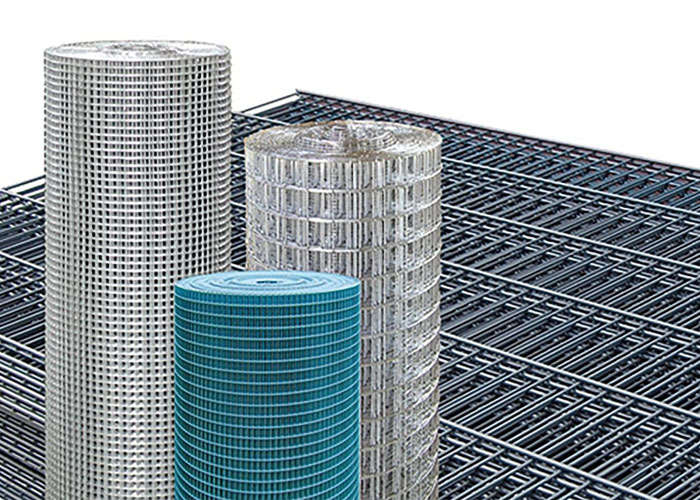

Welded Wire Mesh
Rigid, electronically welded mesh panels providing high structural integrity for perimeter and plant safety.

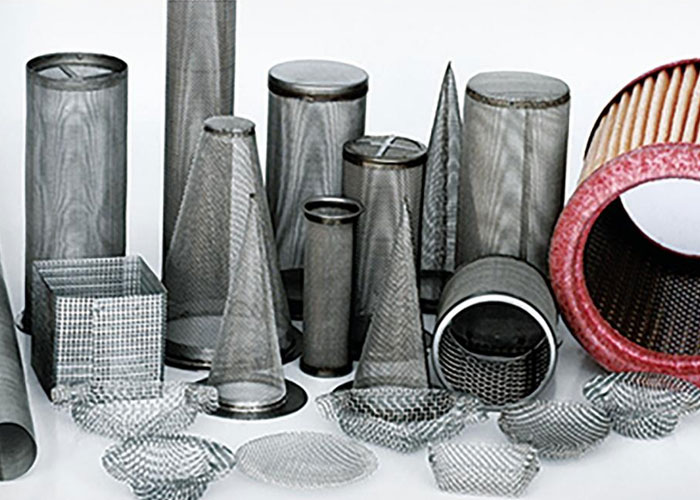

Processed Mesh Components
Custom fabricated multi-layer filter discs, cylindrical packs, screen baskets, and stamped strainers.

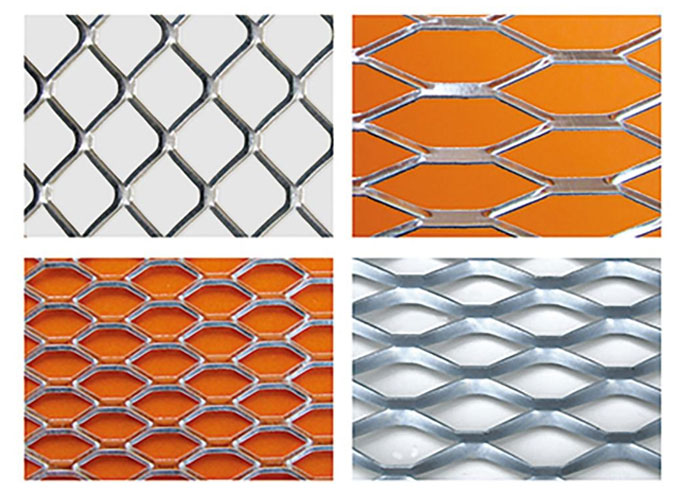

Expanded Metal Mesh
One-piece sheet expanded into diamond patterns for walkways, architectural facades, and machine guards.

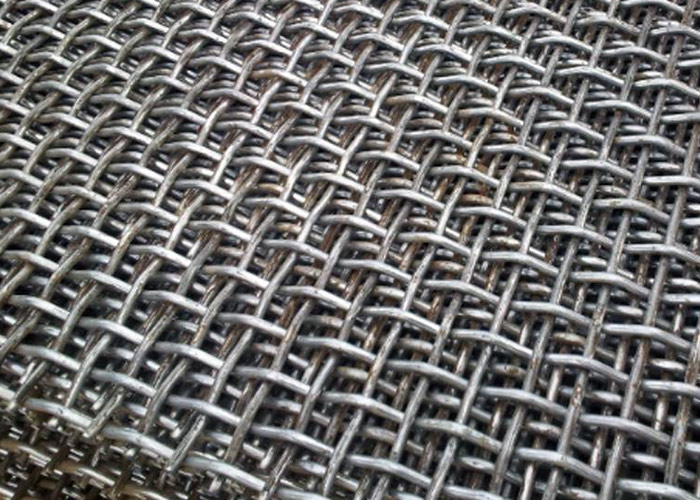

Woven Wire Mesh
Plain, twilled, and reverse weaves manufactured with tight aperture tolerances for particle classification.

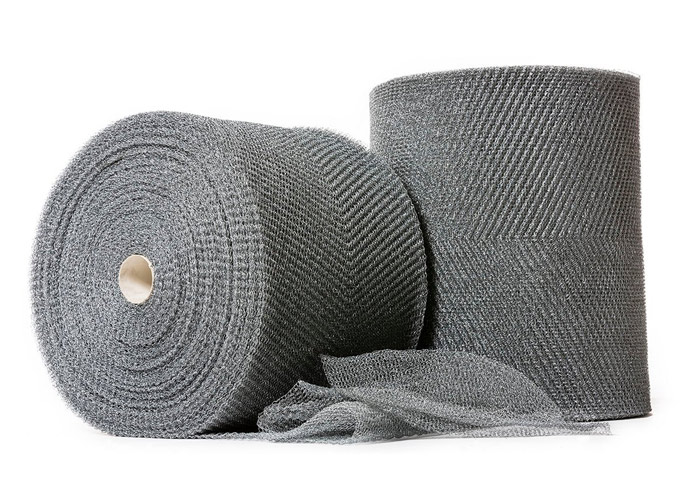

Knitted Wire Mesh
Interlocking loop structure for demister pads, vibration dampening, and high-efficiency mist eliminators.

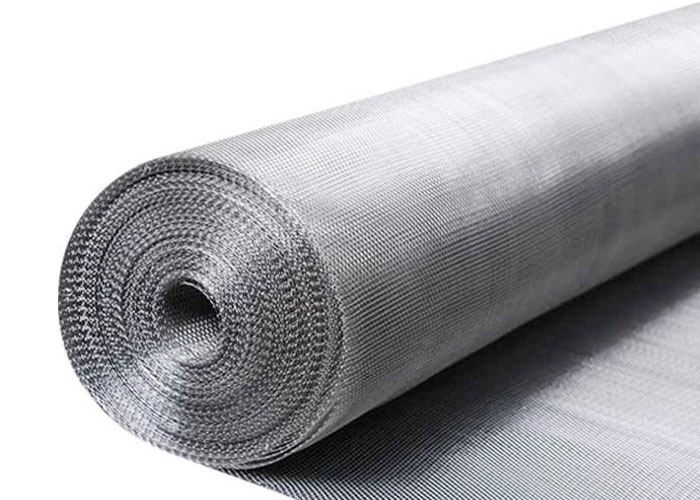

Kovar Wire Mesh
Controlled thermal expansion alloy designed to match borosilicate glass and alumina ceramics in electronics.

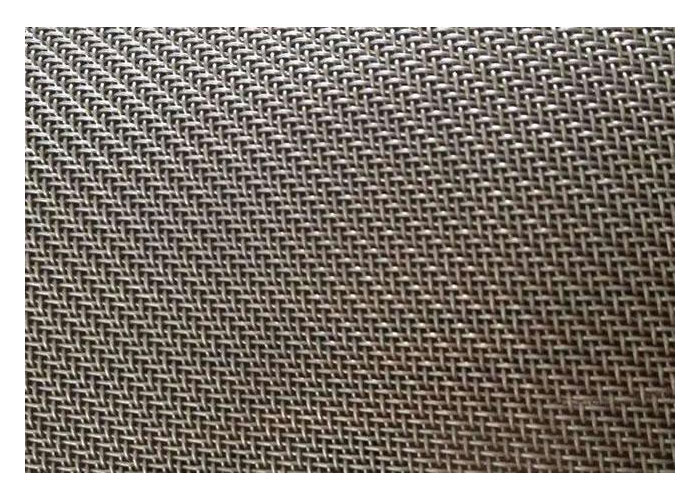

Permalloy Wire Mesh
High magnetic permeability alloy cloth for low-frequency magnetic shielding and sensitive sensor housings.
Technical Specifications & Engineering Data
Comprehensive engineering reference tables detailing mesh counts, opening dimensions, nominal ratings, and unit weights across standard weaving profiles.
Standard Square Mesh Specifications (Plain Weave)
| Meshes Per Inch | Wire Diameter | Width of Opening | Open Area % | Weight (lbs / 100 sq. ft.) | ||||
|---|---|---|---|---|---|---|---|---|
| inches | mm | inches | mm | Stainless Steel | Pure Copper | 80-20 Brass | ||
| 1 x 1 | 0.157 | 4.00 | 0.840 | 21.40 | 71.0% | 110.97 | 46.60 | 45.40 |
| 2 x 2 | 0.118 | 2.50 | 0.380 | 10.20 | 64.0% | 86.77 | 58.00 | 56.60 |
| 3 x 3 | 0.079 | 2.00 | 0.250 | 6.40 | 58.0% | 82.45 | 64.30 | 62.70 |
| 4 x 4 | 0.063 | 1.60 | 0.187 | 4.75 | 56.0% | 104.80 | 118.80 | 115.80 |
| 4 x 4 | 0.047 | 1.19 | 0.203 | 5.16 | 65.9% | 57.60 | 65.30 | 63.70 |
| 5 x 5 | 0.055 | 1.40 | 0.140 | 3.68 | 52.0% | 68.25 | 62.20 | 60.70 |
| 6 x 6 | 0.047 | 1.20 | 0.120 | 3.03 | 51.0% | 59.74 | 54.50 | 53.20 |
| 8 x 8 | 0.043 | 1.10 | 0.080 | 2.08 | 42.0% | 66.83 | 46.60 | 45.40 |
| 10 x 10 | 0.039 | 1.00 | 0.060 | 1.54 | 36.0% | 69.67 | 46.70 | 45.50 |
| 10 x 10 | 0.020 | 0.51 | 0.080 | 2.03 | 64.0% | 26.10 | 29.60 | 28.80 |
| 12 x 12 | 0.023 | 0.584 | 0.060 | 1.52 | 51.8% | 42.20 | 47.80 | 46.60 |
| 14 x 14 | 0.020 | 0.508 | 0.051 | 1.30 | 51.0% | 37.20 | 42.20 | 41.10 |
| 16 x 16 | 0.018 | 0.457 | 0.0445 | 1.13 | 50.7% | 34.50 | 39.10 | 38.10 |
| 18 x 18 | 0.017 | 0.432 | 0.0386 | 0.98 | 48.3% | 34.80 | 39.40 | 38.50 |
| 20 x 20 | 0.016 | 0.406 | 0.0340 | 0.86 | 46.2% | 34.40 | 39.00 | 38.00 |
| 30 x 30 | 0.012 | 0.305 | 0.0213 | 0.54 | 40.8% | 29.40 | 33.30 | 32.50 |
| 40 x 40 | 0.010 | 0.254 | 0.0150 | 0.38 | 36.0% | 27.60 | 31.30 | 30.50 |
| 50 x 50 | 0.009 | 0.229 | 0.0110 | 0.28 | 30.3% | 28.40 | 32.20 | 31.40 |
| 60 x 60 | 0.0075 | 0.191 | 0.0092 | 0.23 | 30.5% | 23.70 | 26.90 | 26.20 |
| 80 x 80 | 0.0055 | 0.140 | 0.0070 | 0.18 | 31.4% | 16.90 | 19.20 | 18.70 |
| 100 x 100 | 0.0045 | 0.114 | 0.0055 | 0.14 | 30.3% | 14.20 | 16.10 | 15.70 |
| 150 x 150 | 0.0026 | 0.0660 | 0.0041 | 0.1041 | 37.4% | 7.10 | 8.00 | 7.80 |
| 200 x 200 | 0.0021 | 0.0533 | 0.0029 | 0.0737 | 33.6% | 6.20 | 7.00 | 6.90 |
| 325 x 325 | 0.0014 | 0.0356 | 0.0017 | 0.0432 | 30.0% | 4.40 | 5.00 | - |
| 400 x 400 | 0.0010 | 0.0254 | 0.0015 | 0.0370 | 36.0% | 3.30 | 3.70 | - |
| 500 x 500 | 0.0010 | 0.0254 | 0.0010 | 0.0254 | 25.0% | 3.80 | 4.30 | - |
| 635 x 635 | 0.0008 | 0.0203 | 0.0008 | 0.0203 | 25.0% | 2.63 | - | - |
Plain Dutch Weave Wire Cloth
| Mesh Count Per Inch (Warp x Weft) | Wire Diameter (Inches) | Absolute Filter Rating (μm) | Nominal Filter Rating (μm) |
|---|---|---|---|
| 8 x 85 | 0.014 x 0.0126 | 318 - 340 | 250 - 255 |
| 12 x 64 | 0.024 x 0.0165 | 270 - 285 | 200 - 205 |
| 14 x 88 | 0.020 x 0.0130 | 225 - 245 | 150 - 155 |
| 20 x 150 | 0.0098 x 0.0070 | 155 - 165 | 100 - 105 |
| 24 x 100 | 0.0150 x 0.0100 | 115 - 125 | 80 - 85 |
| 30 x 150 | 0.0090 x 0.0070 | 95 - 100 | 65 - 70 |
| 40 x 200 | 0.0070 x 0.0055 | 65 - 70 | 55 - 60 |
| 50 x 250 | 0.0055 x 0.0045 | 55 - 60 | 40 - 45 |
| 80 x 400 | 0.0049 x 0.0028 | 43 - 48 | 35 - 40 |
Twill Dutch Weave Wire Cloth
| Mesh Count Per Inch (Warp x Weft) | Wire Diameter (Inches) | Absolute Filter Rating (μm) | Nominal Filter Rating (μm) |
|---|---|---|---|
| 20 x 250 | 0.0098 x 0.0079 | 110 - 120 | 98 - 105 |
| 30 x 360 | 0.0098 x 0.0060 | 90 - 100 | 80 - 84 |
| 40 x 560 | 0.0070 x 0.0040 | 70 - 75 | 47 - 52 |
| 80 x 700 | 0.0040 x 0.0030 | 35 - 40 | 24 - 26 |
| 200 x 600 | 0.0024 x 0.0018 | 28 - 32 | 19 - 21 |
| 165 x 800 | 0.0028 x 0.0020 | 24 - 26 | 14 - 16 |
| 165 x 1400 | 0.0028 x 0.0016 | 16 - 18 | 9 - 11 |
| 200 x 1400 | 0.0028 x 0.0016 | 12 - 14 | 5 - 6 |
| 250 x 1400 | 0.0022 x 0.0016 | 11 - 12 | 3 - 4 |
| 325 x 2300 | 0.0015 x 0.0010 | 8 - 9 | 2 - 3 |
Reverse Dutch Weave Wire Mesh
| Mesh Count | Wire Diameter (μm) | Micron Retention (μm) | Porosity (%) | Weight (kg/m²) | Thickness (mm) | ||
|---|---|---|---|---|---|---|---|
| Warp | Weft | Nominal | Absolute | ||||
| 720 x 140-150 | 35 | 110 | 15 | 16 - 20 | 52% | 0.65 - 0.70 | 0.15 - 0.18 |
| 630 x 125-130 | 42 | 125 | 17 | 22 - 26 | 53% | 0.75 - 0.85 | 0.20 - 0.22 |
| 600 x 100-105 | 42 | 140 | 25 | 34 - 38 | 57% | 0.75 - 0.80 | 0.22 - 0.23 |
| 280 x 60-70 | 90 | 200 | 40 | 54 - 60 | 56% | 1.34 - 1.55 | 0.38 - 0.40 |
| 175 x 40-50 | 150 | 300 | 60 | 65 - 72 | 55% | 2.10 - 2.40 | 0.57 - 0.60 |
| 130 x 30-35 | 200 | 380 | 80 | 95 - 105 | 57% | 2.70 - 3.10 | 0.77 - 0.80 |
Export Reliability
Supplying EPC Contractors & OEMs in Over 40 Countries
Ambani Metals maintains a comprehensive quality management system that ensures rigorous traceability, mechanical stability, and dimensional verification before dispatch.
Middle East & GCC
United Arab Emirates, Saudi Arabia, Qatar, Oman, Kuwait, Bahrain, Egypt, Jordan
Pan-Pacific & Americas
United States, Canada, Mexico, Brazil, Chile, Colombia, Peru, Australia, New Zealand
Europe & Asia-Pacific
Germany, United Kingdom, France, Italy, Spain, Netherlands, Japan, Singapore, South Korea
Quality Assurance & Export Packaging
Every wire mesh order undergoes strict optical projection aperture measurement, bubble point filtration testing, and material test certification (EN 10204 3.1). Meshes are packed in moisture-resistant wraps, heavy-duty cardboard tubes, and ISPM-15 heat-treated seaworthy wooden crates to prevent transit distortion during international freight handling.
- Full chemical and physical test reports provided with heat numbers
- Custom slitting, calendering, disc punching, and ultrasonic cleaning available
- Compliance with international standards: ASTM E2016, ISO 9044, DIN 17750
- Seaworthy protective packaging ensuring zero deformation across long hauls
