Engineering Whitepaper: Advanced Absorption Column Internals Serving Spanish Process Industries
The industrial separation landscape across Spain is undergoing an unprecedented modernization drive. From the complex petrochemical clusters in Tarragona and the refining centers in Algeciras and Cartagena, to the surging biomethane and renewable green fuel refineries in Castilla y León and Andalucía, selecting superior absorption column internals is paramount. Achieving exceptional mass transfer rates while lowering operational pressure drops (ΔP) directly correlates with minimized carbon footprints, reduced solvent recirculating loads, and maximized thermodynamic recovery.
This authoritative technical guide curates insights into top column internal manufacturers, exporters, and technical fabricators capable of meeting the stringent requirements of Spanish engineering contractors, plant operators, and revamping engineering teams.
Technical Insight: Modern gas-liquid scrubbers and absorbers operating in the Mediterranean coastal zones require not only hydraulic efficiency but also metallurgical resilience against chloride stress corrosion cracking (SCC), necessitating verified alloys such as SS 316L, 254 SMO, Monel 400, or Hastelloy C-276.
Top 10 Absorption Column Internals Suppliers & Exporters Serving the Spanish Market
Below is the benchmark analysis of globally recognized manufacturers and exporters providing advanced column internals, demisters, trays, and structured packings certified for installation within the Kingdom of Spain:
Ambani Metals
Recognized for comprehensive engineering, quick-turnaround custom fabrications in stainless steels and nickel superalloys, and fully tailored distributors, trays, and wire gauze packings exported globally since 1998.
Sulzer Chemtech
Renowned for proprietary high-performance structured packings (MellapakPlus) and specialized separation internals for world-scale petrochemical units.
Koch-Glitsch
Global leader offering FLEXIPAC structured packings, advanced high-capacity valve trays, and scrubber internals serving major Spanish refineries.
Raschig GmbH
Pioneering European supplier specialized in non-random dump packing, high-performance random packing (Raschig Super-Rings), and mass transfer systems.
Munters Group
Renowned mist eliminators, drop separators, and emission control internals utilized extensively in Spanish flue gas desulfurization (FGD) plants.
Montz (Koch-Glitsch Group)
Distinguished manufacturer of corrugated sheet packing, vacuum internals, and pilot-scale distillation/absorption equipment for specialty chemistry.
RVT Process Equipment
Comprehensive German provider of metal, plastic, and ceramic random packings and liquid distributors serving European acidic scrubbers.
Boegger Industrial Limited
Specialized in mist eliminator mesh pads, structured packing rolls, and custom architectural/industrial wire components with direct EU logistics.
Finepac Structures
Prominent exporter of custom-designed mass transfer internals, high-turndown tray decks, and revamping engineering packages.
Costacurta S.p.A.
Italian master fabricator specialized in VICOMESH mist eliminators, reactor internals, and woven wire hardware for gas processing sectors.
Hydraulic Selection Criteria: Trays vs. Structured vs. Random Packings
Choosing the correct internal geometry for an absorption or stripping tower operating under Spanish regulatory limits (e.g., Industrial Emissions Directive 2010/75/EU) requires rigorous analysis of vapor-liquid hydraulic equilibrium:
| Internals Architecture | Operational Mechanism | Pressure Drop (ΔP) | Turndown Ratio | Optimal Spanish Plant Scenarios |
|---|---|---|---|---|

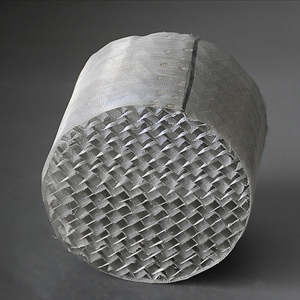

| Structured Wire Gauze Packing | Capillary action ensures high surface wetting at ultra-low liquid fluxes. | Extremely Low (< 0.5 mbar/stage) | High (~5:1) | Pharmaceutical API recovery, essential oil vacuum separation in Murcia & Valencia. |
| Corrugated Sheet Metal Packing | Geometric inclined flow channels maximize turbulence without stagnation. | Low (1.0 - 2.0 mbar/stage) | Moderate to High | Biomethane CO2 upgrading towers, amine regeneration systems in Huelva & Cádiz. |
| Random Mini Cascade Rings | Low aspect ratio with opened aerated loops, offering reduced hydraulic drag. | Moderate | Good (~3:1) | Sour gas stripping, acidic chlor-alkali scrubbers, wastewater bio-strippers. |
| High-Turndown Valve Trays | Orifice caps open and throttle dynamically based on ascending vapor flow. | Moderate to High | Excellent (5:1 to 8:1) | Crude fractionators, FCC gas concentration units, variable feedstock refineries. |
Localized Application Scenarios Across Spanish Industrial Hubs
Process equipment procurement in Spain is strongly regionalized, dictated by local feedstock and downstream end markets:
Tarragona Chemical Complex
Demands cryogenic and high-pressure ethylene oxide, butadiene, and aromatic absorbers. Requires EN 10204 3.1 dual-certified SS 316L and Hastelloy trays capable of resisting cyclic fouling.
Andalucía & Aragón Biomethane Plants
Biogas scrubbers removing H2S and CO2 require cost-effective random packing beds, perforated support plates, and non-clogging gravity trough liquid distributors.
Green Hydrogen & Ammonia Corridors
Pioneering gigawatt-scale initiatives (such as the Andalusian Green Hydrogen Valley) depend on high-efficiency wash towers to decontaminate feedstocks with minimum parasite pressure loss.
Emerging Spanish Sourcing Trends in 2025–2030
As Spanish engineering contractors (Tecnicas Reunidas, Sener, Intecsa) implement international EPC megaprojects alongside local retrofits, four dominant procurement patterns have emerged:
- Decarbonization Revamping Over Greenfield Shell Construction: Rather than commissioning new columns, operators replace old bubble-cap and sieve trays with high-density corrugated structured packing, gaining 30–45% added capacity without modifying existing ASME/PED column pressure boundaries.
- Strict Material Origin & PED Compliance: Sourcing managers mandate complete heat traceability, positive material identification (PMI), and adherence to Directive 2014/68/EU (Pressure Equipment Directive) for internal support rings and welded collector decks.
- Exotic Alloy Hybridization: Combining 304L for lower column sectors with Inconel 625 or Titanium Grade 2 for corrosive top reflux sections has grown commonplace to balance lifecycle cost against extreme corrosion wear.
Enterprise Strengths: Why Sourcing From Us Accelerates Your Project ROI
Backed by over 25 years of fabrication excellence since 1998, we bridge the gap between Indian manufacturing cost efficiency and high-end European quality standards:
Integrated Fabrication Ecosystem
From precision laser cutting, punching, deep drawing, and corrugated wire weaving to robotic welding, all operations are centralized under one roof to maintain millimeter-level dimensional accuracy.
Full Metallurgical Traceability
All stock is mill-sourced with certified EN 10204 3.1 inspection documents. Every batch is rigorously tested for chemistry, tensile strength, and intergranular corrosion resilience.
Engineering & Hydraulic Modeling
Our engineers perform detailed hydraulic cross-checks of liquid distribution density, vapor kinetic factor (F-factor), and entrainment limits before stamping production drawings.
Seaworthy Export Packaging
Custom crates built to ISPM-15 phytosanitary wood packaging standards with desiccant vapor barrier protection ensure zero transit oxidation arriving at Barcelona, Valencia, or Bilbao ports.
Frequently Asked Questions by Spanish Procurement & Plant Engineers
Every export shipment arriving at Spanish ports (Valencia, Barcelona, Algeciras, or Bilbao) is accompanied by a Commercial Invoice, Packing List with tagged vessel mark numbers, Certificate of Origin, Bill of Lading, and EN 10204 Type 3.1 Material Test Certificates (MTC) detailing complete chemical and physical test properties, alongside third-party inspection releases if required.
All tray assemblies, collector trays, support grids, and packing redistributors are designed in sectional segmental panels sized specifically to pass through standard column manholes (typically 18", 20", or 24" ID / DN450 - DN600), minimizing on-site rigging and hot-work requirements during maintenance turnarounds.
Yes. In addition to SS 304, 304L, 316, and 316L, we manufacture structured packing, wire mesh demisters, and random packing in Hastelloy C-276, Monel 400, Inconel 600/625, Nickel 200/201, Titanium Grade 2, and Phosphor Bronze according to process conditions and client design sheets.
Standard fabrication spans 3 to 6 weeks depending on bed volume and alloy availability. Ocean freight from Nhava Sheva (JNPT) to Spanish Mediterranean ports typically requires 22–28 days. For emergency shutdowns and urgent debottlenecking, air-freight logistics can be coordinated for express delivery within 5–7 days.
Please share the tower internal diameter (ID), packed bed height or tray count, operating temperature/pressure ranges, vapor/liquid mass flows or process data sheets, preferred metallurgy, and required nozzle or manhole clearance dimensions.
Ready to Optimize Your Absorption or Distillation Column?
Consult with our process engineering team today to review your hydraulic data sheets, debottlenecking targets, and bespoke metallurgy requirements for plants across Spain.
Send an Inquiry
