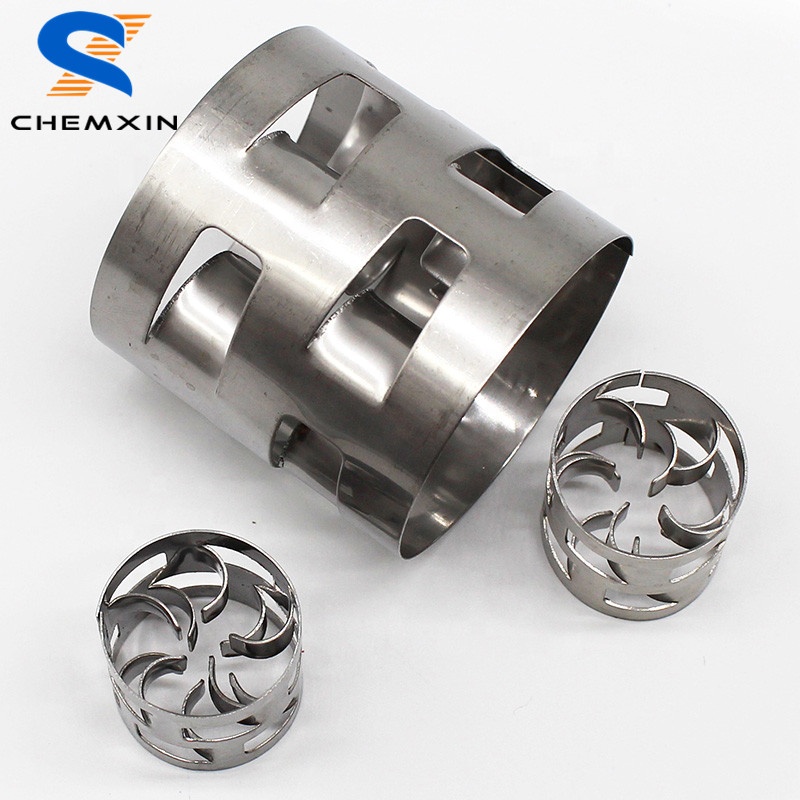

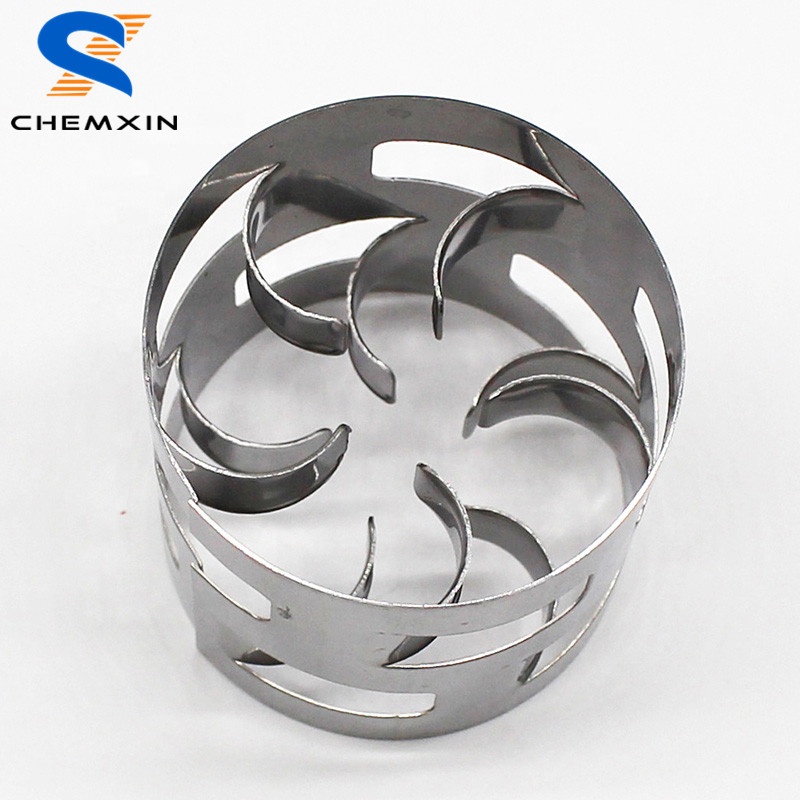

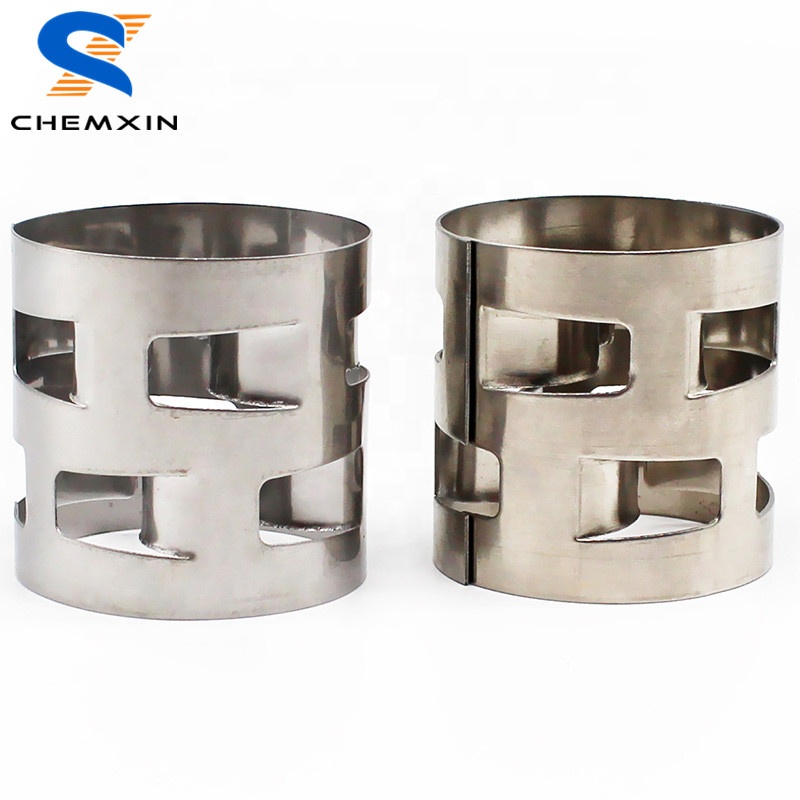

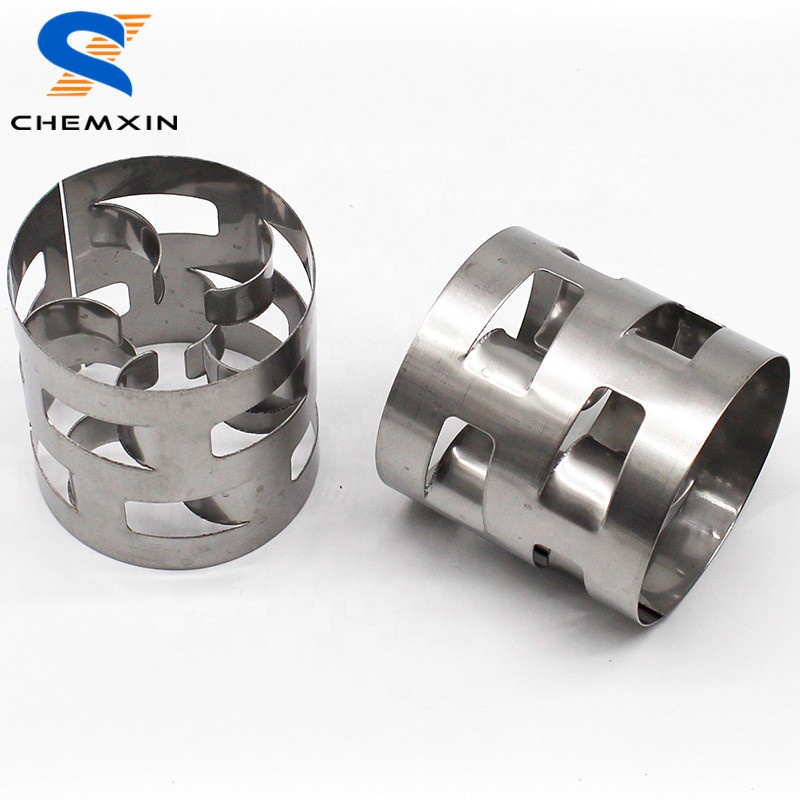

Metal Pall ring is made of materials like carbon steel, stainless steel or Aluminum alloy, etc. The product has features such as thin wall, heat resistant, high free volume, high capacity, low resistance, high separation efficiency and so on. It is especially suitable for rectification towers under vacuum to treat thermosensitive, decomposable, polymerizable or cokable systems, so it is widely used in packing towers in petrochemical industry, chemical fertilizer industry and environmental protection, etc...
| Model | Pall Ring | ||||||
| Material | Carbon Steel; SS 304, 304L, 410, 316, 316L, etc. | ||||||
| Size | mm | 16*16*0.3 | 25*25*0.3 | 38*38*0.4 | 50*50*0.5 | 76*76*0.6 | 89*89*0.7 |
| Bulk density | kg/m3 | 345 | 214 | 193 | 182 | 142 | 145 |
| Number | per m3 | 201000 | 51000 | 15000 | 6500 | 1830 | 1160 |
| Surface | m2/m3 | 346 | 212 | 145 | 106 | 69 | 62 |
| Free Volume | % | 95.5 | 96.2 | 96.7 | 97.5 | 97.4 | 97.1 |
| Typical Application | Absorption, scrubbing and stripping services | ||||||

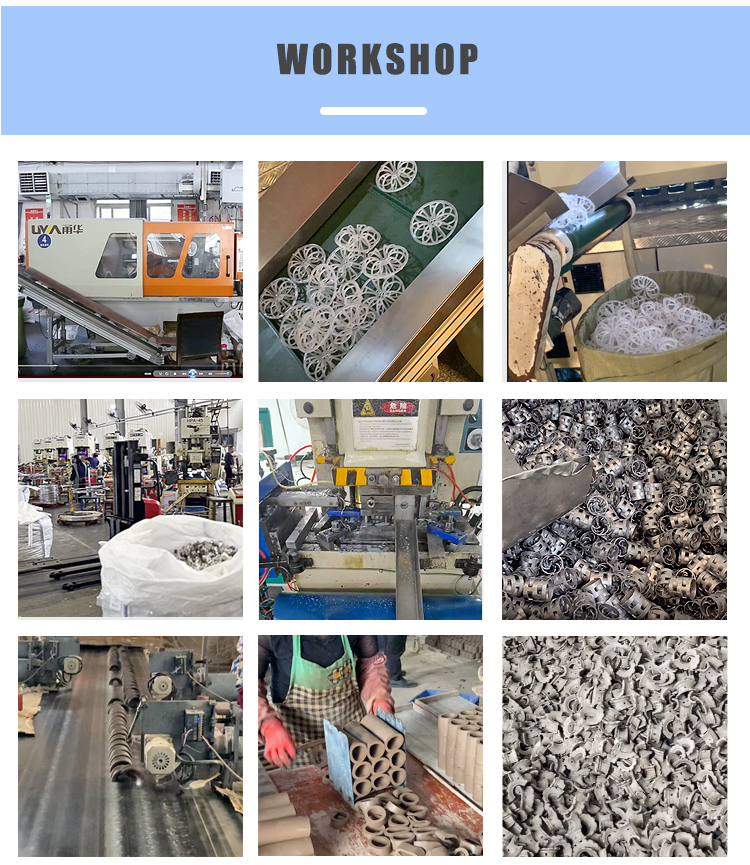

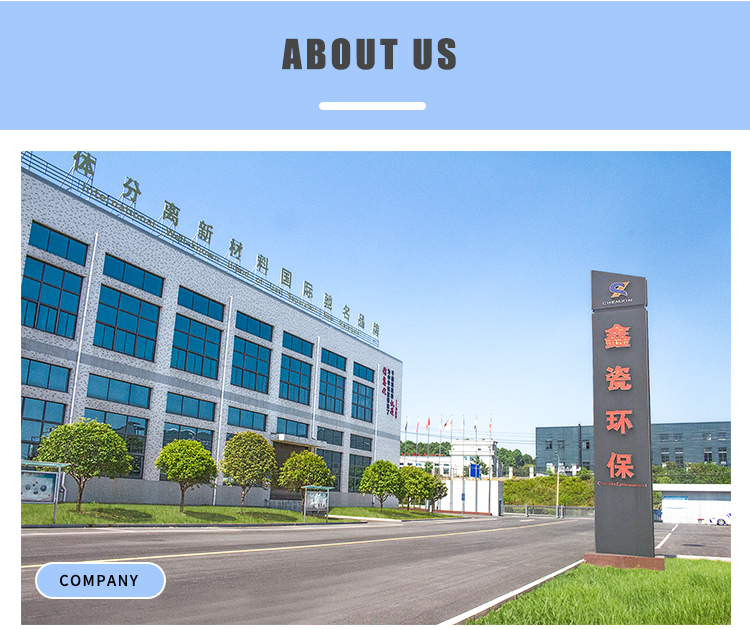

CHEMXIN is one of the biggest leading manufacturer of adsorbents, tower support medias and tower packings in China. Our factory covers an area of 42,000M2 with fully automatic production lines, intelligent warehouse, perfect production system, as well as excellent quality control system throughout all stages of production. We have nearly 20 years of factory production experience enables us to guarantee customer satisfaction. At present, our company is sinopec network resource market supplier. Our products have been widely used in electricity, petroleum, chemical, metallurgy, environmental protection, pharmaceutical, aerospace, aviation and other industries throughout the country. Exports to more than 130 countries and regions overseas. We have provided products and professional services for dozens of the world's top 500 for many years, like SINOPC, AIRLIQUID, GE, BAYER, TATA GROUP, SORBEAD ect.
Metal Pall rings can be manufactured using carbon steel, aluminum alloy, and various grades of stainless steel such as SS 304, 304L, 410, 316, and 316L, depending on operational and corrosion-resistance needs.
Key advantages include low wall thickness, high heat resistance, high void fraction/free volume, significant operating capacity, low pressure drop, and superior mass transfer separation efficiency compared to conventional packing.

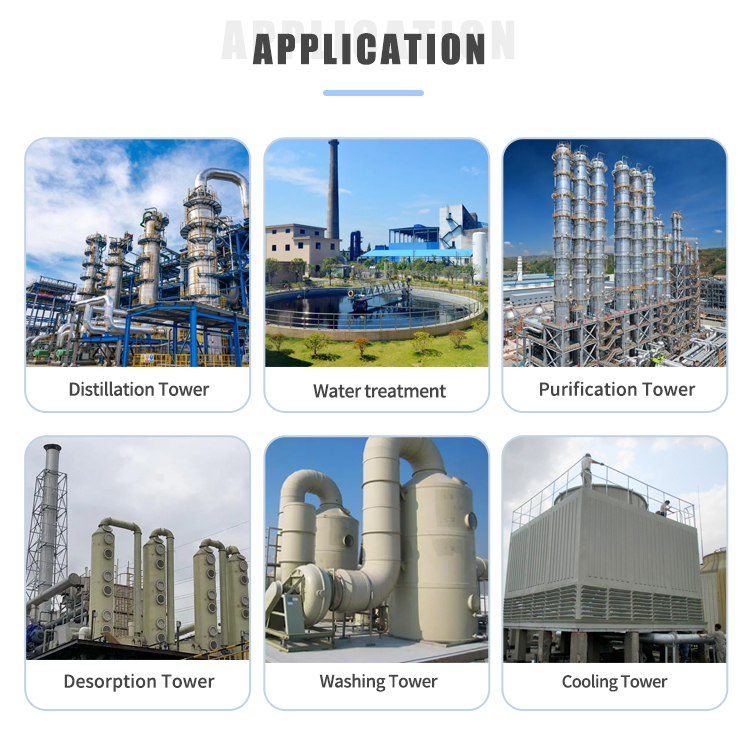

It is predominantly applied in rectification towers under vacuum, absorption systems, scrubbing units, and stripping operations within the petrochemical, chemical fertilizer, and environmental protection sectors.
Yes, metal Pall rings are particularly optimized for vacuum rectification towers where treating thermosensitive, easily polymerizable, decomposable, or cokable media demands minimal pressure drop.

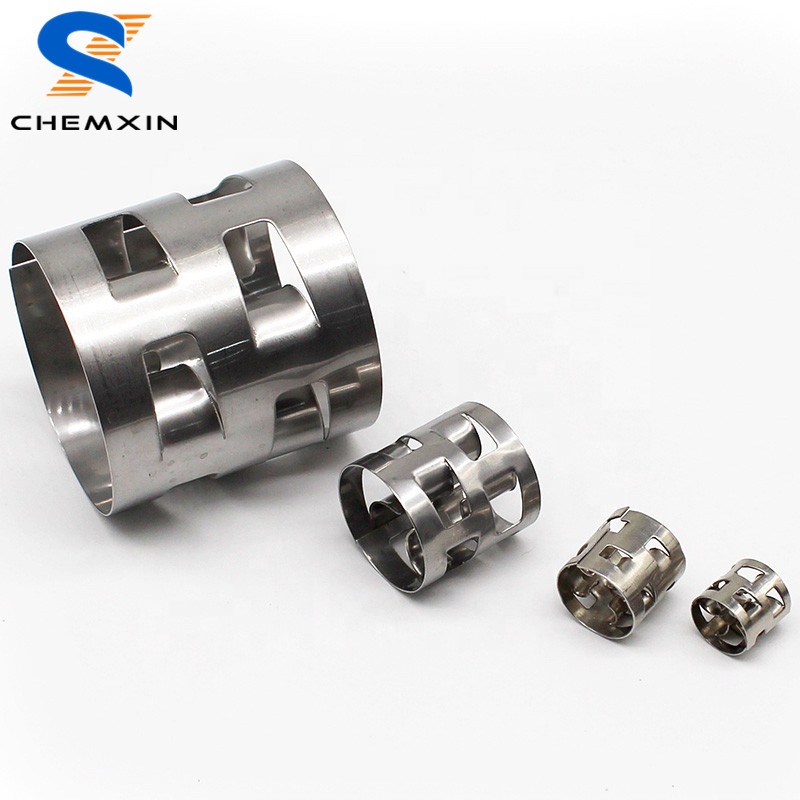

Standard dimensions include 16×16×0.3mm, 25×25×0.3mm, 38×38×0.4mm, 50×50×0.5mm, 76×76×0.6mm, and 89×89×0.7mm, each offering different surface area and bulk density metrics.
Yes, Chemxin metal Pall rings are engineered for versatile performance across both deep vacuum towers and high-pressure towers, significantly expanding operational capacity compared to conventional column trays.
