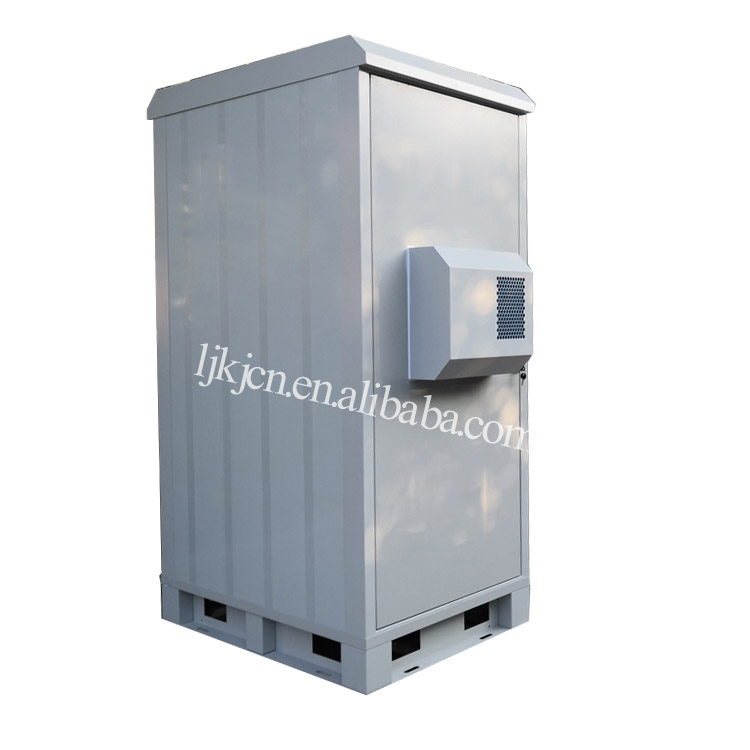

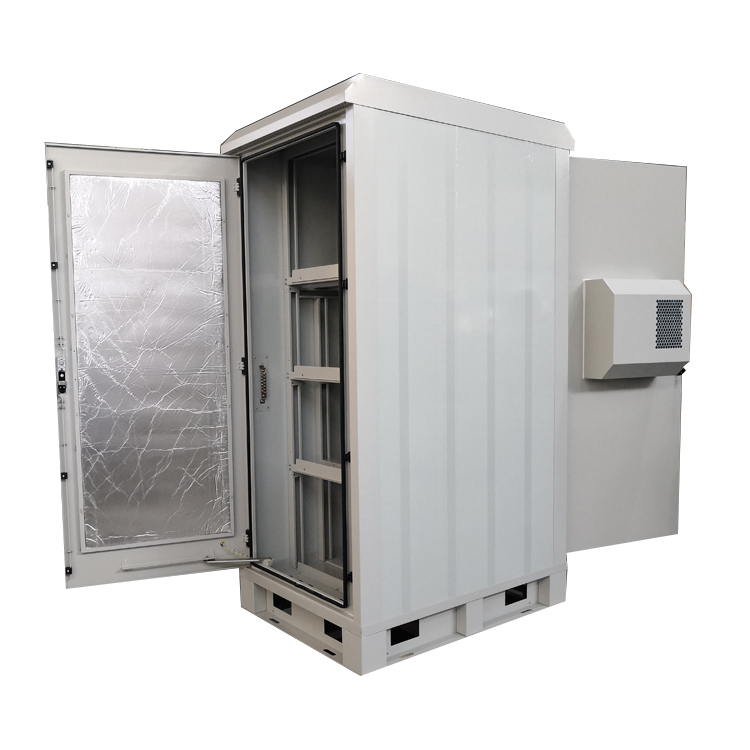

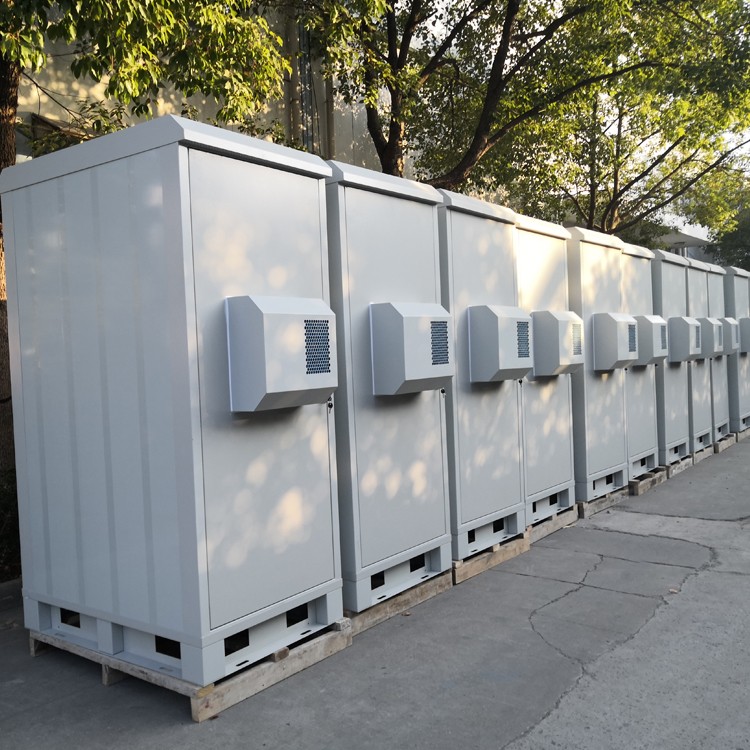

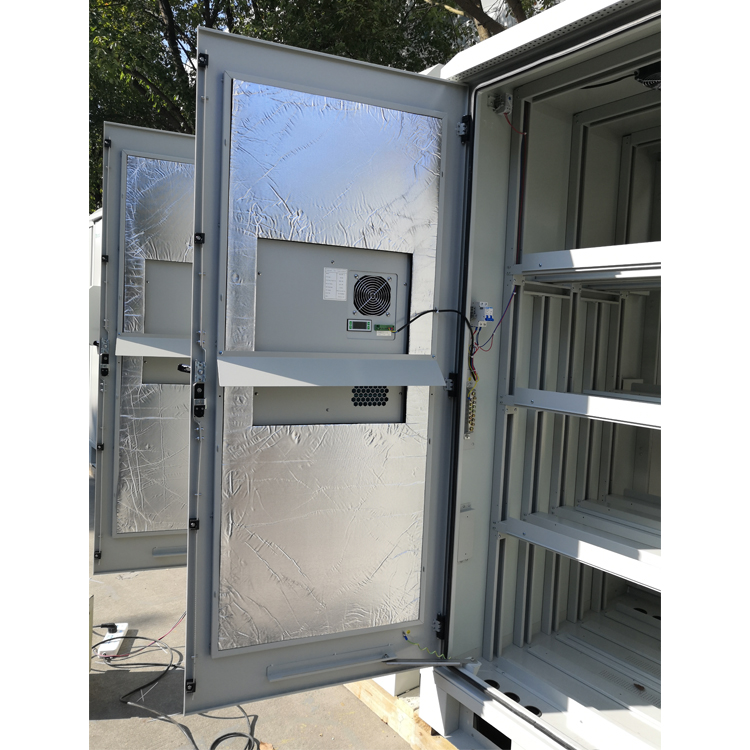

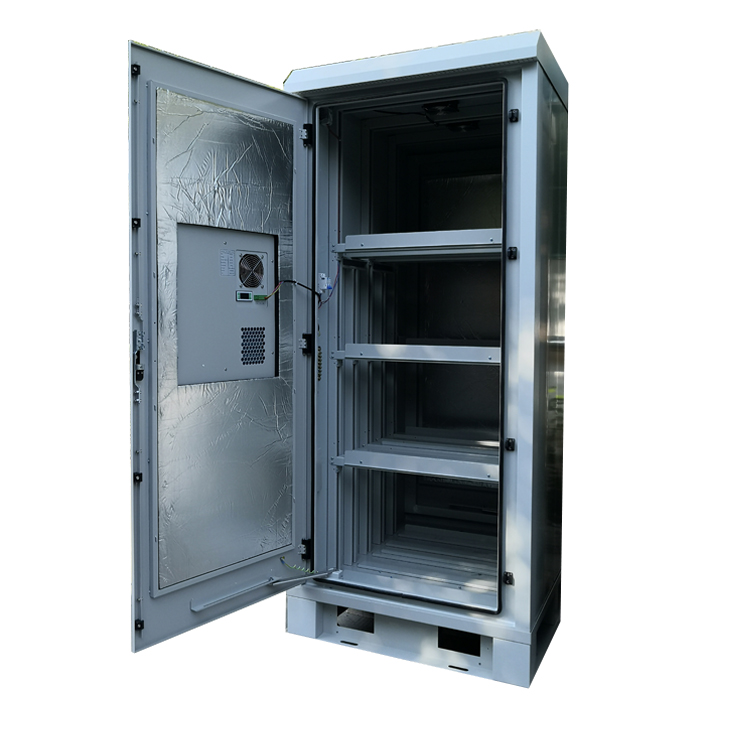

IP55 IP65 42U Waterproof Enclosure Outdoor Mini Shelter Battery Storage Cabinet with 600w Dc air Conditioner

Product Description

Product Description

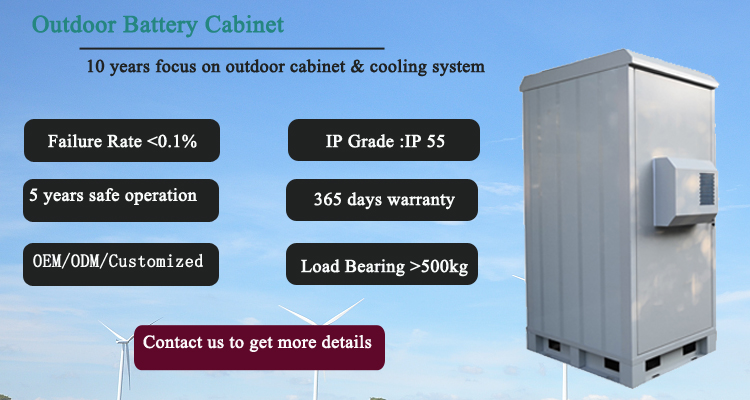

Outdoor Telecommunication Cabinet
  • Strong Rack Design: Built inside to be fully equipped with telecom equipments, power source, battery, temperature control device, and other attachments.
  • Digital Display: Features temperature setting, temperature alarm, indoor and outdoor temperature monitoring, and a full suite of alarm parameter displays.
  • Thermal Insulation & Fire Protection: Constructed with materials that feature low thermal conductivity and fireproof performance for optimal heat insulation.
  • Versatile Installation: Engineered for deployment in extreme environments, including mountain peaks and high-rise building roofs.
  • Comprehensive Environmental Protection: Wind-proof, sand-proof, rain-proof, sun-proof, and anti-theft design rated at IP55 protection level.
  • Customization Available: Fully supports custom-made specifications and requirements.
Product Features
  • Attractive powder coat finish
  • Durable galvanized steel base
  • Anti-theft four-point outdoor cabinet lock with high-security keyhole protection
  • IP55 certified enclosure with double steel wall and roof construction integrated with high-grade insulation
  • High-performance DC air-conditioning system for critical heat removal
  • Built-in door stopper mechanism to safely secure the door during field maintenance
  • Certified seismic resistance: Successfully passed earthquake intensity 8 performance tests

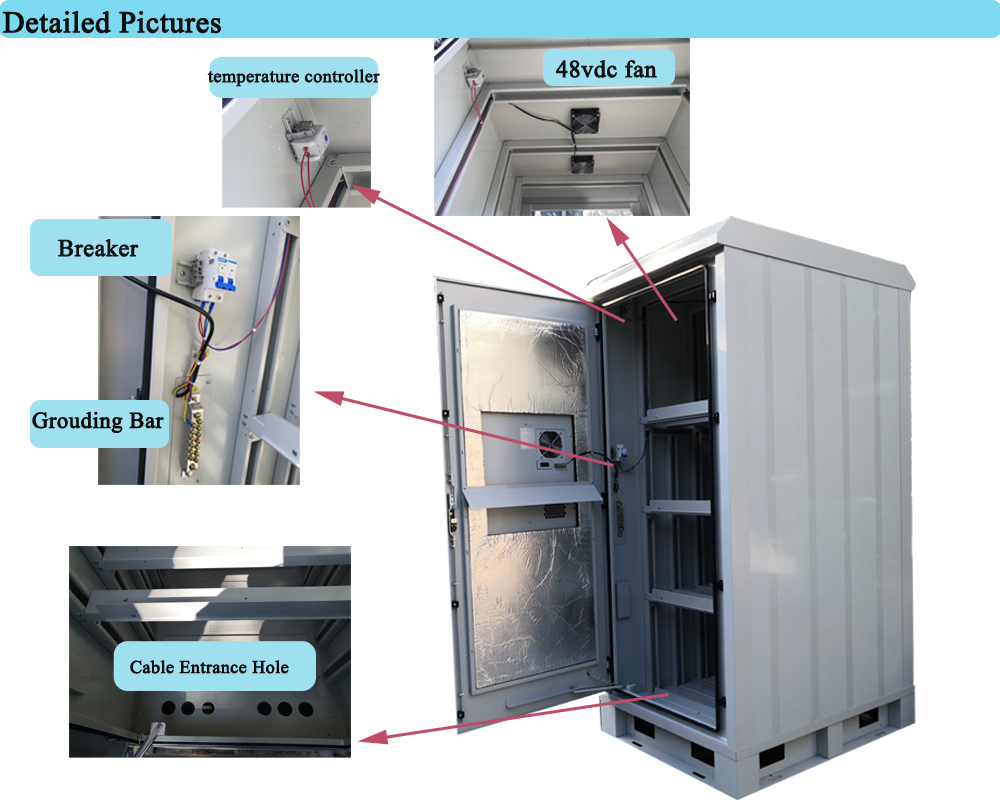

Cabinet Features Overview
Technical Data Sheet
Internal Dimension (H*W*D) Standard 42U * 800 * 1050 mm
External Dimension (H*W*D) Standard 2150 * 900 * 1150 mm
Layout 1 compartment for equipment and battery integration
Door & Lock Two access doors equipped with specialized outdoor anti-theft locks (padlock supported)
Hinge Embedded heavy-duty hinges
Material & Insulation Left and right panels made of color steel plate; remaining panels of galvanized steel. 45 mm PEF insulation cotton
Assembly Structure Modular assembly
Cable Entry Bottom feed: φ50 * 5 knockouts, or customized layout
Finish Color RAL7035 / Pantone 428C electrostatic powder coating
Equipment Mounting Standard 19-inch rack framework
Ingress Protection IP55 compliant
Acoustic Noise Level 60 - 65 dB
Cooling System 600W 48VDC Air Conditioner + DC48V cooling fan group
Cabinet Lighting DC 48V LED lamp (automatic illumination upon door open, auto-off when closed)
Working Temperature -40°C ~ +55°C
Storage Temperature -50°C ~ +70°C
Transport Temperature -50°C ~ +70°C
Product Application

The Outdoor Telecommunication Cabinet is primarily developed for wireless communication base stations, accommodating next-generation 4G/5G systems, integrated telecommunication networks, access and transmission switching nodes, as well as critical emergency communication operations.

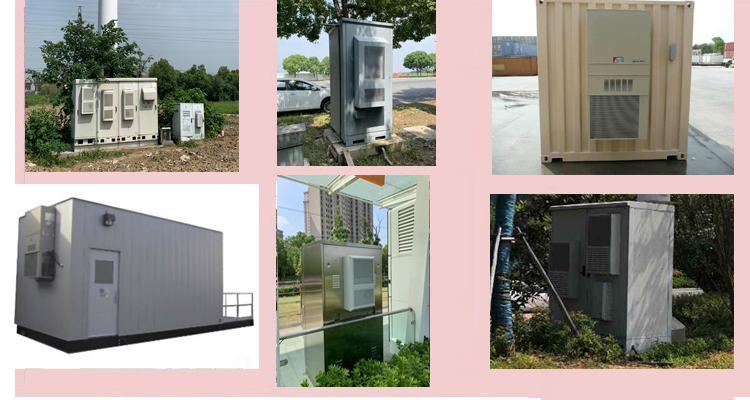

Telecommunication Application Scenario

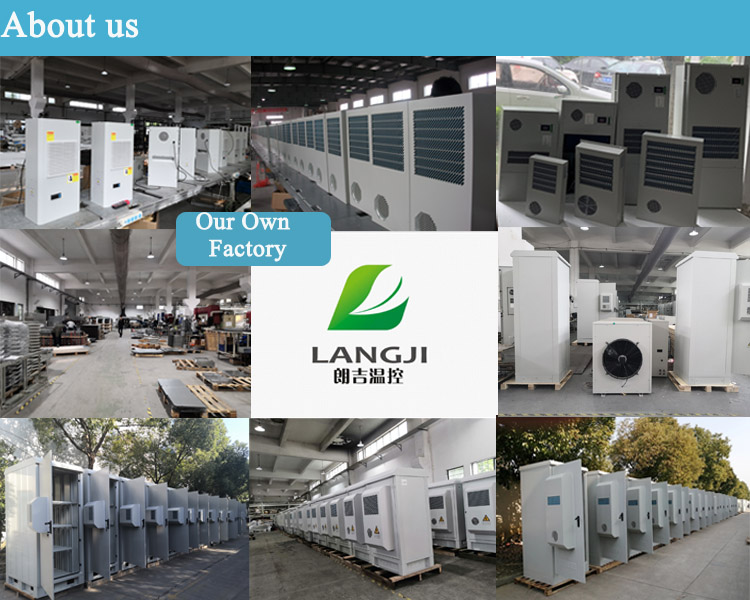

Equipment Setup
Cabinet Deployment View 1

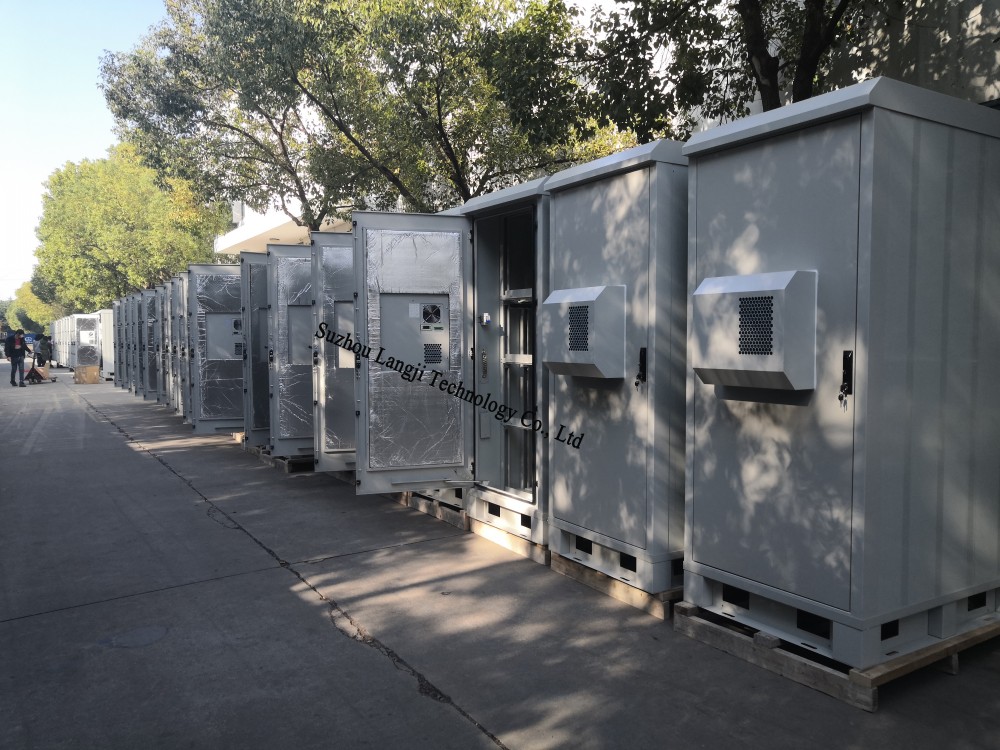

Cabinet Deployment View 2
About Suzhou Langji Technology

Langji Technology Co., Ltd. was founded in 2009. It is a high-tech enterprise integrating R&D, manufacturing, and technical sales. Located at the coast of Taihu Lake in Suzhou City, the company operates with a registered capital of 50 million RMB. The modern facility covers 5,000 square meters, employs around 200 skilled staff members, and achieves annual sales approaching 100 million RMB.

Core Applications & Thermal Solutions
  • Telecommunications Infrastructure
  • Data Centers & Edge Facilities
  • Cellular Base Stations
  • Solar-Powered Deployments
  • Wireless Cell Sites & Switching Nodes
  • Industrial Automation Control
  • Battery Energy Storage Systems (BESS)

Suzhou Langji Technology Co., Ltd. commits to being well-grounded and ambitious, making dedicated efforts to build an exceptional international brand for precision thermal control. Following a comprehensive 3-point strategy based on technology, production strength, and dedicated service, Langji delivers tailored models of precision air conditioners, heat exchangers, energy-saving systems, and climate-controlled battery shelters.

Production processes follow the ISO9001 and ISO14001 international management systems, while units maintain compliance with CE and CCC certifications. Langji products are consistently trusted and utilized globally across China, India, Russia, the Middle East, Southeast Asia, South America, Africa, Europe, and the United States.

Packing & Delivery
Packaging Process
Our Exhibition
Exhibition Presence 1
Exhibition Presence 2
Exhibition Presence 3
Exhibition Presence 4
Exhibition Presence 5
Exhibition Presence 6
Exhibition Presence 7
Exhibition Presence 8
Exhibition Showcase
Contact Us
Email [email protected]
Phone Number +86-18112559377
WeChat / WhatsApp / Skype +86-13911538649
Telephone +86-512-67362668
Fax +86-512-66592789
Manufacturer Suzhou Langji Technology Co., Ltd.
Address No. 58, Tongxin Road, Tongan Town, High-Tech Zone, Suzhou, Jiangsu Province, China
Website english.szlangji.com
Frequently Asked Questions (FAQ)
Do you have an MOQ requirement for outdoor battery cabinets?
We maintain a low MOQ policy. A sample order of 1 piece is available for quality verification.
What are your standard payment terms?
Our typical term is a 50% deposit via T/T with the remaining balance settled before delivery. We also accept L/C, Trade Assurance, and Western Union.
Are you an original equipment manufacturer (OEM)?
Yes. We are an experienced manufacturer with dedicated in-house R&D engineering and complete sheet metal and assembly lines.
Can the enclosure and cooling units be customized?
Yes, we provide full OEM and ODM capabilities, enabling bespoke dimensions, cooling capacities, interior layouts, and personalized logo branding.
What shipping methods are available and what is the transit timeframe?
For urgent or sample shipments, courier/air transport (DHL, FedEx, UPS, TNT, EMS) takes around 5-12 days. Bulk containerized cargo is shipped by sea and generally takes 1-2 months depending on the port of destination.
What is the warranty coverage on your products?
All equipment, precision climate units, and integrated cabinet systems carry a standard 12-month quality warranty.
