Fine chemical, flavours factory, isomer separation. The separation of thermally sensitive materials, testing tower and the improvement of tower.

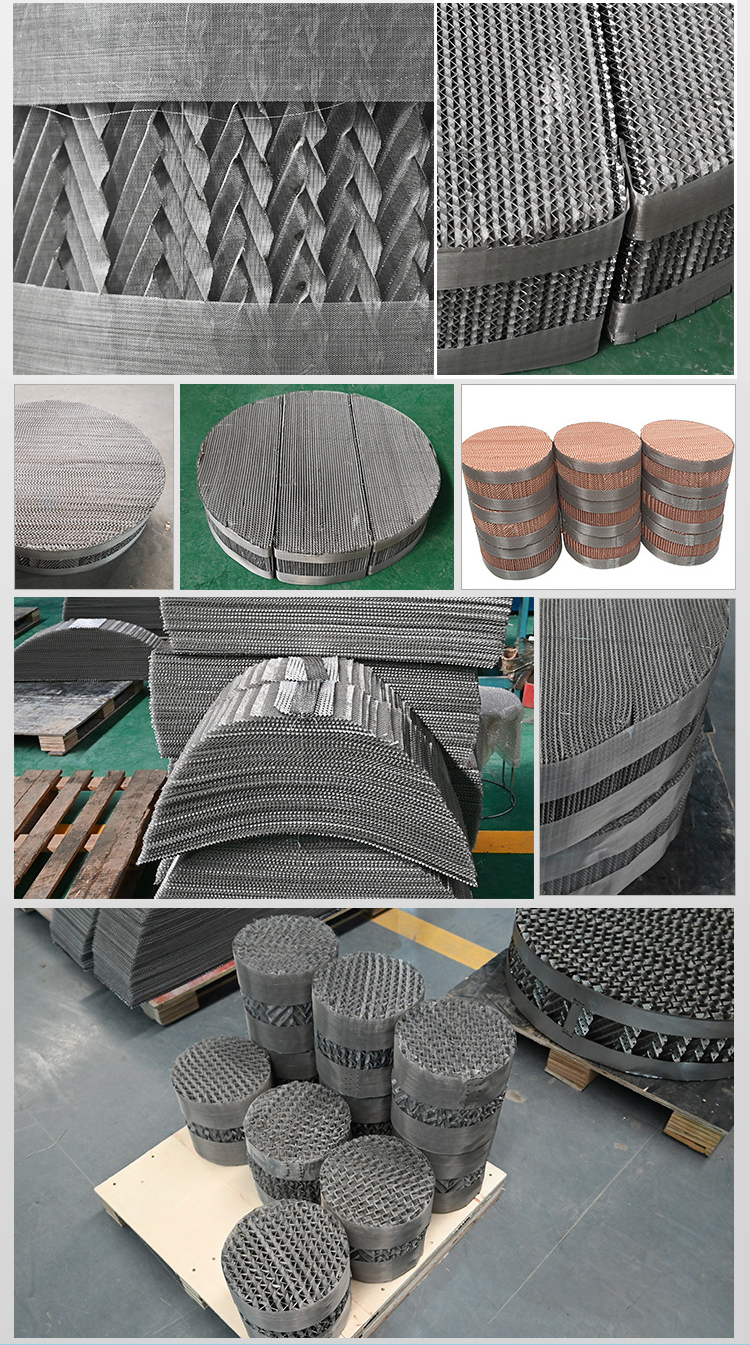

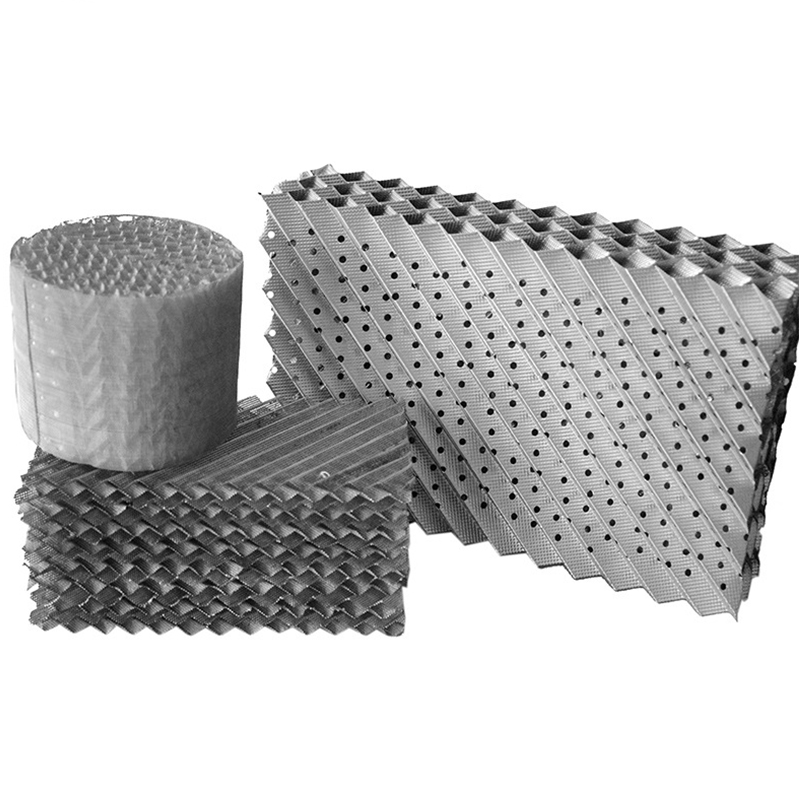

Metallic Structured Packing: Metallic Structured Packings include perforated & corrugated, plate gauze, pricked & corrugated plate. Corrugated wire gauze and annular corrugated plate.

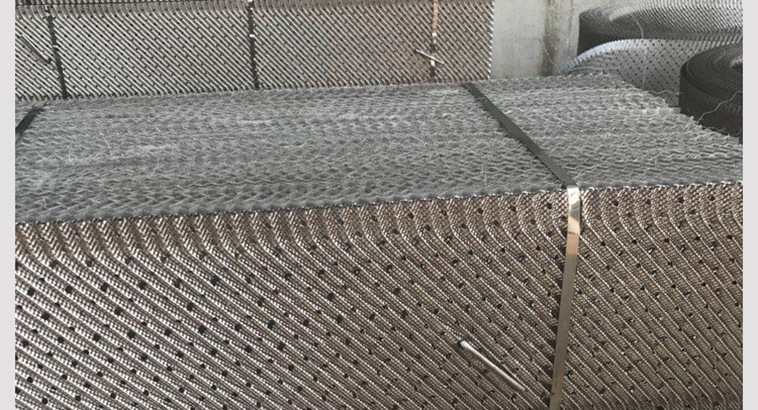

Structured packing is a type of packing used for gas and liquid filtration applications. Except for the wire gauze structure packing, the structured packing can also be made of various materials of perforated plates. Perforated plate structured packing can be made of stainless steel, ceramic and plastic materials. And the perforated plate structured packing can be perforated into round holes or protruded holes. Except for the material and surface of the plate, the angle of the structured packing can be 30° or 45°, which is named as X type and Y type. Structured packing is widely used in the packing towers for gas and liquid foam separating, filtering and purifying.

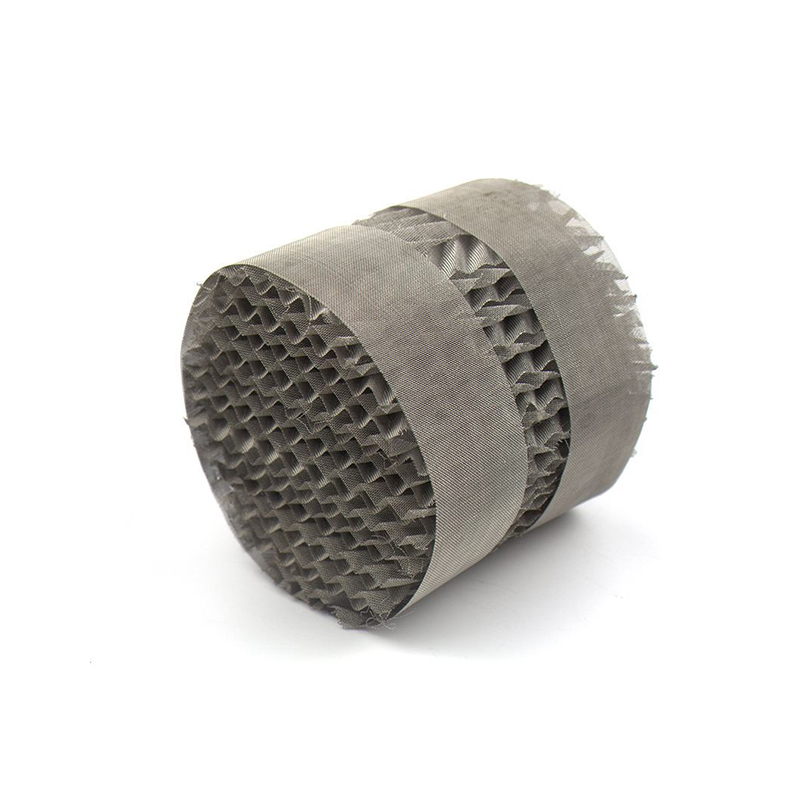

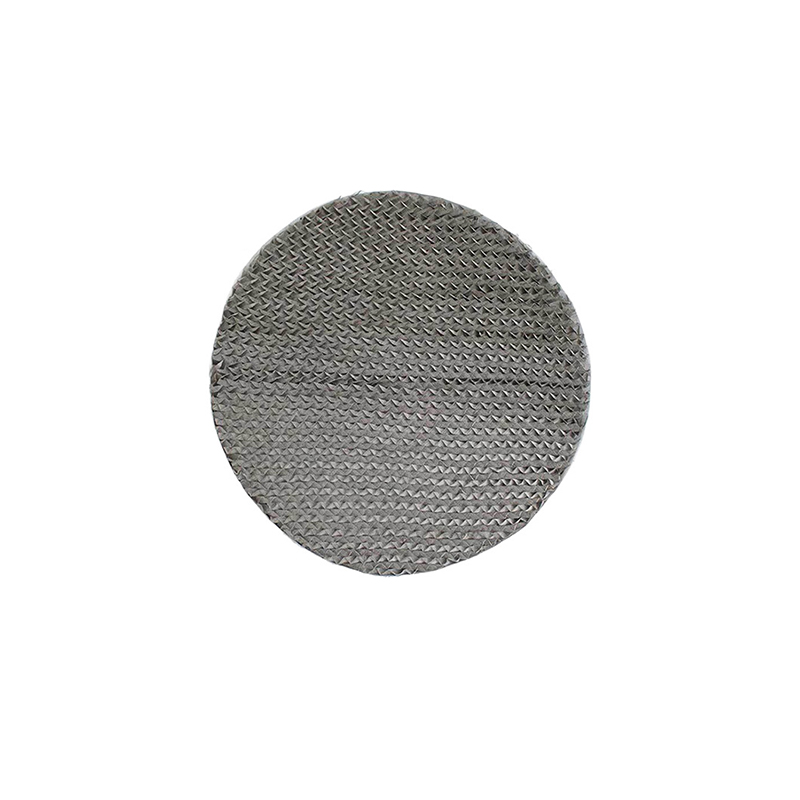

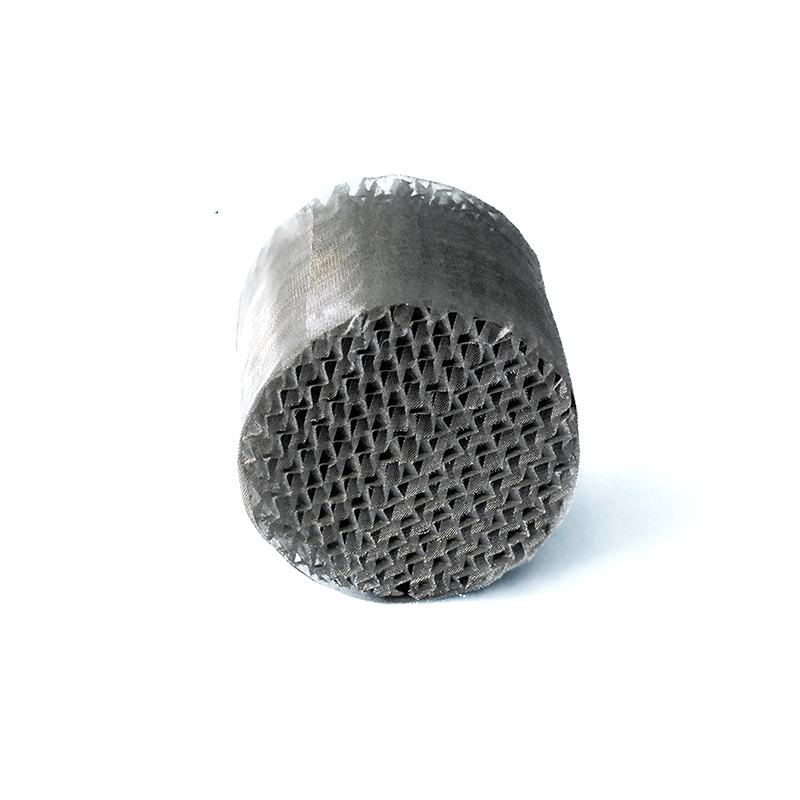

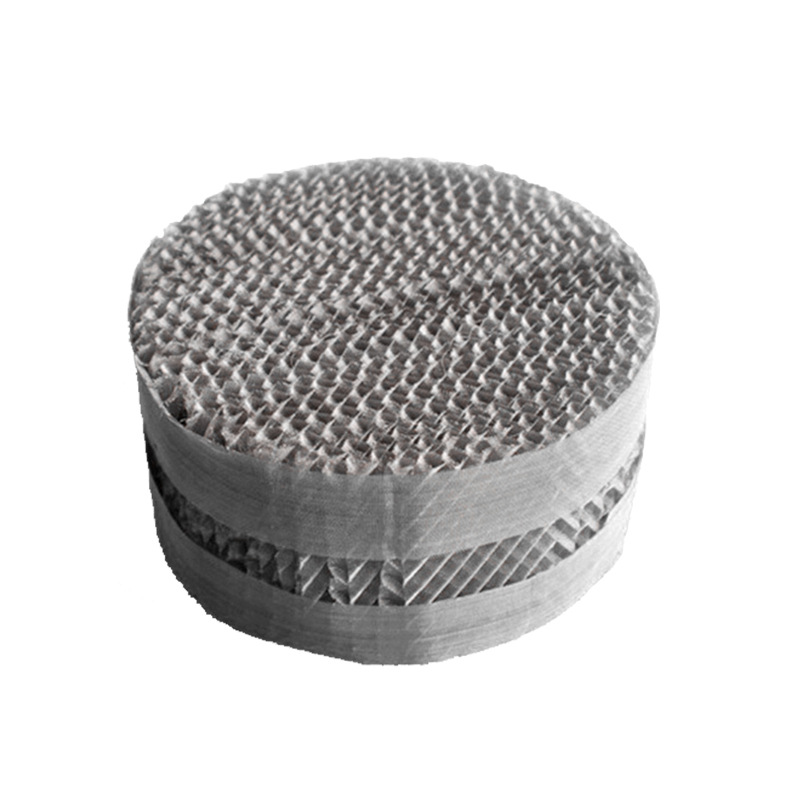

| Model Type | Wire Gauze Structured Packing | |||||||
| Material | SS 304, 304L, 410, 316, 316L, etc. | |||||||
| Model | Specific surface (m²/m³) |
Bulk density (kg/m³) |
Void ratio (%) |
Obl. angle | ΔP (Pa/plate) |
Theo. plate (piece/m) |
HETP (mm) |
F factor m/s (kg/m³)0.5 |
|---|---|---|---|---|---|---|---|---|
| 250AX | 250 | 125 | 95 | 30° | 100-400 | 2.5~3 | 100 | 2.5-3.5 |
| 500BX | 500 | 250 | 90 | 30° | 400 | 4~5 | 200 | 2.0-2.4 |
| 700CY | 700 | 350 | 85 | 45° | 600-700 | 8~10 | 333-400 | 1.5-2.0 |
| Typical Application | Absorption, scrubbing and stripping services | |||||||

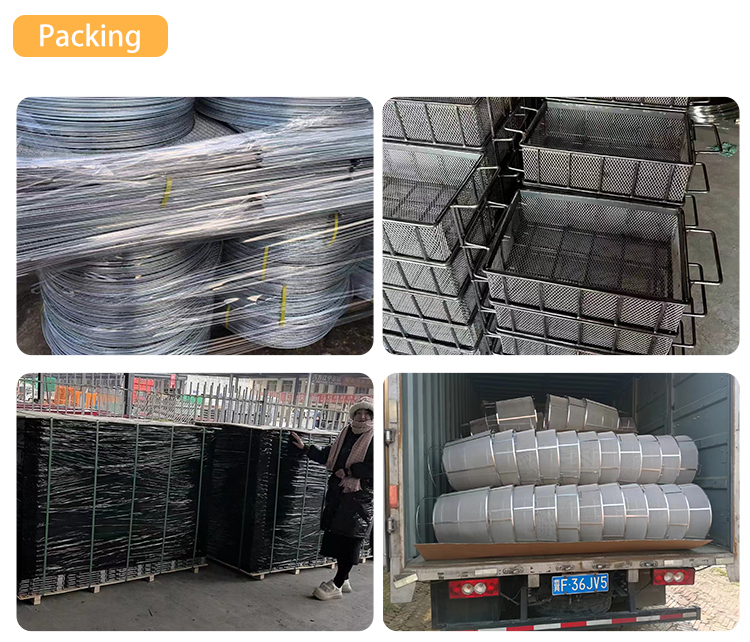

| Package | Carton box; wooden box | |||||||
| Warranty | a) By National Standard HG/T 4374-2012; HG/T 21556.1-1995 | |||||||
| b) Offer lifetime consultation on problems occurred | ||||||||

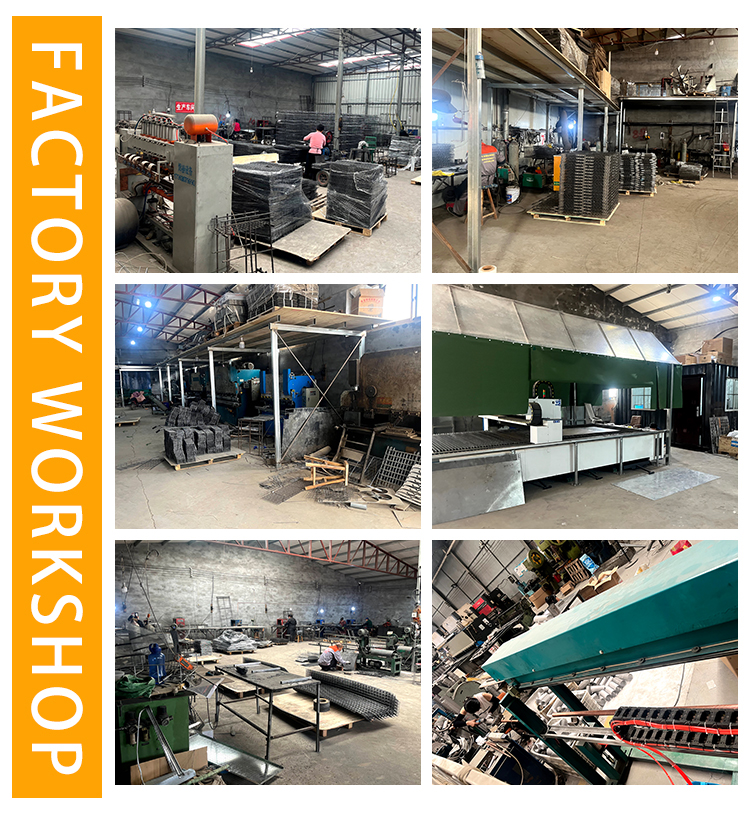

We are a direct factory that owns production lines and workers. Everything is flexible, and there is no need to worry about extra charges by middle men or traders.
