Which tray type should I choose for my distillation column?

Sieve trays suit clean services with steady loads at the lowest cost. Fixed valve trays add fouling resistance and better turndown. Floating valve trays handle wide load variations with high efficiency. Bubble cap trays are used where very low liquid rates or positive liquid sealing are required. Our engineers recommend a tray type after reviewing your vapor and liquid loads, operating pressure and fouling tendency.

When is structured packing better than trays?

Structured packing is generally preferred for vacuum distillation, heat-sensitive products and revamps that need more capacity or efficiency within the same shell, because it offers a much lower pressure drop per theoretical stage than trays.

What materials do you manufacture column internals and wire mesh in?

Standard materials include stainless steel 304, 304L, 316 and 316L. Wire mesh is also produced in Hastelloy, Monel, Inconel, nickel, titanium, copper, brass and phosphor bronze. Other alloys can be supplied to project specification.

Do you export to buyers outside India?

Yes. Ambani Metals exports to more than 20 countries including the UAE, USA, Australia, Canada and the wider Gulf region, with export packing and shipping documentation prepared for each order.

What information is needed for an accurate quotation?

Share the column diameter, number of trays or packed bed height, material of construction, design pressure and temperature, process data sheet or drawings, required quantity and delivery destination. For wire mesh, provide alloy, mesh count, wire diameter, weave type and roll or panel size.

Product Description & Application

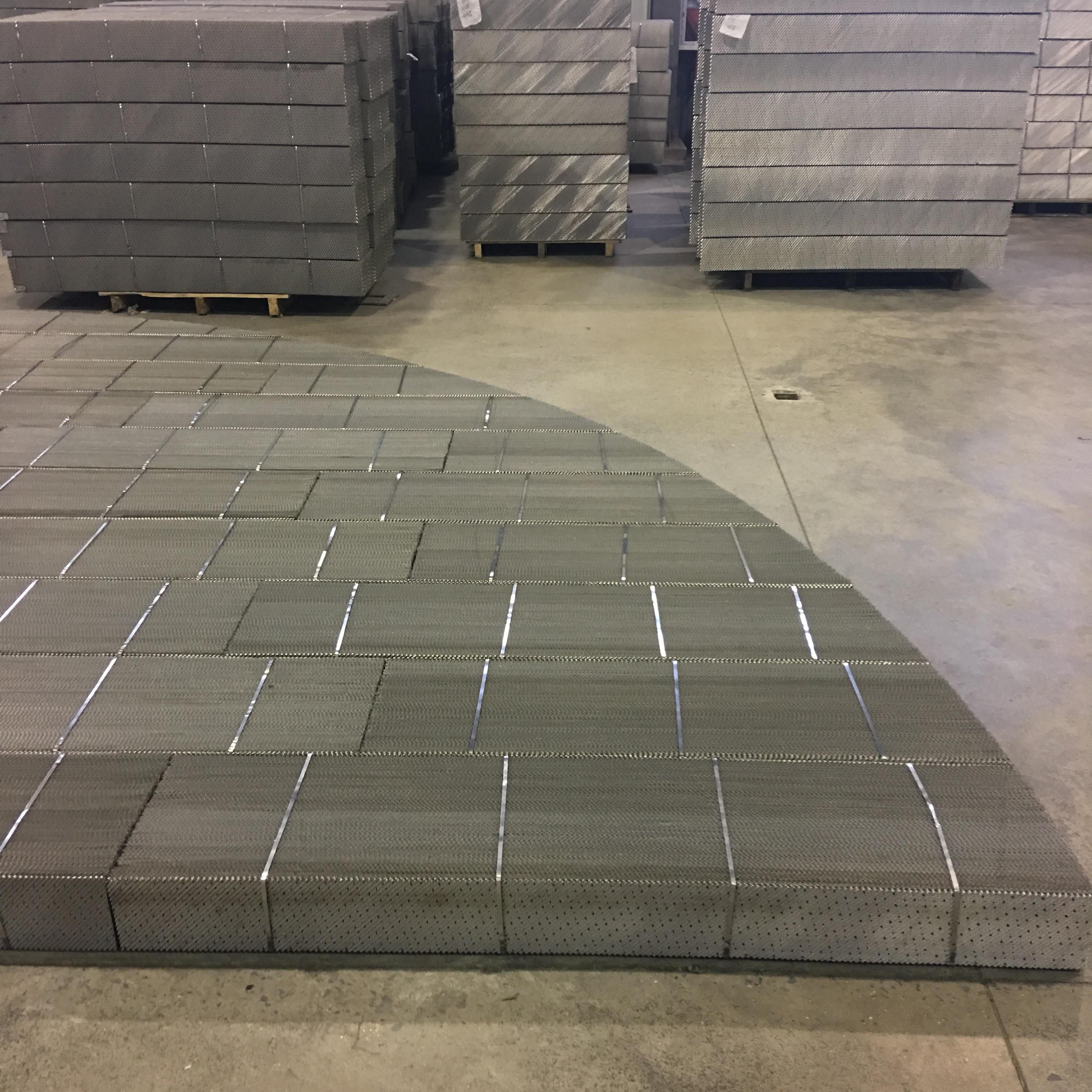

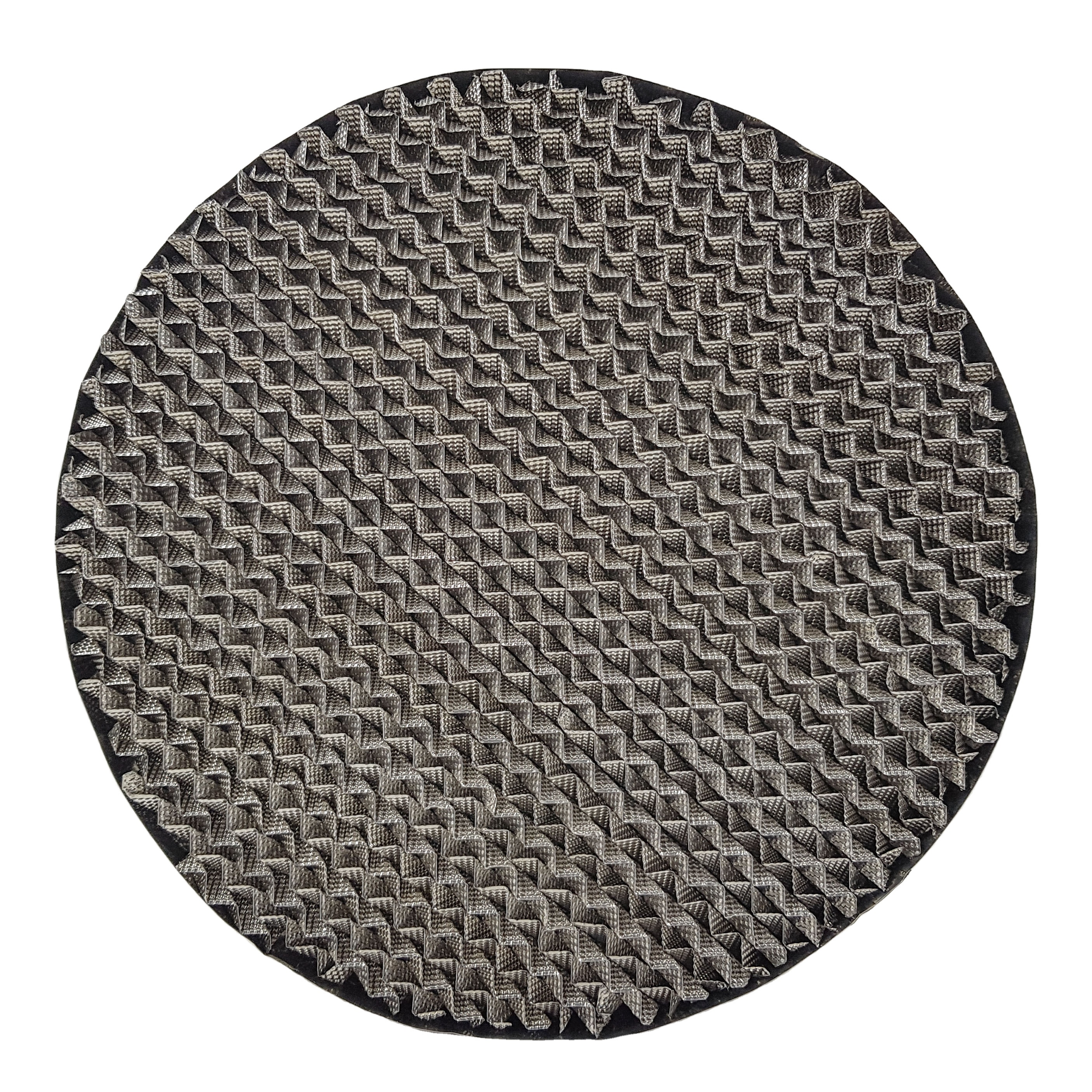

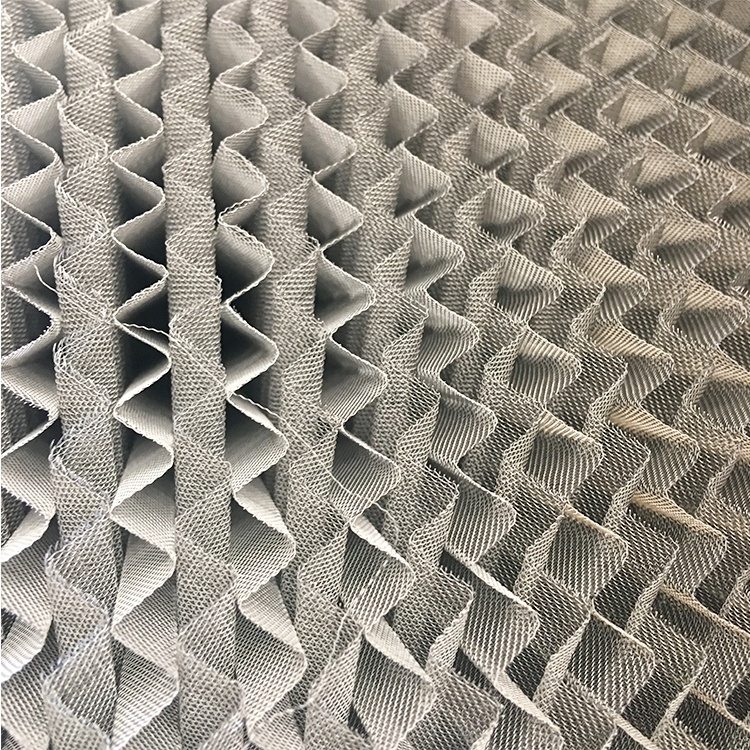

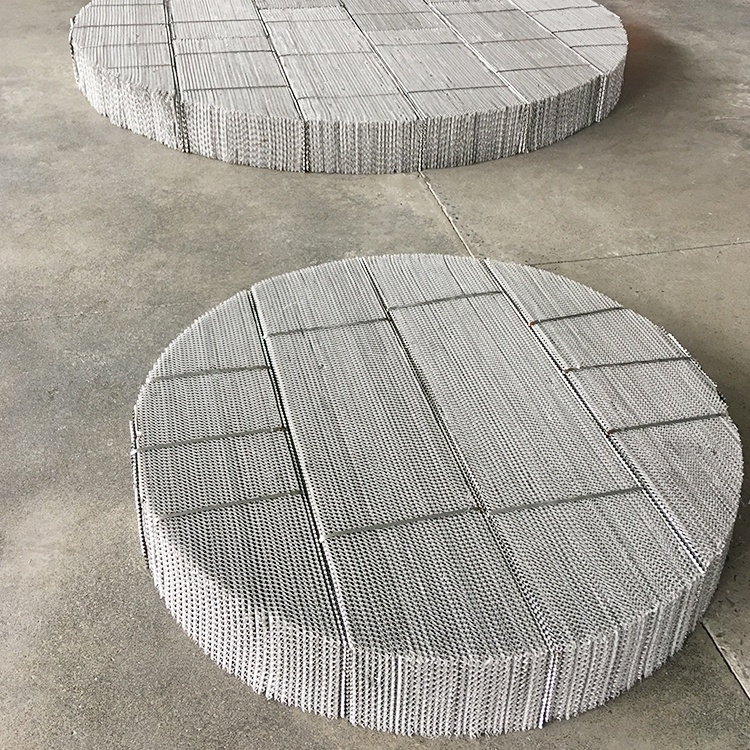

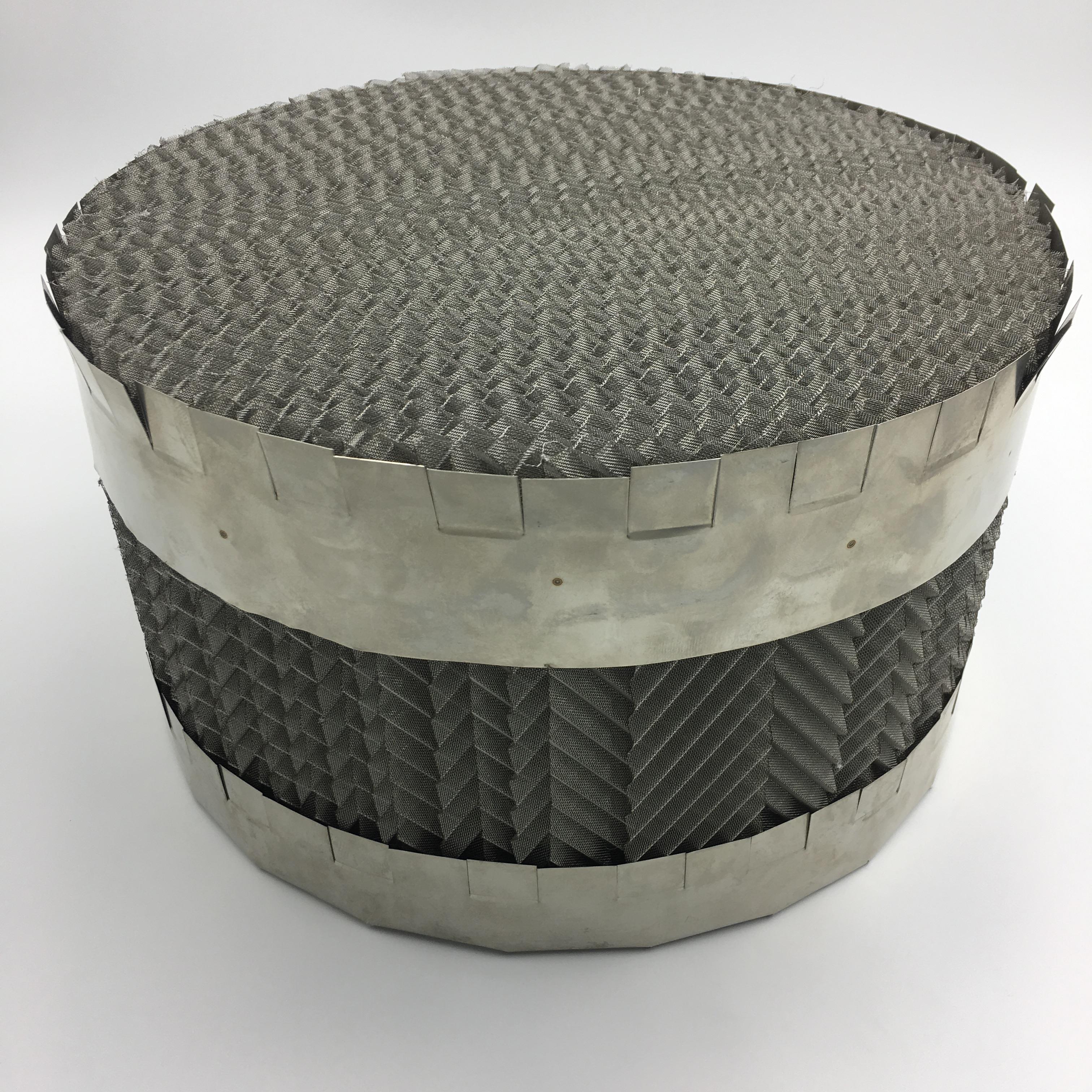

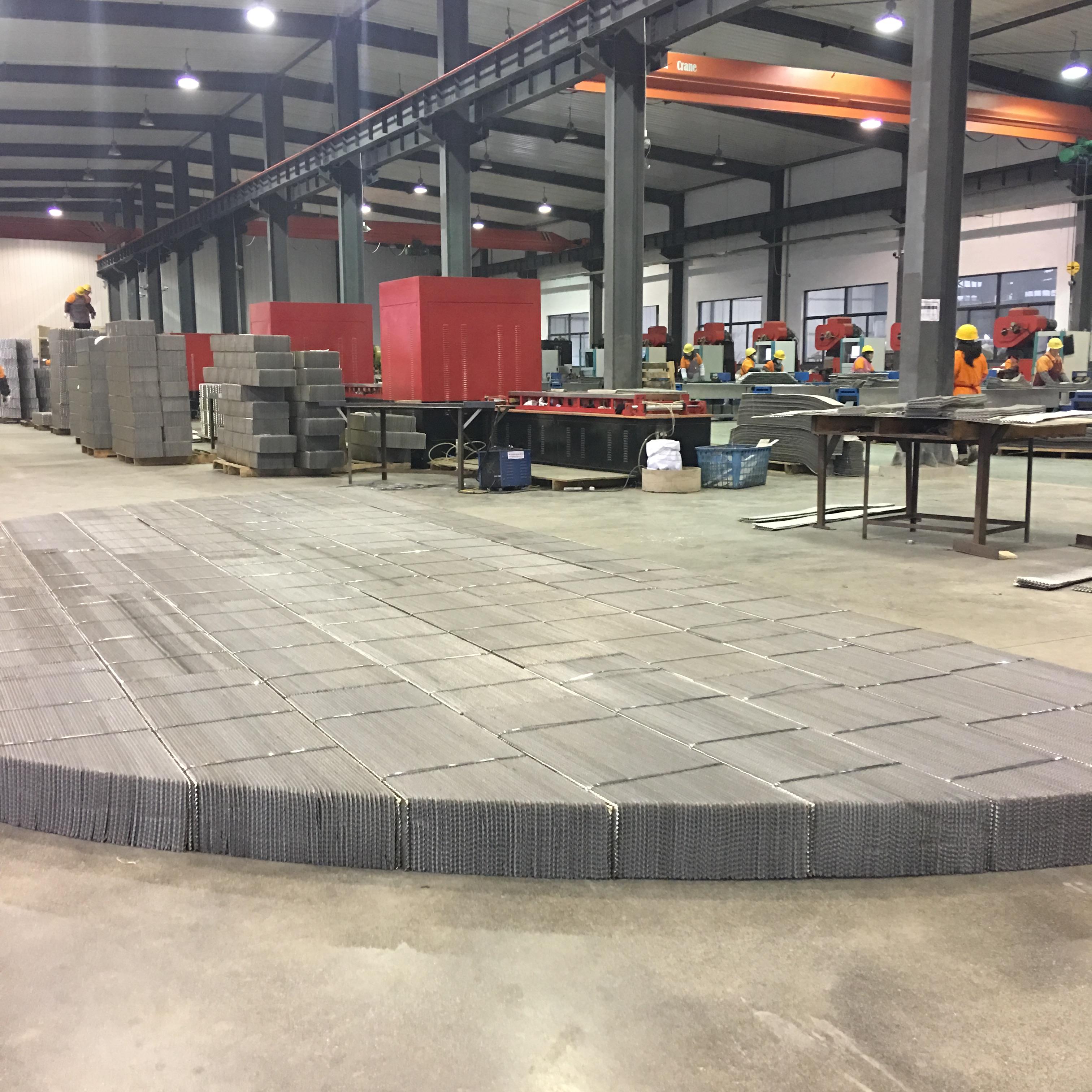

304 BX500 ZWF Wire Gauze Structured Packing for Air Separation

This series packing is widely used in distillation, absorption, regeneration, heat transfer, stripping, flash evaporation, mist collecting, etc. It delivers large flux and high separation efficiency.

If you are not sure which type to choose, please feel free to contact with our sales engineer.

Type	Specific area (m²/m³)	Void (%)	Hydraulic diameter (mm)	F Factor	Theoretical plate (No/m)	Pressure drop (mmHg/m)
ST-CY	700	87-90	5	1.3-2.4	4-6	5
ST-BX	500	95	7.3	2-2.4	3-4	1.5

Customer: ALFA LAVAL (DEMARK / INDIAN / BRAZIL / COLOMBIA)

Brand: SUTONG

Product Name:

Structured packing
Liquid distributor

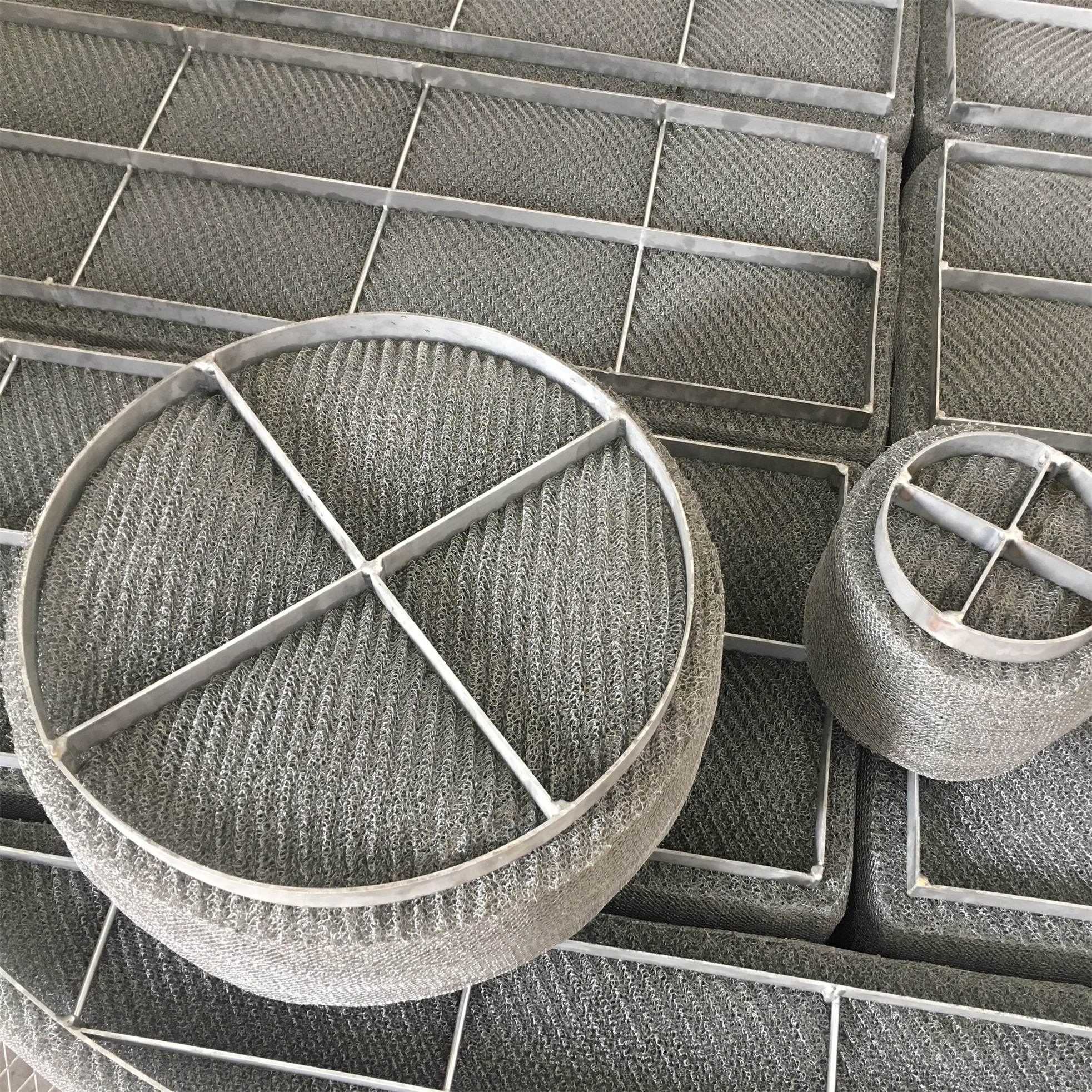

Demister
Bed limiter
Support gird

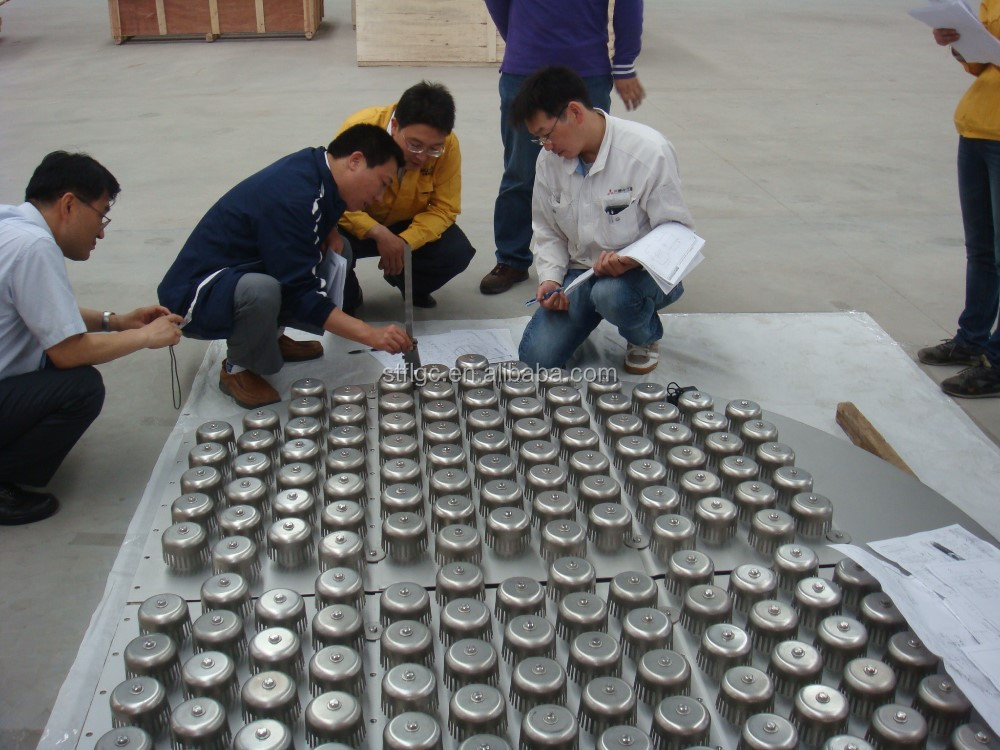

Customer: MITSUBISHI, JAPAN

Brand: SUTONG

Product Name:

Bubble cap trays
U type float valve trays

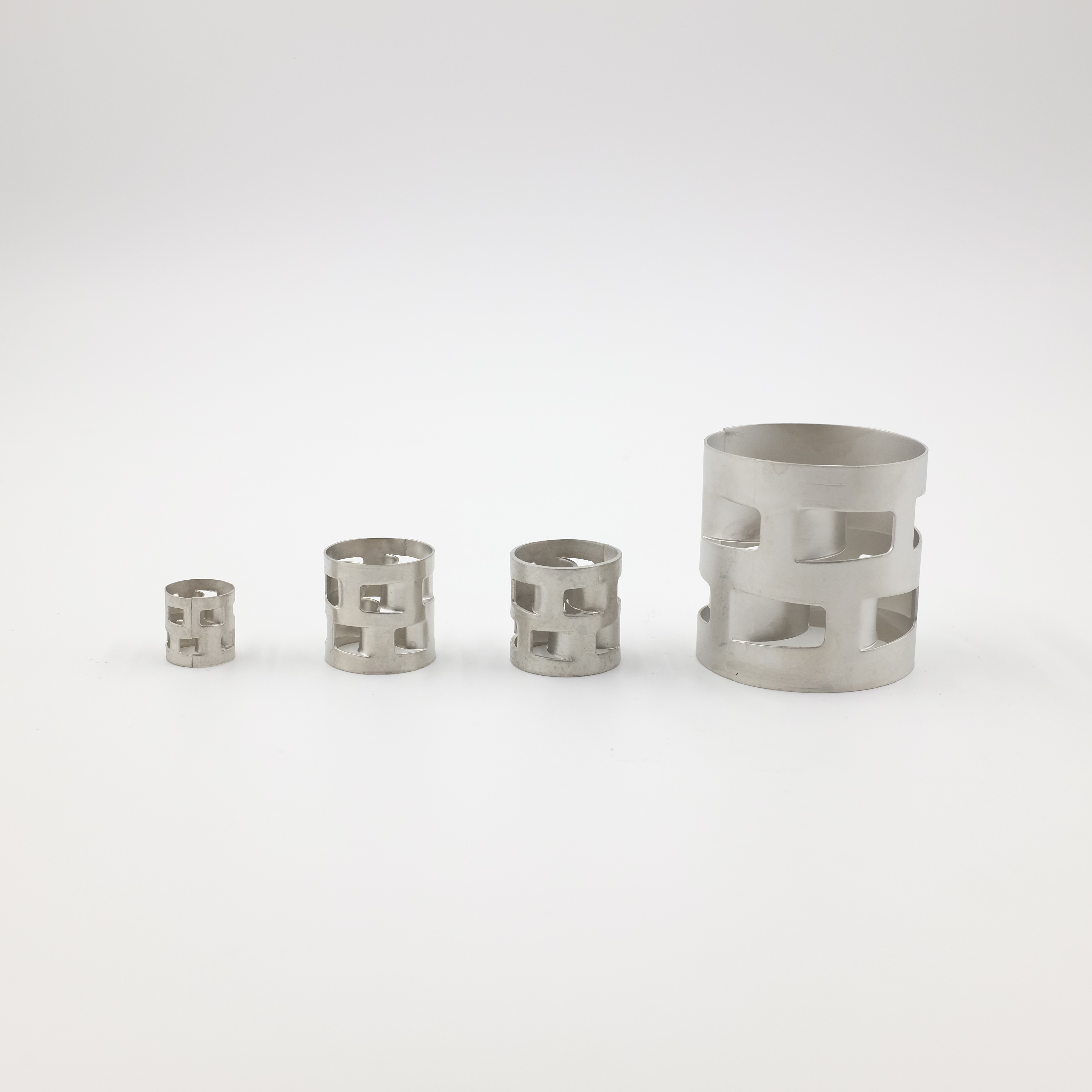

Random packings

Customer: PERSTORP FORMOX, SWEDEN

Brand: SUTONG

Product Name:

Bubble cap trays

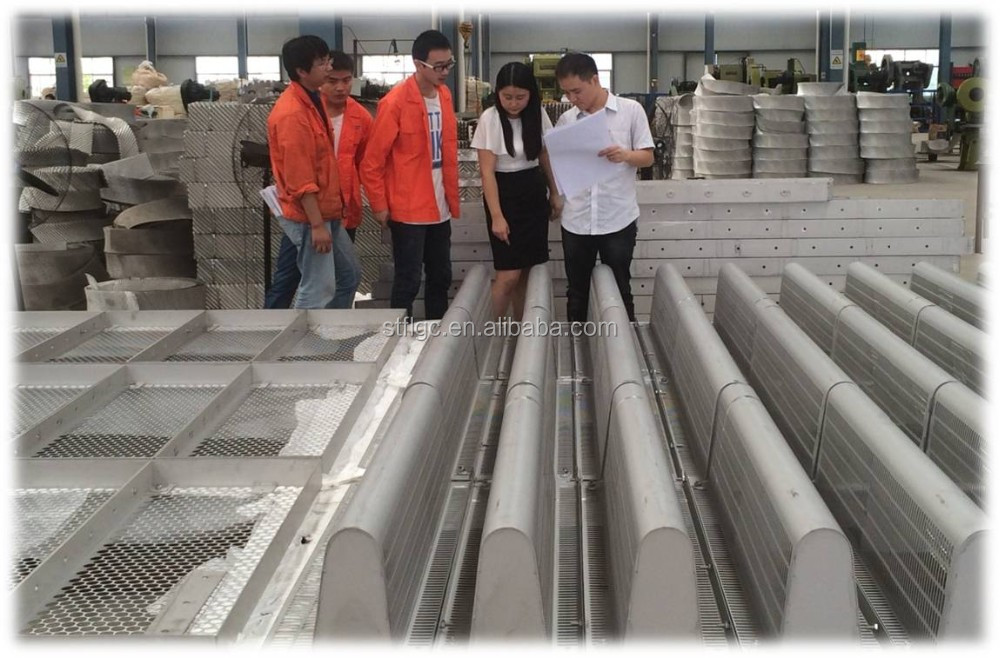

Customer: AIR LIQUID, QATAR

Brand: SUTONG

Product Name:

Structured packings
Plastic random packings
Liquid distributor
Plastic Demister
Bed limiter
Hump Support

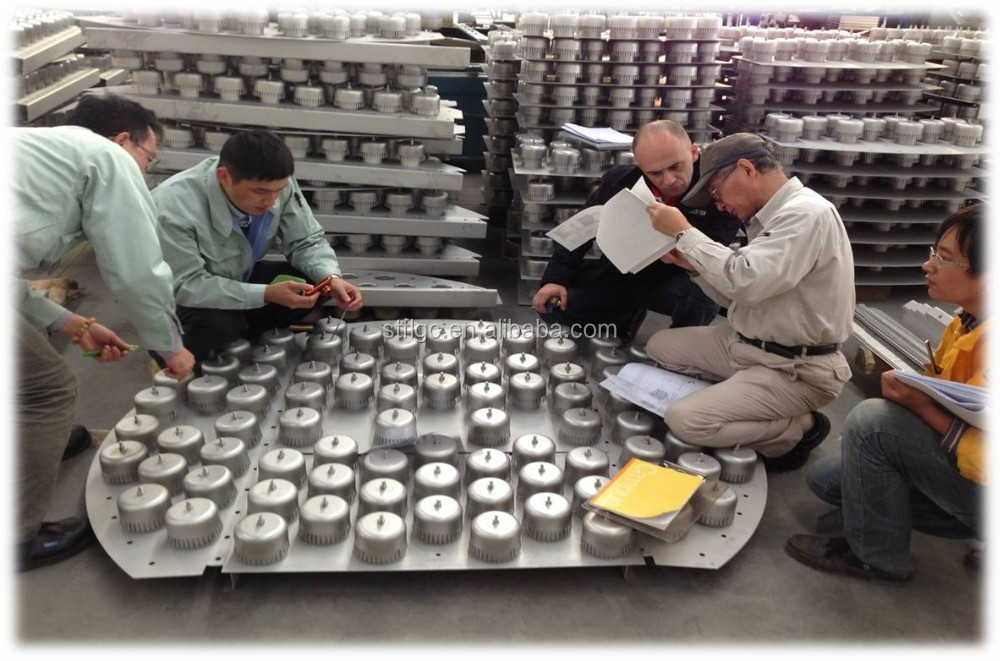

Customer: EK, France

Brand: SUTONG

Product Name:

Structured packings & Random packings
Liquid distributor
Bubble cap trays
Demister & Bed limiter
Hump Support

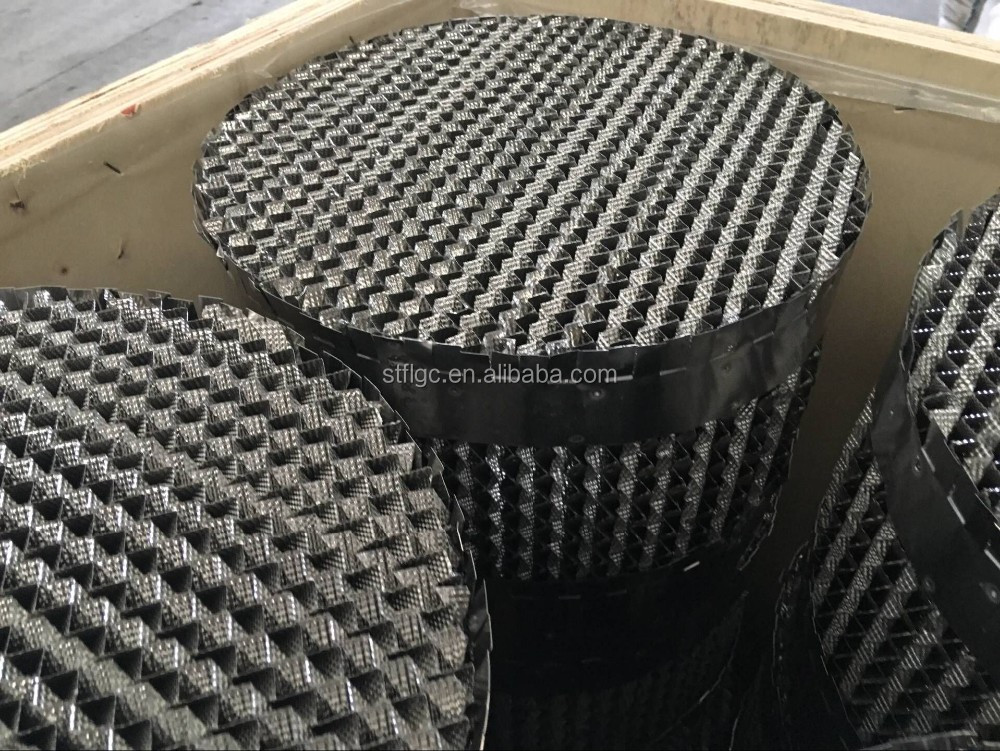

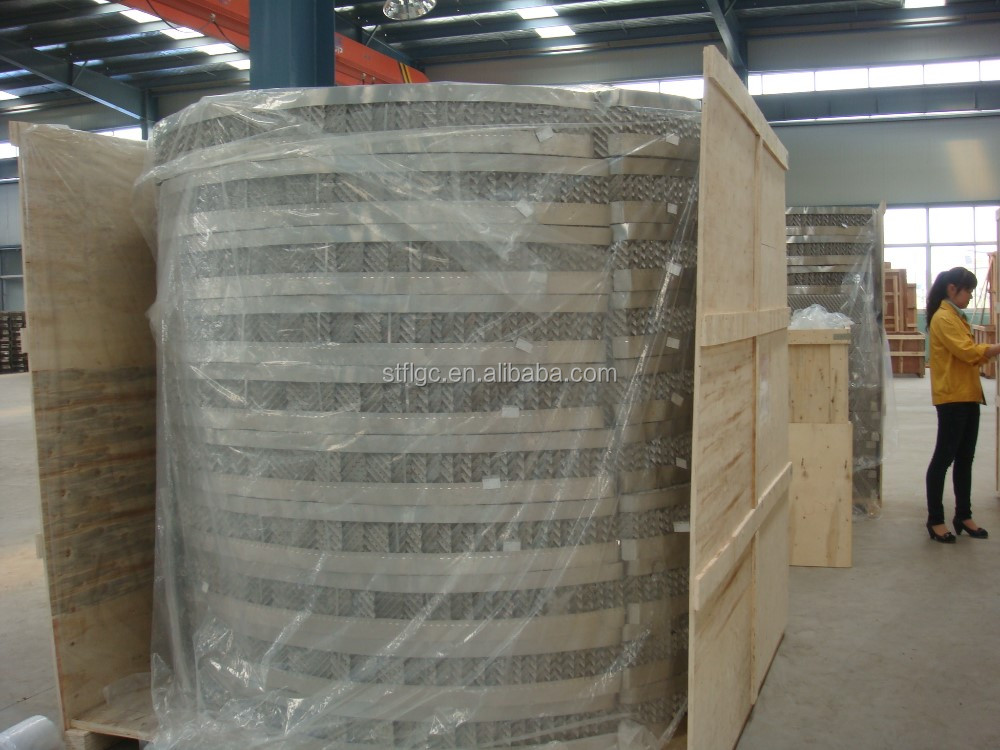

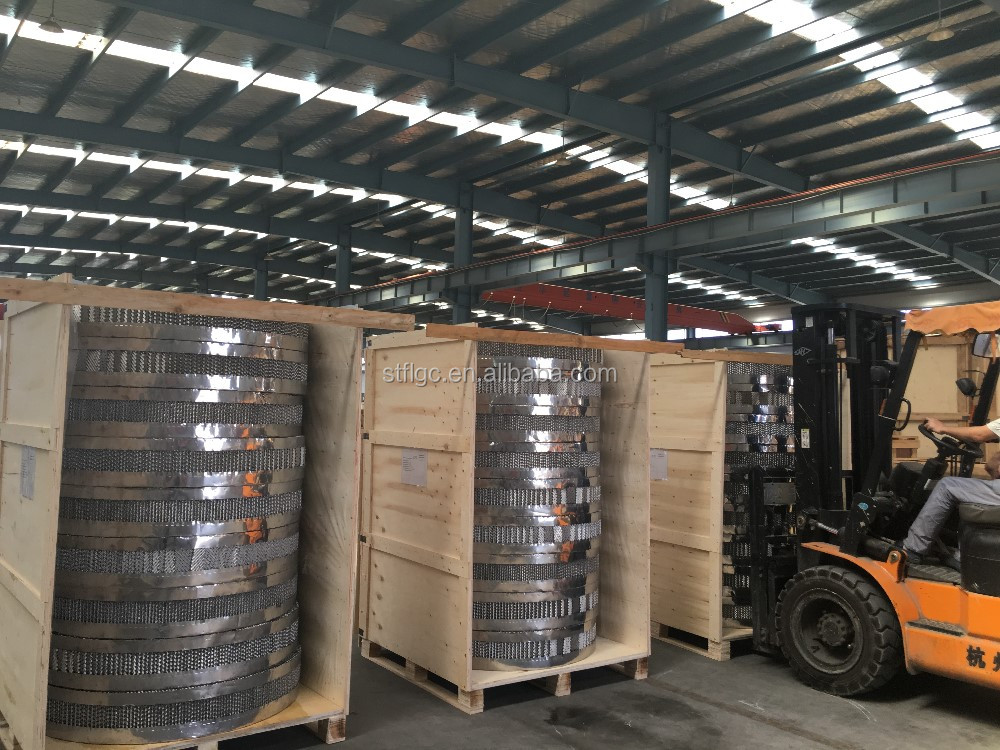

Packing & Delivery

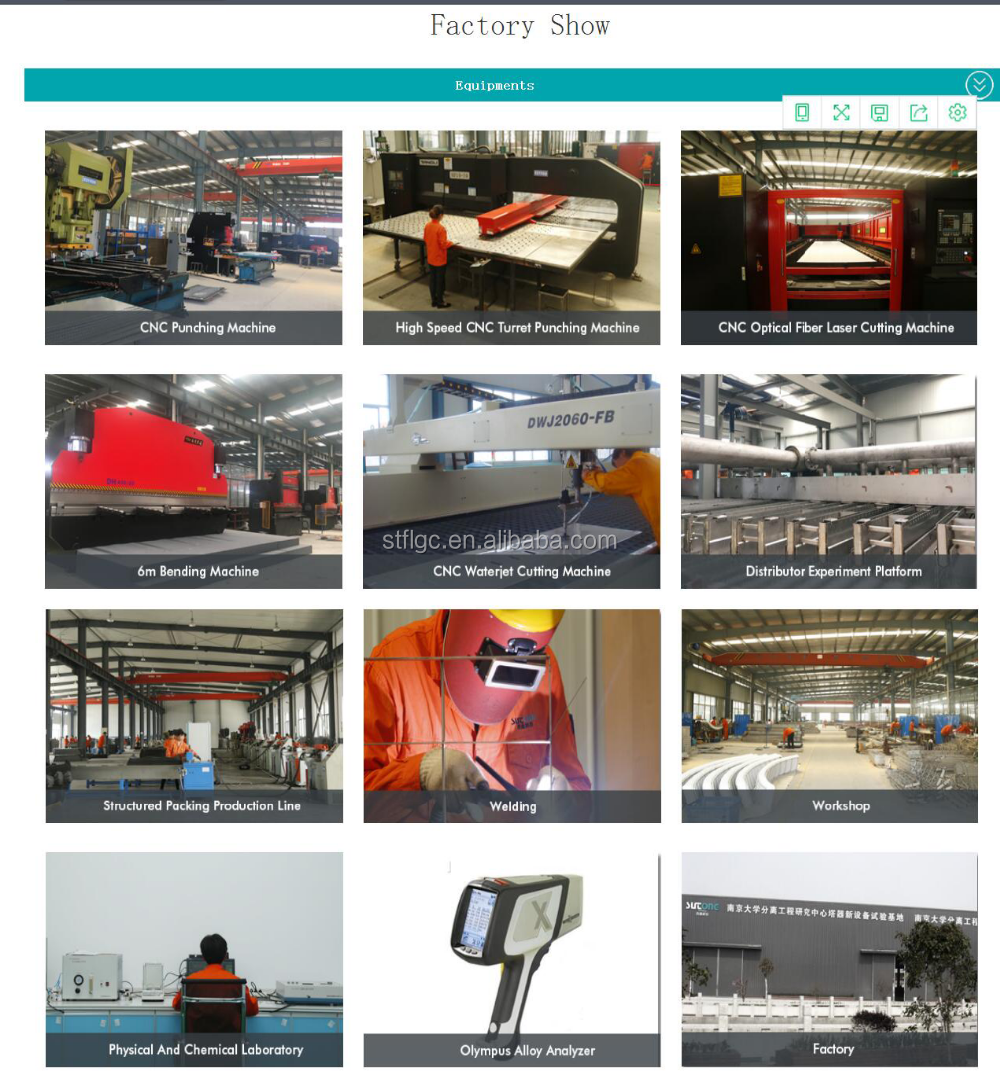

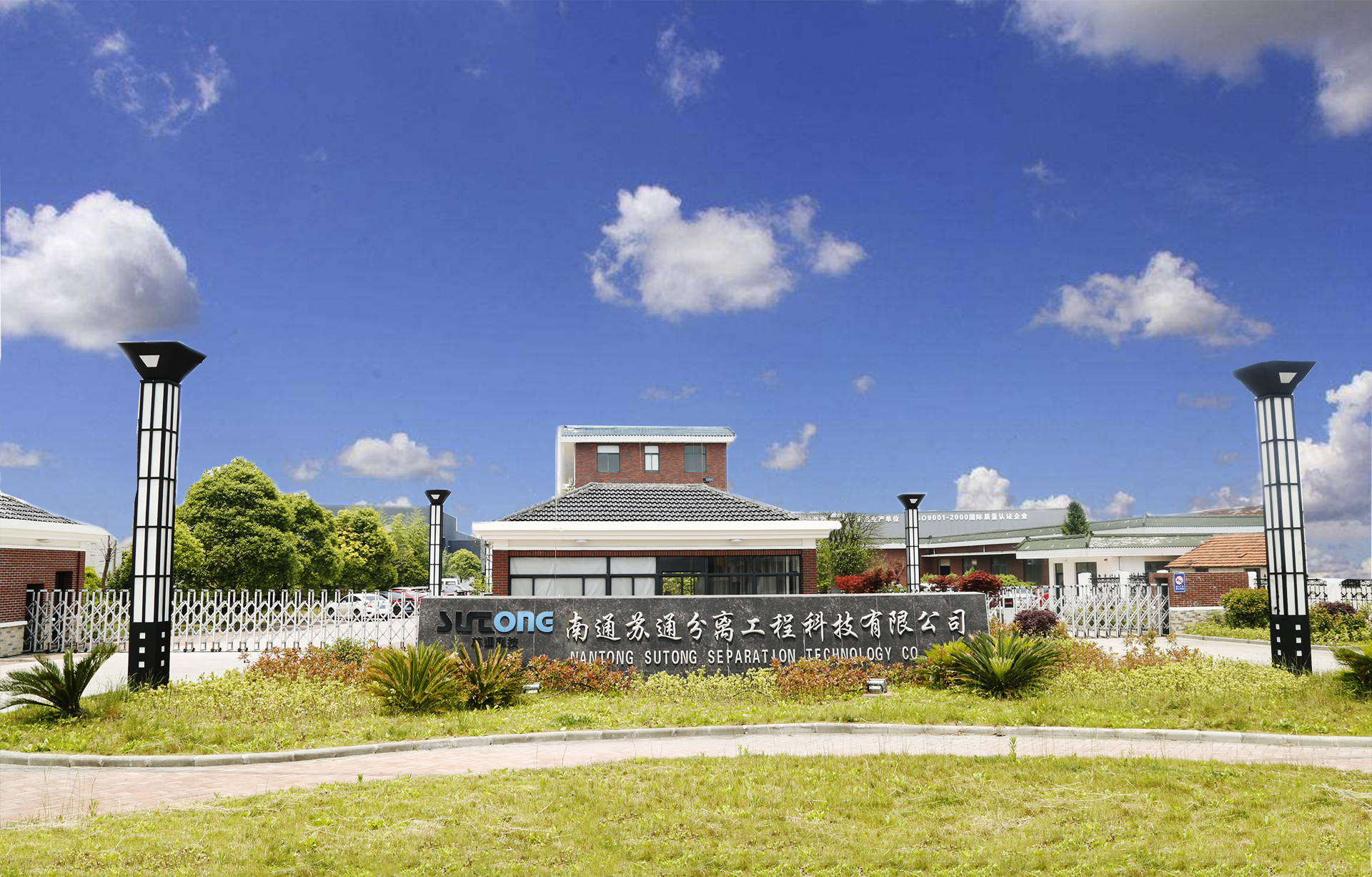

Our Company

Nantong Sutong Separation Technology Co., Ltd. (hereinafter: STT) is a company specialized in the design and manufacture of tower internals, packing, tower trays, and the process of energy saving. We mainly develop the production, test, and engineering service of mass transfer and separation in Chemical, Petrochemical, Refinery, Fertilizer, and Environmental Protection areas. The relevant processes include rectification, absorb, extraction, regeneration, evaporation, stripping, and wastewater treatment of tower separation, also including the design of dust filter and demister in Environmental Protection. We can provide highly professional Engineering & Technology service to solve many difficult engineering problems across various applications.

STT is a national High-tech company, the nominated supplier of Sinopec Group, the nominated company of National Technology Center of Chemical Engineering Design, the research and developing base and the only nominated manufacturer of Nanjing University Separation Division, and the nominated manufacturer of East China University of Science and Technology. We also established friendly cooperation with famous Design Institutes and Scientific Research Institutes.

STT offers complete technical consulting, engineering design, installation, commissioning tests, and turnkey projects, providing lifetime warranties to undertaken projects. We supply our clients with high quality, practical, and highly efficient tower packing, trays, and tower internals at competitive prices, backed by considerate service and rapid market research capability.

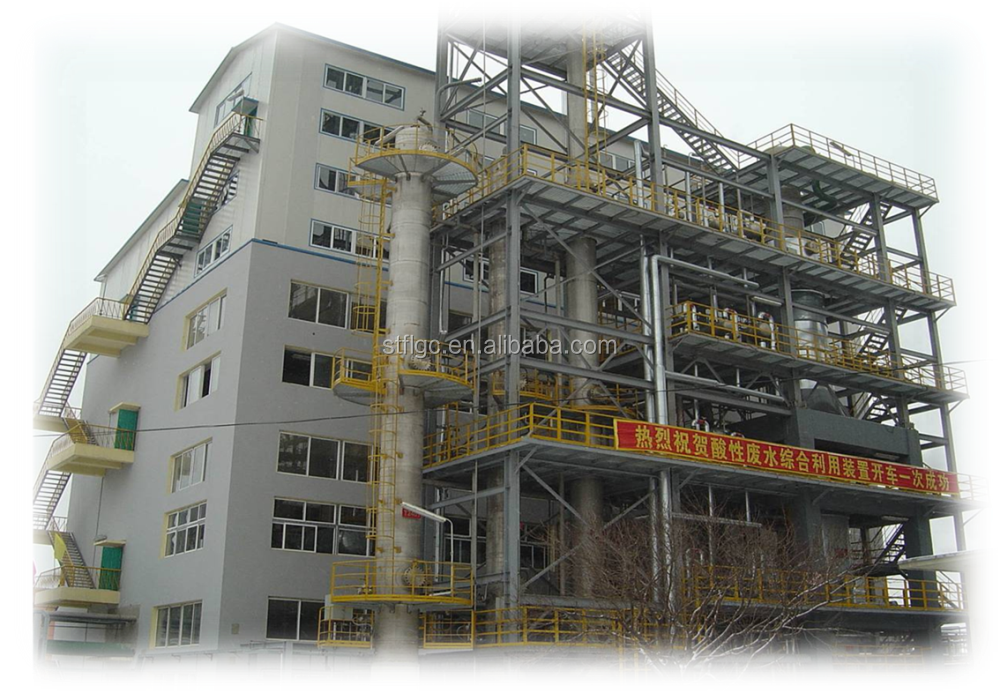

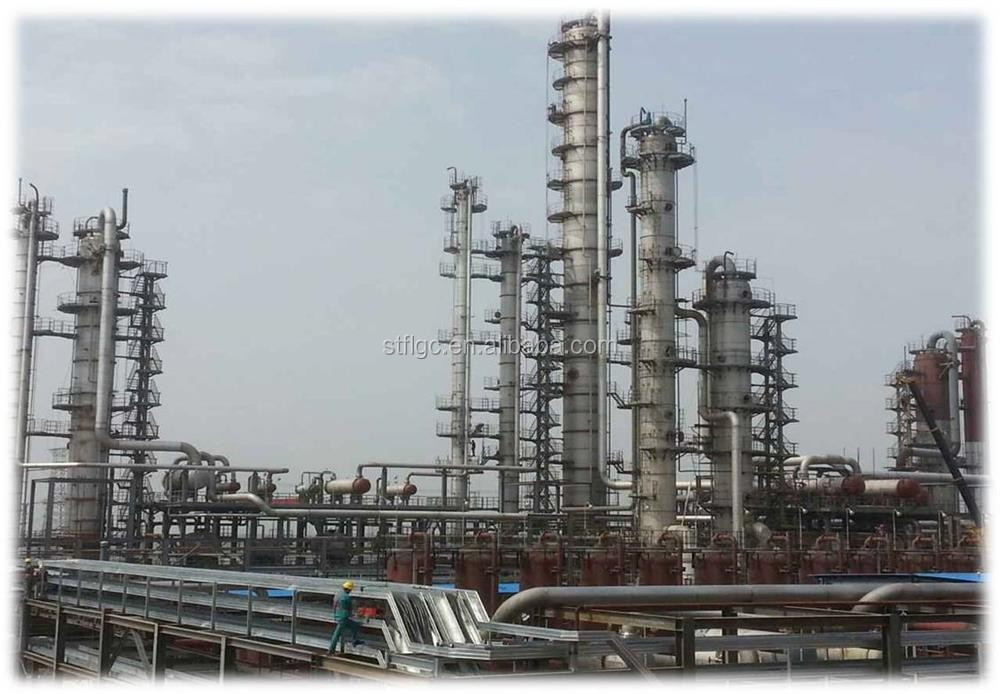

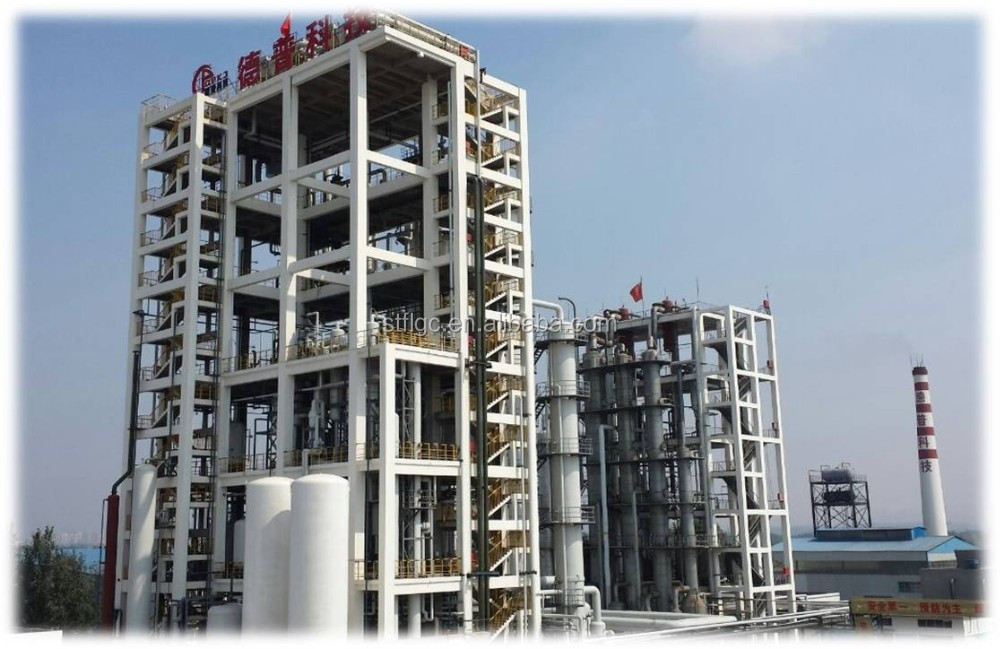

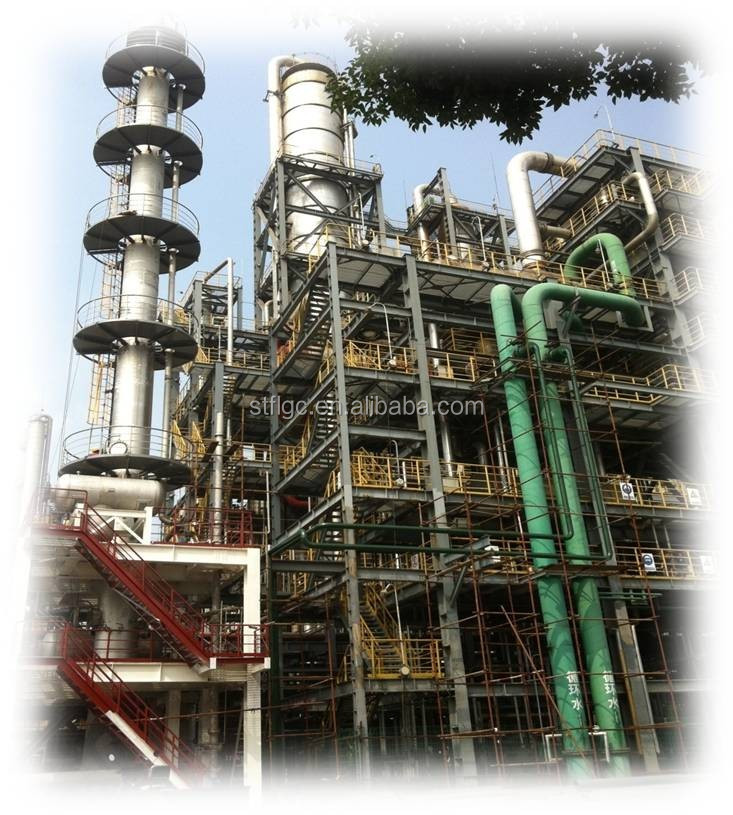

Project Achievements

Our Service

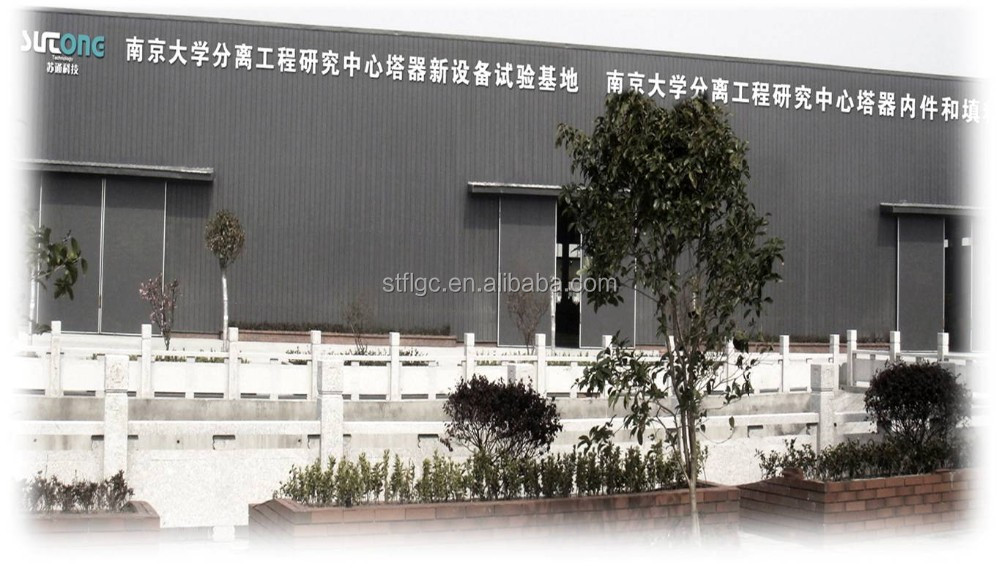

Pre-Sales Service

Inquiry and consulting support.
Sample support.
Chemical process simulation, process calculation, hydraulic calculation, design of tower internals, reconstruction schemes, and more.
Factory visits and facility inspections.

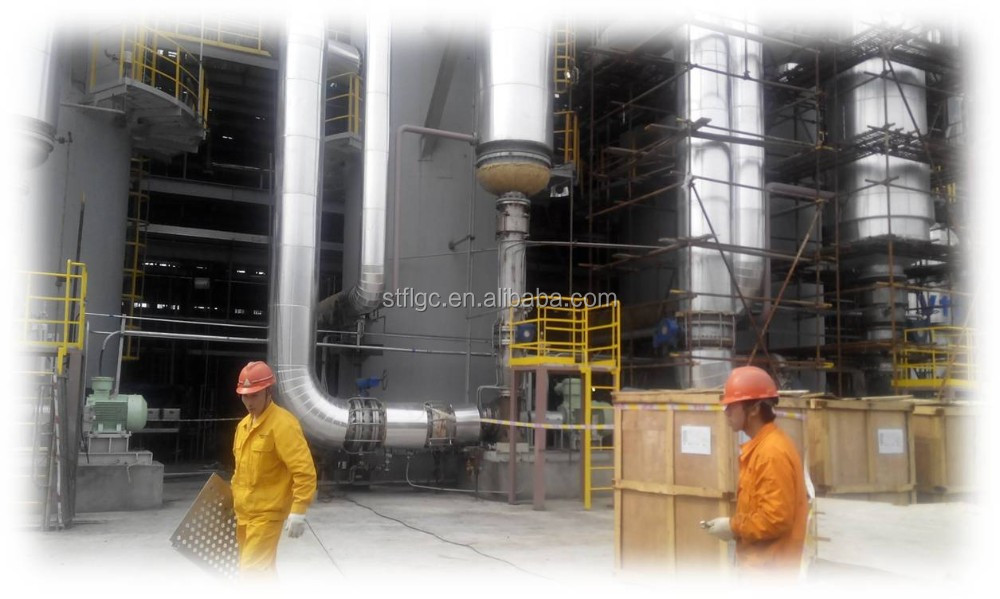

After-Sales Service

Training on installation procedures or direct installation support.
Start-up and commissioning service.
Engineers available to service machinery overseas.
Real-time failure diagnosis, onsite treatment, and continuous operational guidance.

Contact Information

Contact Person: Grace Jiang

Working Experience: 6 years

English Proficiency: ★★★★★

Professional Knowledge: ★★★★★

Response Rate: 98.9%

Mobile / WhatsApp / WeChat: +86 182 52065052

Skype: [email protected]

Website: www.sutongtechnology.com

Frequently Asked Questions (FAQ)

1. What are the key industrial applications for wire gauze structured packing?

Wire gauze structured packing is widely deployed in fine chemical, air separation, petrochemical, and pharmaceutical industries where low pressure drop and high separation efficiency are critical, particularly during vacuum distillation, stripping, and absorption processes.

2. How do ST-CY and ST-BX structured packings differ?

ST-CY provides a higher specific surface area (700 m²/m³) and more theoretical plates (4-6 per meter), making it ideal for systems requiring stringent separation precision. ST-BX features a higher void percentage (95%) and lower pressure drop (1.5 mmHg/m), which delivers higher capacity and larger gas/liquid throughput.

3. Can you assist with column hydraulic calculations and engineering design?

Yes, our pre-sales technical team provides chemical process simulation, comprehensive hydraulic calculation, revamping designs, and custom engineering drawings tailored to your specific mass transfer challenges.

4. Do you support international on-site installation and commissioning?

Yes, STT provides global engineering support. Qualified engineers can be dispatched overseas to oversee installation, conduct commissioning, provide operational guidance, and offer on-site failure troubleshooting.

5. What international quality verifications and standards do your products satisfy?

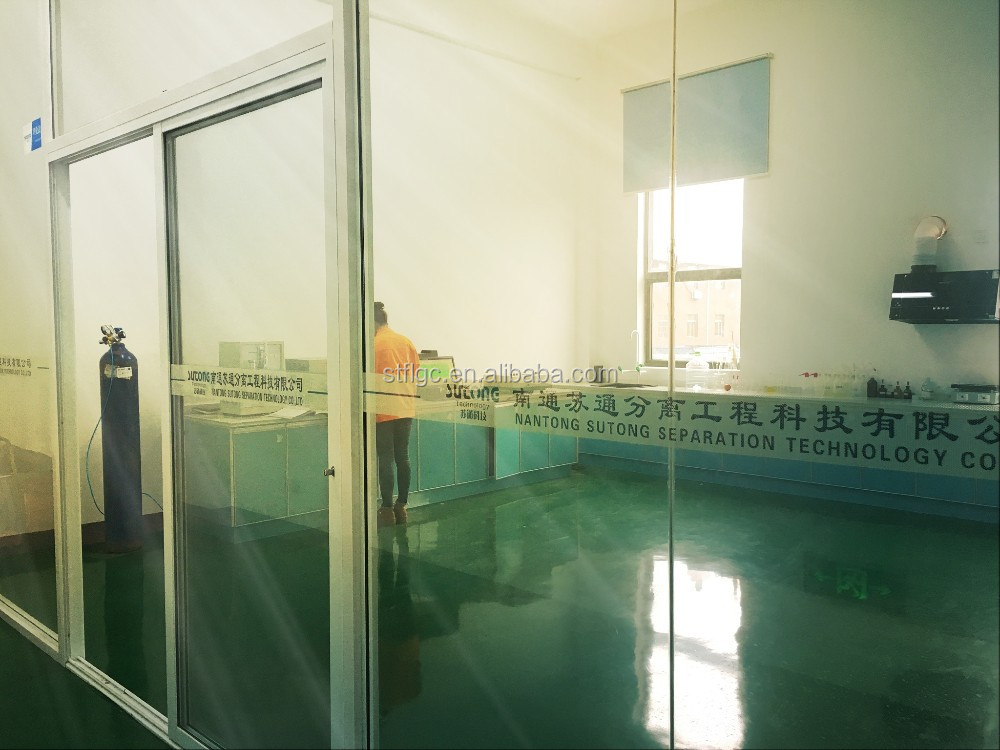

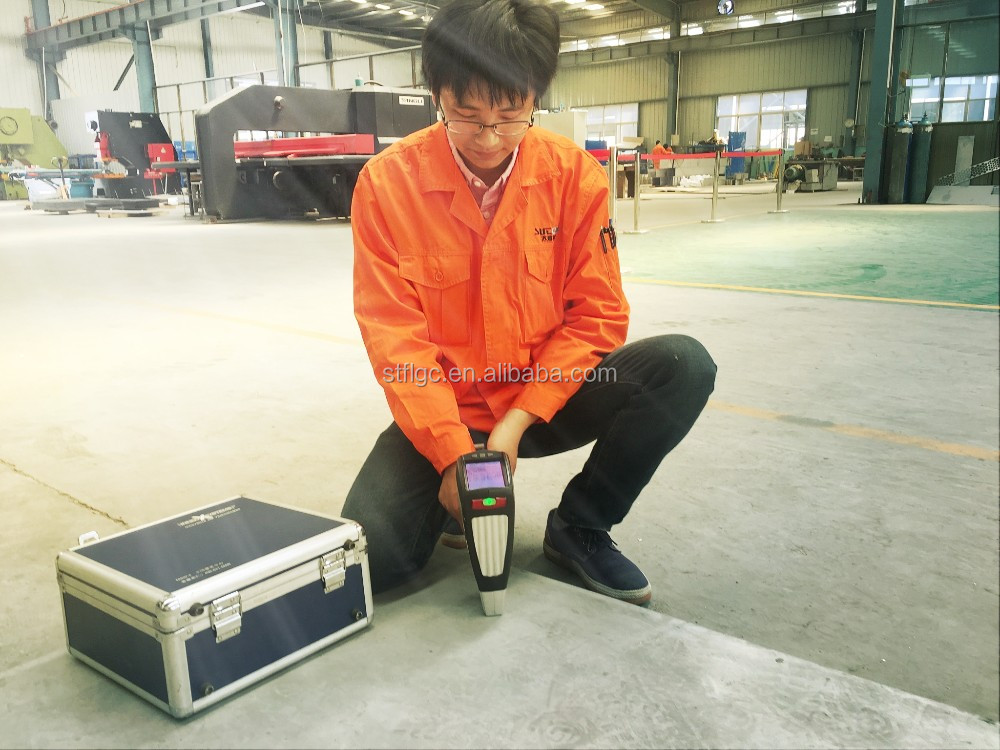

All materials undergo rigorous chemical and mechanical material testing before shipment. We have successfully completed factory acceptance tests for prominent multinational corporations, including Alfa Laval, Mitsubishi, Perstorp Formox, and Air Liquide.

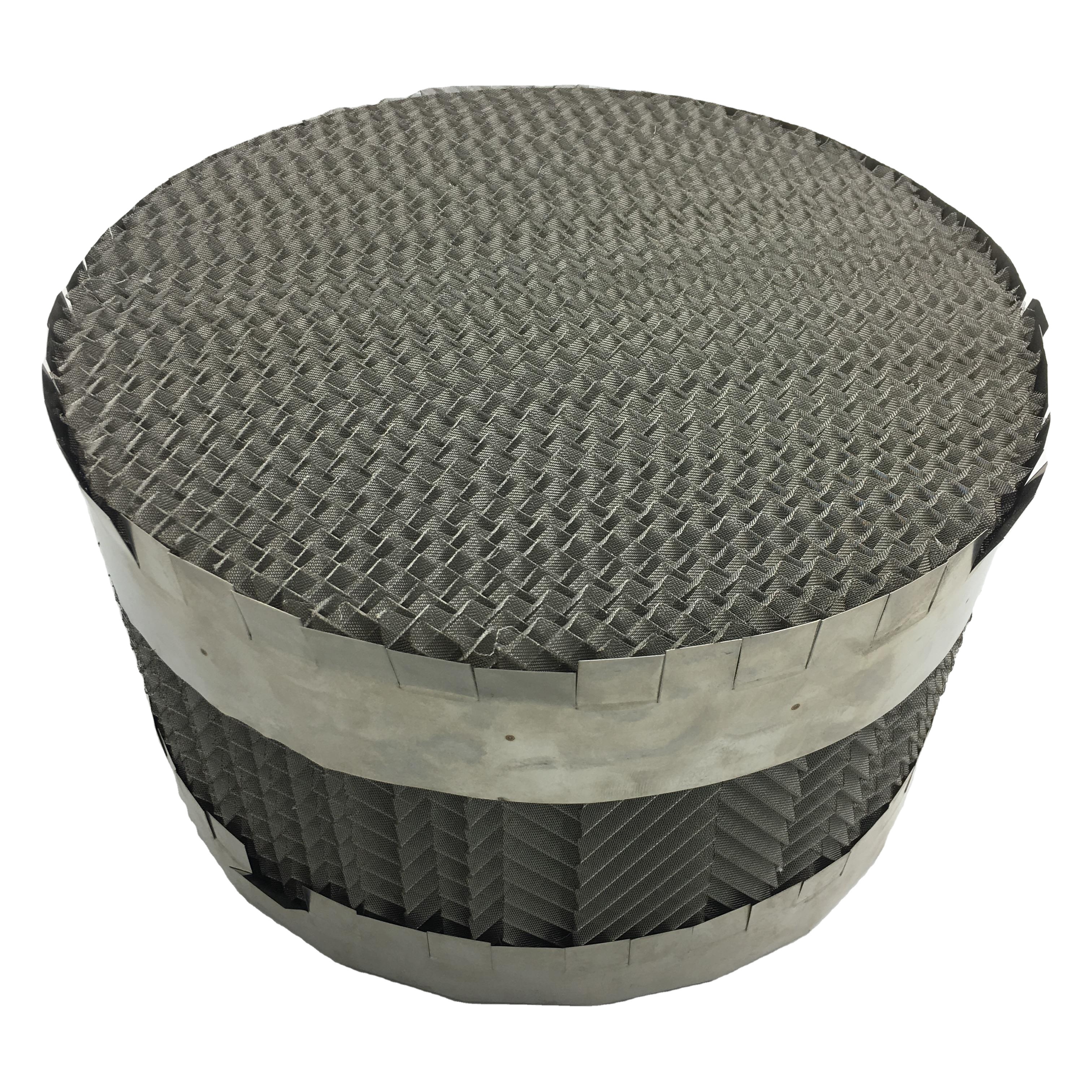

Ss304 BX500 ZWF Wire Gauze Structured Packing for Air Separation
