| Item | Details |
|---|---|

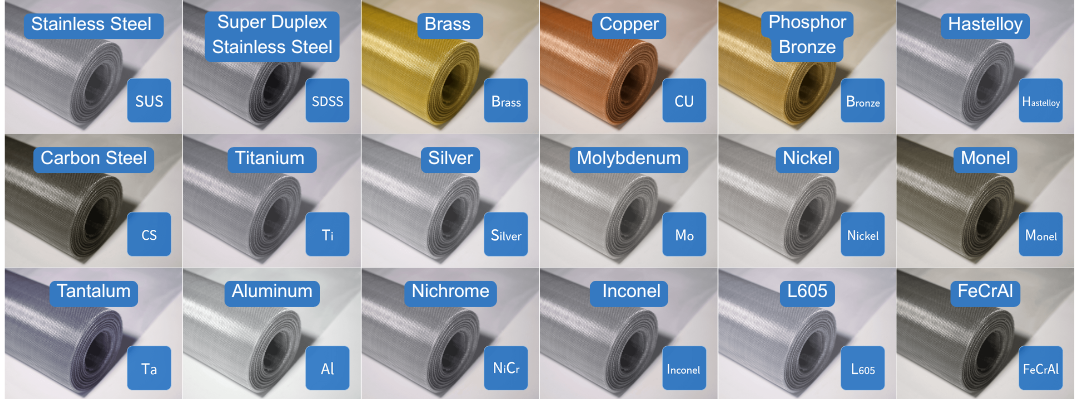

| Material | Stainless steel wires, Aluminum, Titanium, Copper, Monel, Inconel, Nickel, other alloys. |

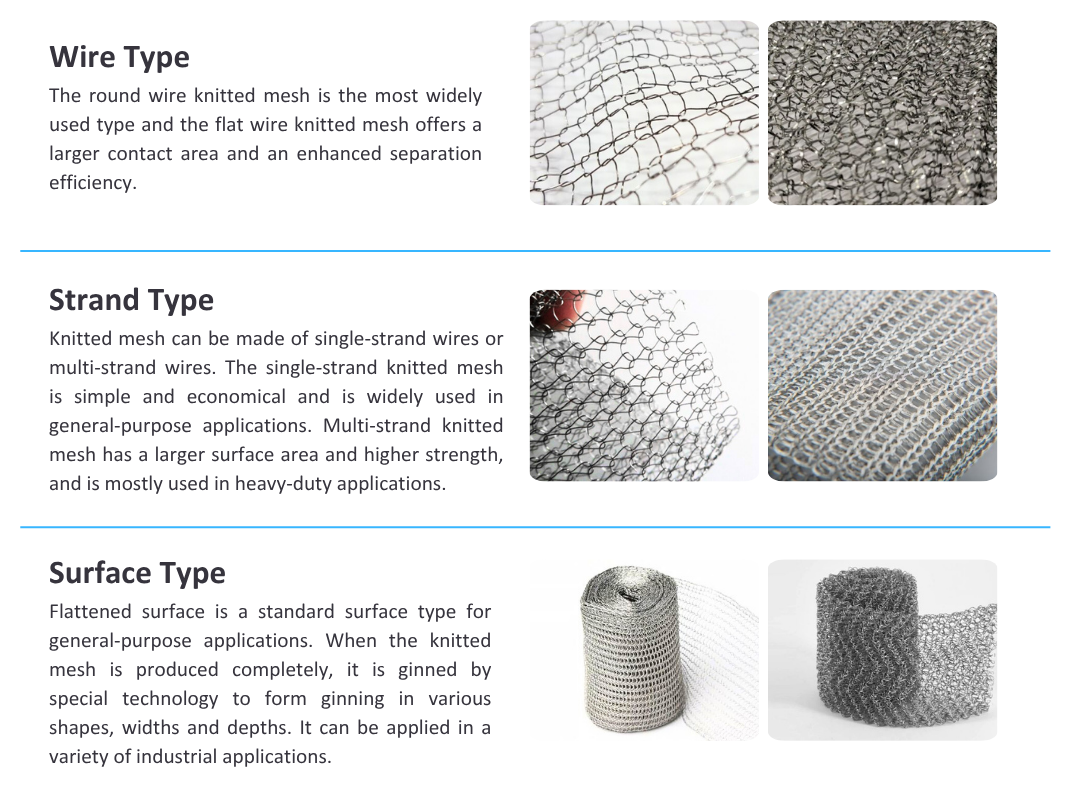

| Wire type | Round wire, Flat wire |
| Strand type | Single-strand type, Multi-strand type |
| Wire Diameter | 0.08-0.3mm |
| Fabric Width | 10-1300mm |
| Size of Mesh | 2-10mm |

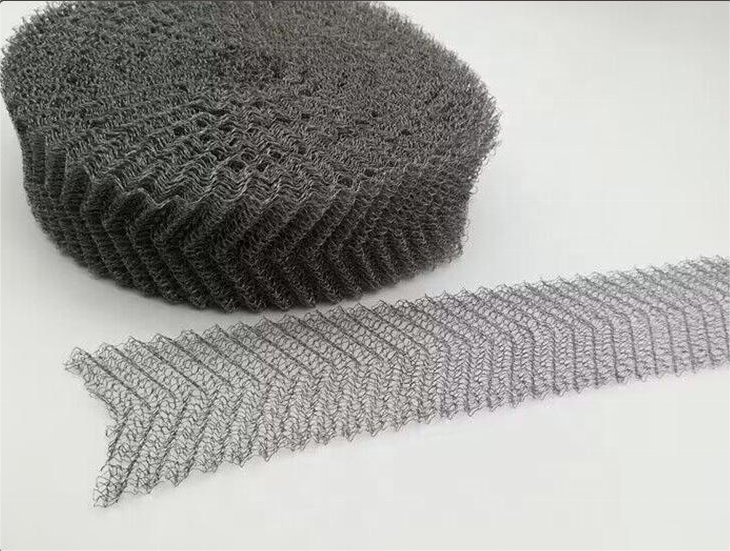

| Surface Treatment | Flattened type, Ginning type |
| Applications | Filtration media, Coverings, RFI shielding tapes and gaskets, Automotive catalytic converters, Vibration and sound reduction, Cleaning mesh for extrusion equipment |

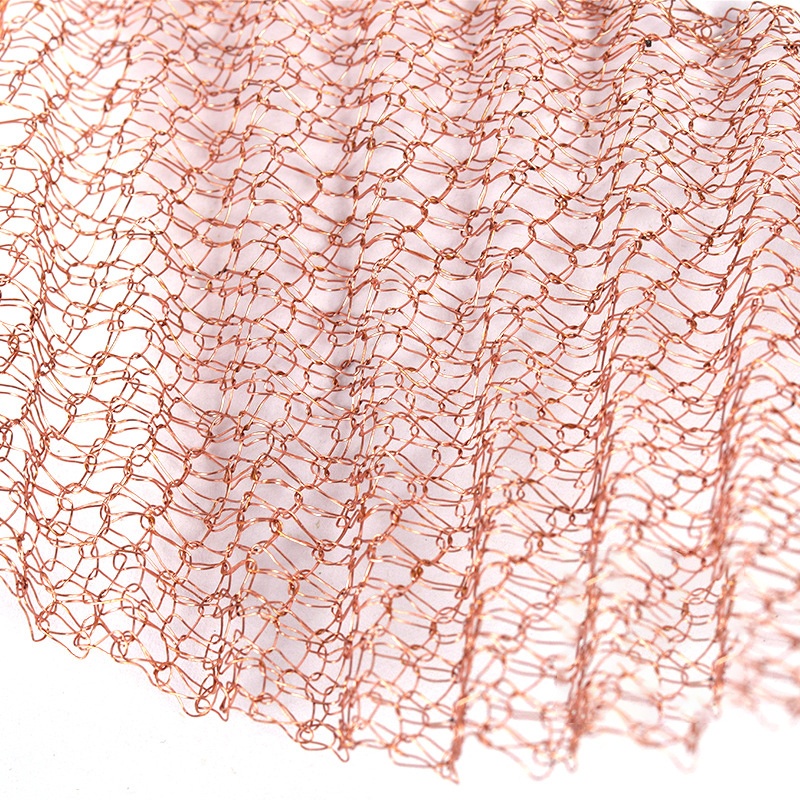

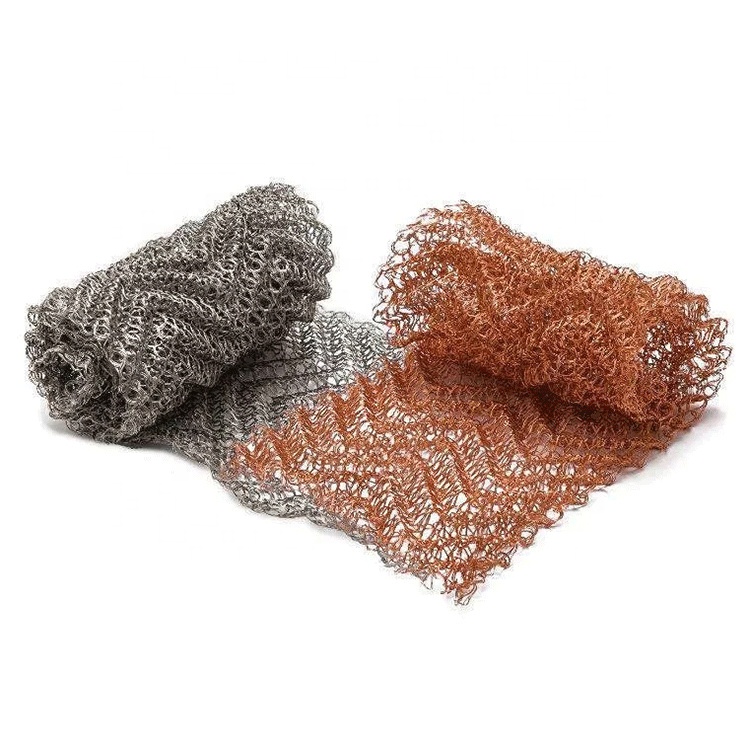

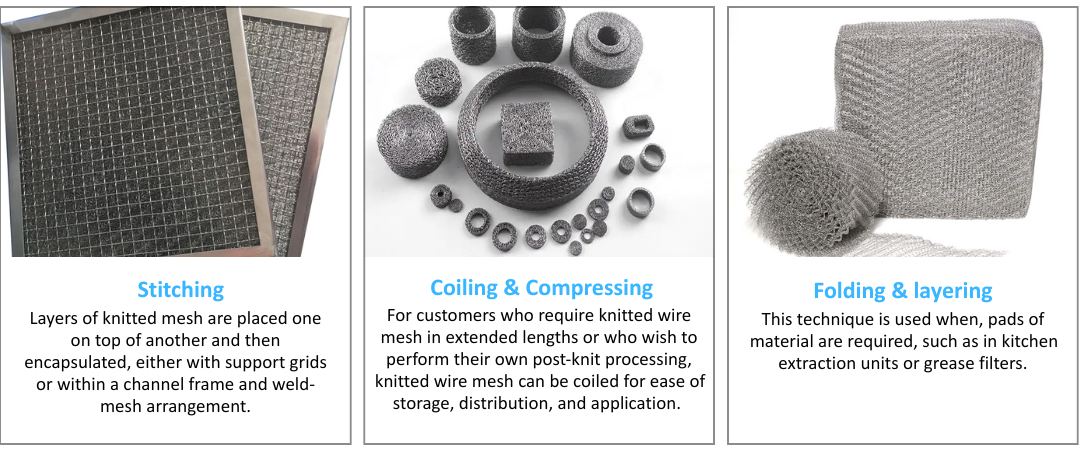

Knitted mesh is a remarkable material that seamlessly blends the traditional art of knitting with the strength and versatility of metal. It can be made of round or flat wires. The round wire knitted mesh is the most widely used type, and the flat wire knitted mesh is used in special applications according to customers' requirements. It can be utilised in its original flat form or undergo further processing through techniques such as layering, folding, coiling, stitching, or compressing. Its flexible, interlocking structure protects sensitive components from damage during operation—even in harsh, high-stress environments. Knitted wire mesh finds utility across diverse industries, serving functions ranging from filtration and protection to insulation and aesthetic embellishment.
*We have more types of mesh than what is shown on the chart. Please feel free to contact us if you are looking for a certain opening size.
| Table 1: Round Wire Knitted Mesh Specification | ||||
|---|---|---|---|---|
| Model | Wire Diameter (mm) | Width (mm) | Stitches/cm (Length) | Stitches/cm (Across Lay Flat) |
| Fine Mesh | 0.08–0.18 | 6–300 | 3.5 | 4.4 |
| Medium-Fine Mesh | 0.16 | 40–600 | 2.4 | 3.5 |
| Standard Mesh | 0.08–0.35 | 30–1000 | 1.6 | 1.9 |
| Coarse Mesh | 0.25–0.40 | 30–1000 | 1.6 | 0.74 |
| Super Coarse Mesh | 0.4–0.5 | 100–350 | 0.5 | 0.5 |
| Table 2: Flat Wire Knitted Mesh Specification | ||||
|---|---|---|---|---|
| Wire Diameter (mm) | Mesh Opening/Loop Size (mm) | Number of Needles | Maximum Width (mm) | Minimum Width (mm) |
| 0.1 × 0.3 | 2 × 4 | 36 | 60 | 55 |
| 0.1 × 0.3 | 4.5 × 4, 2.5 × 4 | 34 | 150 | 100 |
| 0.1 × 0.4 | 4.5 × 5.5, 2.5 × 5.5 | 40 | 150 | 120 |
| 0.1 × 0.4 | 4 × 3.5, 2.5 × 3.5 | 56 | 205 | 180 |
| 0.1 × 0.4 | 4 × 4, 3 × 4 | 65 | 260 | 240 |
| 0.2 × 0.4 | 5.2 × 3.5, 3 × 3.5 | 94 | 420 | 380 |
| 0.2 × 0.4 | 7.5 × 5, 5 × 5 | 102 | 565 | 490 |
| 0.2 × 0.5 | 5 × 4, 2.5 × 4 | 128 | 560 | 470 |

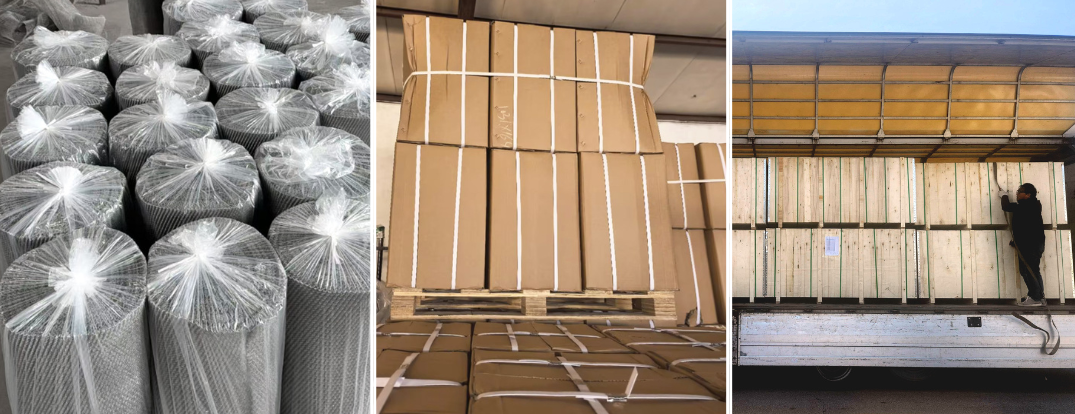

Roll: Wrapped securely in waterproof film + sturdy wooden crate.
Sheet: Reinforced cardboard box + inner foam protection.
Lead Time: 15-30 days after order confirmation (depending on quantity).
Logistics: Sea freight, Air cargo, and Express courier options available.

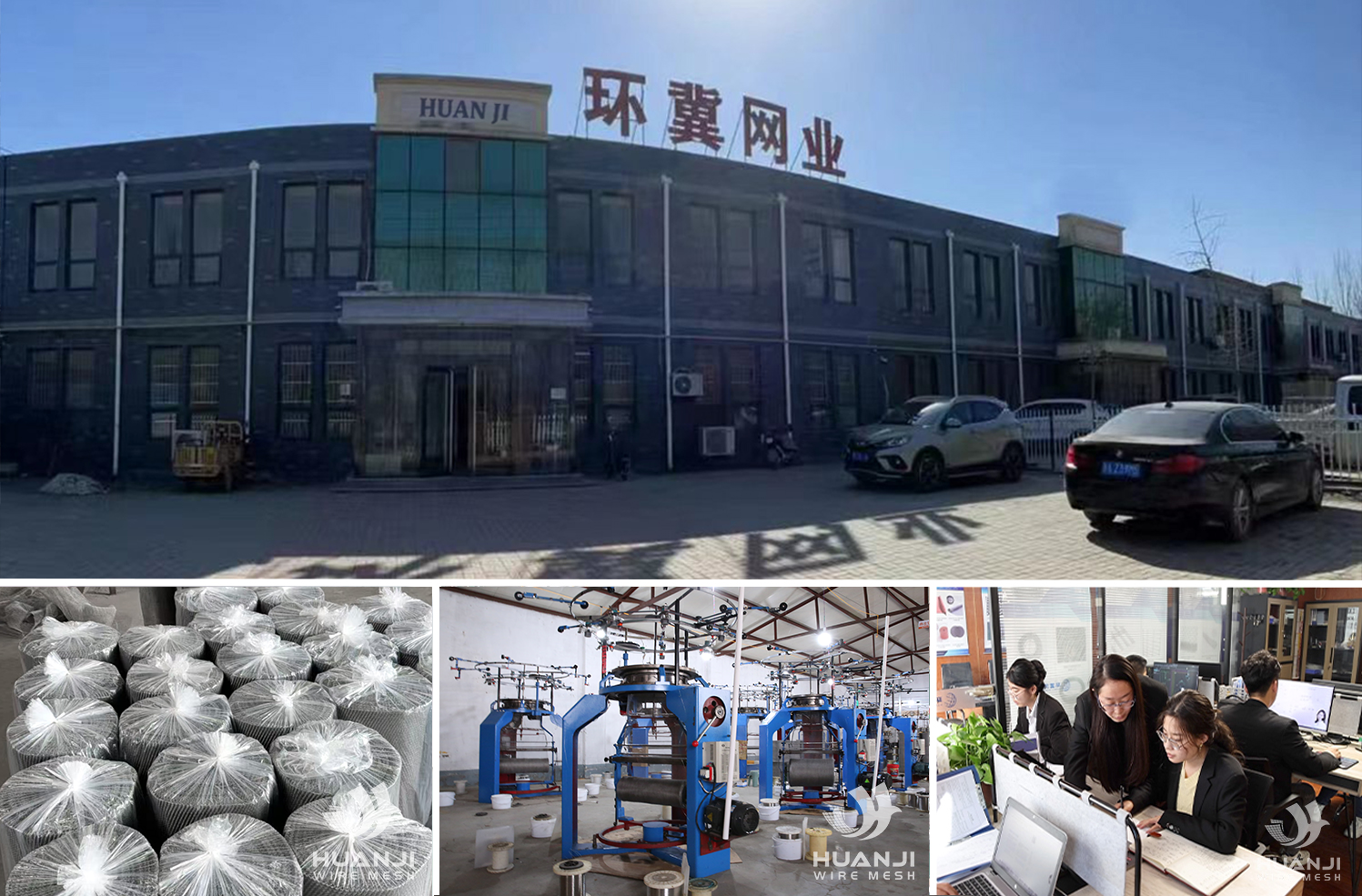

HUANJI was established in 1999. It is now developed into a focus on production, development, and sales of stainless steel wire mesh as one of the modern science and technology enterprises. Our company has 6 mature production lines, a 42-person R&D team, a 24-hour online service, an experienced sales team, a strict inspection department, and a perfect after-sales service system. With high-quality raw materials, a clean and tidy production environment, and strict quality control, we will provide you with the highest quality products. We are committed to becoming the largest and most influential company with you through high-quality products, competitive prices, stable supply capabilities, reliable and timely delivery, and perfect after-sales services, and contribute to global economic construction.
